INSTALLATION

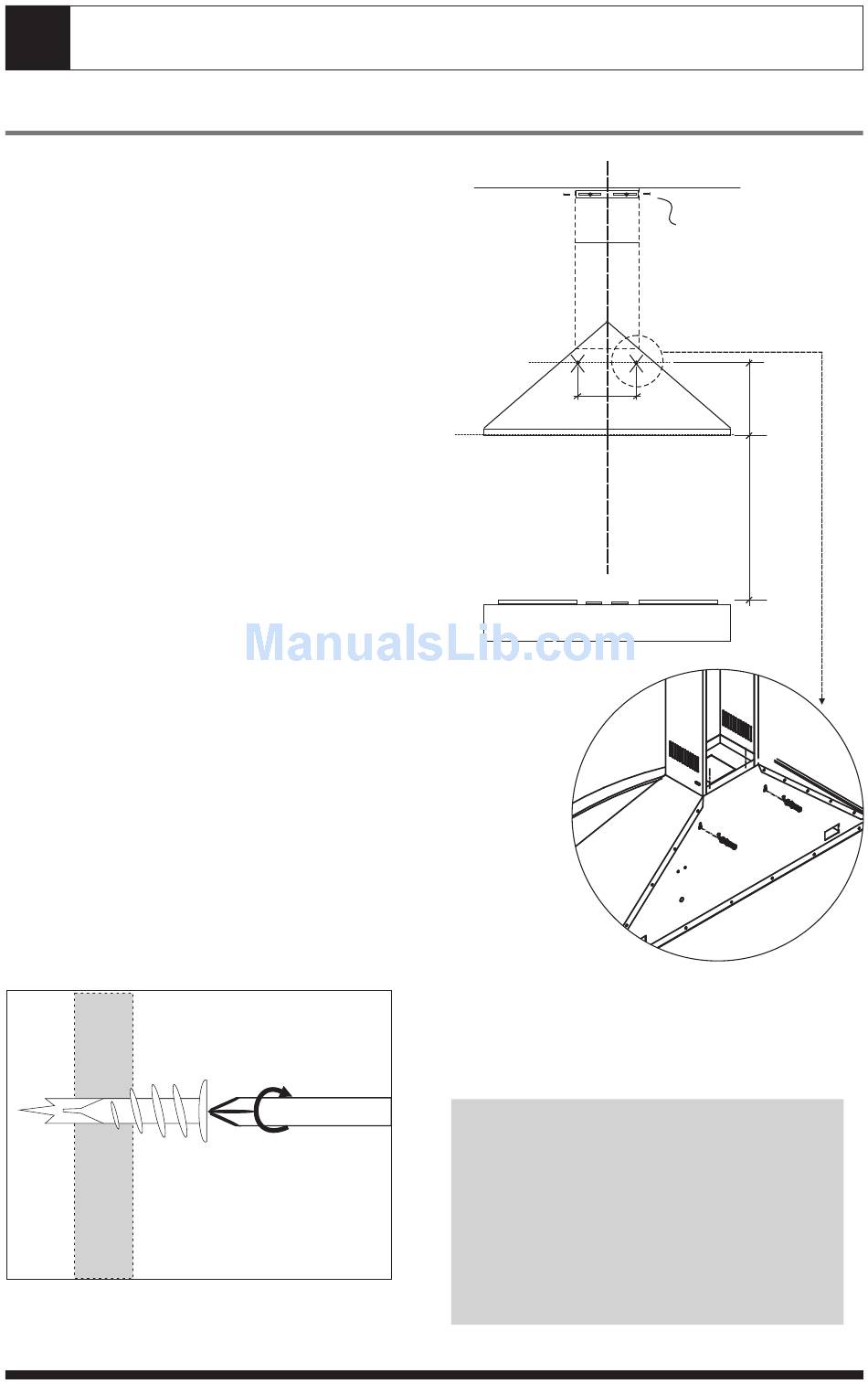

Mounting the Range Hood
1. Measure from range top to hood bottom
(24" min) Level and mark line
2. Plum and mark center line.
3. Mark mounting height line
from line A)
4. Mark mounting spread from C/L (9-
7/8").
5. Fasten E-Z Anchors to wall (see below)
as marked.
6. Fasten screws provided onto EZ Anchors,
do not fasten screws all the way.
7. Hang hood onto screws and hand tighten
(fig A).
Mounting the Duct Cover
1. Center and attach duct cover mount
bracket on wall below ceiling or soffit.
2. Fasten telescopic duct covers onto hood
and bracket.

EZ ANCHORS

INSTALLATION
A
.
B
. (9-3/4"
A
C/L
B
9-7/8"
C/L
Tap EZ anchor tip into marked drywall
locations, turn with screwdriver until seated
flush.
Note: Whenever possible, the hood should
be secured to wall studs.
Use EZ anchors provided only on hollow
drywall applications (minimum drywall
thickness ½"). If a stud or wood surface is
present, fasten anchors with screws directly
into stud or plywood. For all other wall
types (concrete, brick, tiles etc.), use
appropriate anchors for mounting.
Duct Cover Bracket
9-3/4"
24" min
fig. A
