Related Manuals for Zephyr ZPY-E30(S,B,W)
Summary of Contents for Zephyr ZPY-E30(S,B,W)

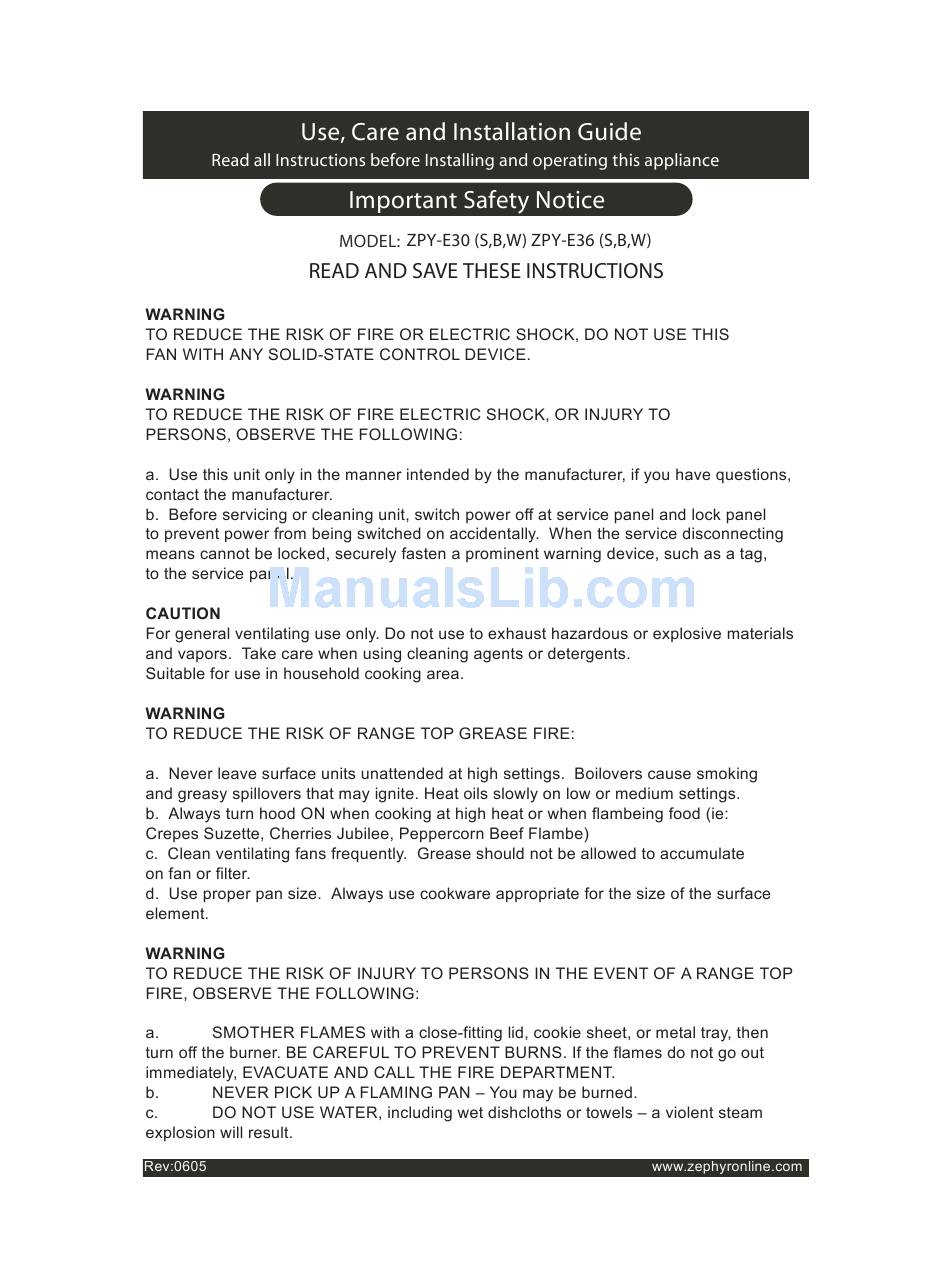

- Page 2 ZPY-E30 (S,B,W) ZPY-E36 (S,B,W)
-
Page 3: Table Of Contents
CONTENTS INSTALLATION Mount heights & clearance Ducting Specifications Mounting the hood & electrical FEATURES & CONTROLS Controls & features MAINTENANCE Cleaning Lights replacement WARRANTY Coverage & exceptions... -
Page 5: Installation
INSTALLATION DUCTING WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,attics or garages. All exhaust must be ducted to the outside. Use Metal ductwork only. Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or DuctTape. Some Ducting Options: side wall cap side wall cap... -
Page 6: Specifications
INSTALLATION SPECIFICATIONS 3" (6" on 36" models) 10-1/2" 5-1/2" 1/2" Elec. K.O. 2-5/8" 5" 1" 4" 9" 30"or 36" 19-3/4" 3/4" 6-3/4" 1/4" to 4" 4-1/8"... - Page 7 INSTALLATION MOUNTING THE RANGEHOOD ELECTRICAL WARNING All Electrical work must by performed by qualified electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances.
- Page 8 INSTALLATION MOUNTING THE RANGEHOOD 1. This range hood is mounted under a kitchen cabinet unit. 2. Select preferred duct location on rear or top of unit. For ductless conversion, no ducting is required. 3. An optional spacer plate is provided to cover the gap between the back of the hood and the wall.
- Page 9 INSTALLATION MOUNTING THE RANGEHOOD 9. Fasten mounting screws into underside of mounting location, and reposition hood into place. 10. Hang hood onto mounting screws and hand tighten. 11. For ductless conversion, the interior cover plate must be unscrewed, repositioned and re-screwed into alternate position as shown.
- Page 10 INSTALLATION DUCTLESS CONVERSION Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a "purifying" hood rather than an exhaust hood. Fumes and exhaust from cooking is drawn and filtered by a set of optional Carbon Filters. The air is then purified and re-circulated back within the home.
-
Page 11: Controls & Features
CONTROLS & FEATURES CONTROLS & FEATURES Lights On/Off Speed Selection Lights On/Off Turn lights on or off by moving this switch. Speed Selection This switch controls the speed of the blower. The first position is low speed, the second is medium speed, and the third is high speed. -
Page 12: Maintenance
MAINTENANCE CLEANING Surface Maintenance: Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. comet powder scrub, EZ-Off oven cleaner), or steel wool/scoring pads which will scratch and damage surface. For heavier soil use liquid degreaser such as 'Formula 409' or 'Fantastic' brand cleaner. After cleaning, you may use non abrasive stainless steel polish/ cleaners such as 3M or ZEP, to polish and buff out the stainless luster and grain. - Page 13 MAINTENANCE LIGHTS Replacing Light Bulbs CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise.
-
Page 14: Warranty
WARRANTY TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please keep a copy of your dated proof of purchase (sales slip) in order to obtain service under warranty. One Year Service Repair Warranty: For one year from date of original purchase, we will provide free of charge, service labor to repair any failed parts or components due to manufacturing defects. - Page 15 TO OBTAIN SERVICE UNDER WARRANTY or any Service Related Questions, please call: 1-888-880-8368 Have your product proof of purchase with date ready for warranty issues. Or write to: Zephyr Corporation Service and Warranty Department 395 Mendell Street San Francisco, CA 94124...
