User's
Manual

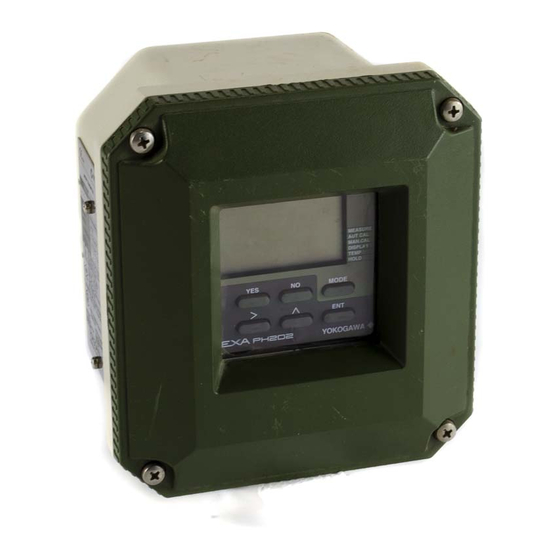

Model PH202G [Style: S3], PH202S [Style: S3]
2-wire Type pH/ORP(Redox)
Transmitter
IM 12B07D02-01E
IM 12B07D02-01E
11th Edition
