User Manual
Model No.: CSAZ‐3000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for AZZA Fusion 3000

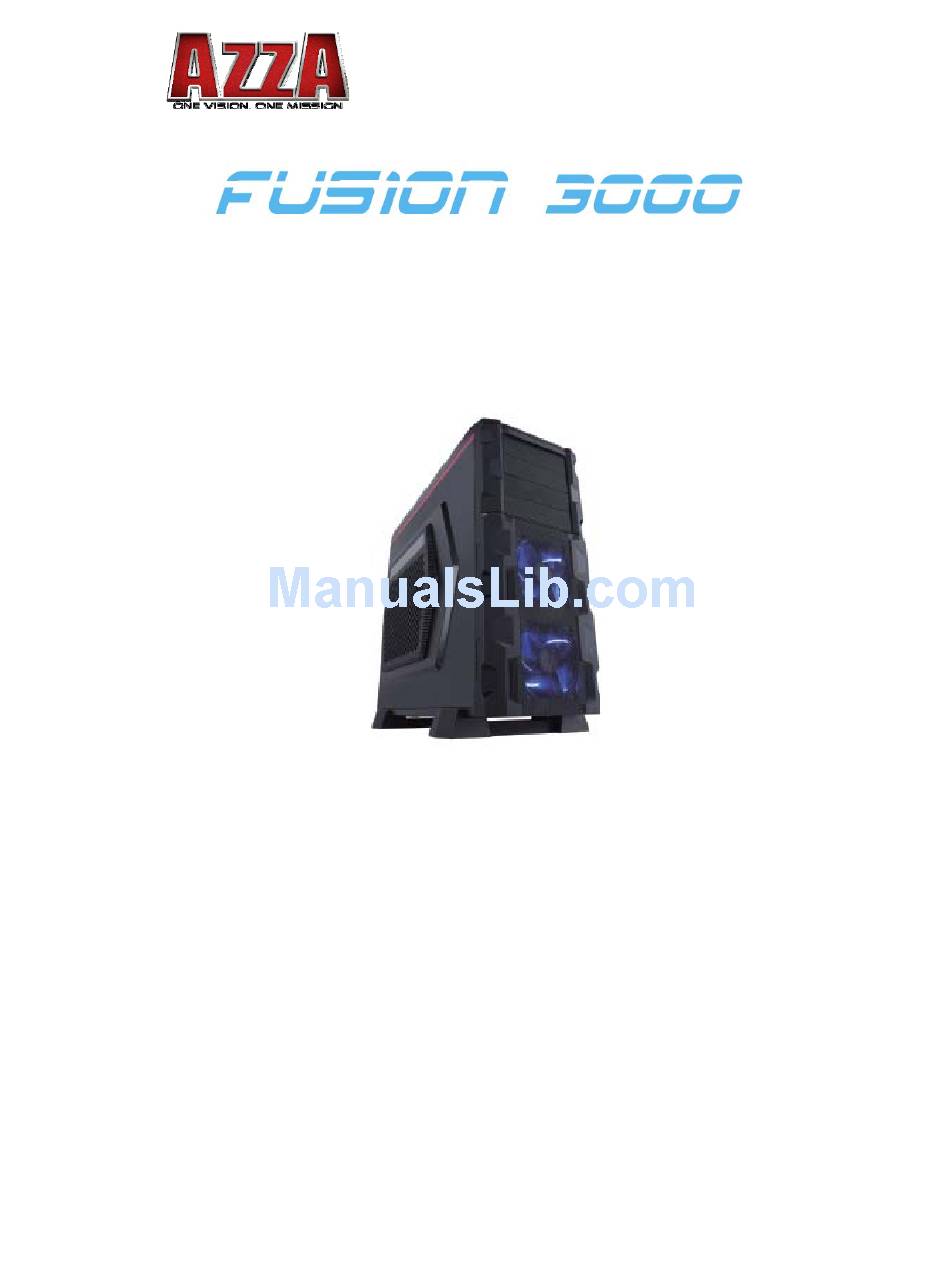

  • Page 1 User Manual  Model No.: CSAZ‐3000 ...
  • Page 2: Table Of Contents

    Table of Contents  Chapter 1. Product Introduction  Specification…………….……………………………………………………….….    03  Mechanical Diagram …………………………………………………………….    04  Accessories…………………….……………………………………………………..    05  Chapter 2. Installation  Side Panel Disassembly………………………………………………….….……    06  Motherboard Installation……………………………………………….….…..    07  External 5.25” Device Installation………………………………….….…….    08  External 3.5” Device Installation.........      09‐10  External 2.5” HDD Installation………..……………………....    11  Power Supply Installation............    12  Fan Installation on the Side Panel ……………….…………..………..    13‐14  Fan Installation on the Top Plate ……………………….…………..……….    15  Bottom Fan Installation (Optional) …………………………..…………….    16  Water Cooling Installation ...
  • Page 3: Chapter 1. Product Introduction

    Chapter 1.    Product Introduction    Model:     Model Name:  FUSION 3000  Model Number:  CSAZ‐3000  Spec:     Type:  ATX    Full Tower    Color:  Black/Black (inside chassis)  Material:  SECC  Side Panel Window:  Yes  With Power Supply:  No  CPU Cooler Compatibility:  up to 190mm  Motherboard Compatibility:  XL‐ATX,E‐ATX, Full ATX, Micro ATX,    Power Supply Locations:  rear bottom      Expansion:     External 5.25" Drive Bays:  4  External 2.5" Drive Bays:  4x Easy Swap 2.5" slots  Internal 3.5" Drive Bays: ...
  • Page 4: Mechanical Diagram

     ...
  • Page 5: Accessories

    Accessories  ‐ Screw bag x 1  ‐ Stand with rubber pad x 2  ‐ User Manual x 1    Standoff  Screw for  Screw for  Screw for HDD  for M/B    3.5” HDD    2.5” HDD  and M/B  4.75H‐6#*6.5H  6*5KM  3*5KM  6#*5B‐C          15PCS  24PCS  24PCS  15PCS  Screw for  Screw for  Cable Tie  Stand  Power Supply    L80mm      M4*10  6#6HW‐TC ...
  • Page 6: Side Panel Disassembly

    Chapter 2.    Installation Guide  Side Panel Disassembly 1.    To take off the side panel of the bottom unit, remove the thumb screws from          the back of the case, then pull the side panel toward the back to remove it.    2. To place the side panel back, align the side panel with the hook holes and  slide the panel toward the front, then secure the panel with the screws.
  • Page 7: Motherboard Installation

    Motherboard Installation    1. Install the I/O panel that comes with your motherboard package.    2. Aim at the holes on the motherboard, and secure the standoffs on the  motherboard tray. 3. Align the holes of motherboard with the motherboard tray. Then secure the  motherboard with the provided screws.  NOTE: Instructions on CPU, RAM and any peripheral installations are not included in this manual.  Please refer to your motherboard and/or other manuals for related mounting instructions and  troubleshooting.   ...
  • Page 8: External 5.25" Device Installation

    External 5.25” Device Installation  1. From the interior of the case, use a firm device of your choice to push the  5.25” drive bay cover out.    2. Place the 5.25” device into the drive bay. 3. Match the ODD drive holes with the drive cage. Then turn the knob clockwise  to secure the drive cage. ...
  • Page 9: External 3.5" Device Installation

    External 3.5” Device Installation  1. Pull the right side of the front panel gently to open the door.  2. Remove the hard drive tray by pushing the tray tab to the right to release the  hard drive tray. ...
  • Page 10 3. Install hard drive by placing each individually into the hard drive tray.    Secure  each from the bottom of tray with the provided screws. 4. Place the tray back into to the case and lock it in place by pushing the tray in.  The rear of the hard drive will connect to the backplane. 5. Find the 4‐pin Molex on the power supply and connect it to the backplane.    Connect the backplane to the motherboard using the SATA cable provided by  your motherboard package. ...
  • Page 11: External 2.5" Hdd Installation

    External 2.5” Hard Drive / SSD Installation 1. Remove the 2.5” SSD hard drive tray by pushing the tray tab to the right to  release the tray. 2. Place 2.5” SSD hard drive into the hard drive box. Close the box.      3. Slide the 2.5” SSD hard drive box to the end of drive cage. ...
  • Page 12: Power Supply Installation

    Power Supply Installation  1. Place the power supply in its proper location and secure it with the provided  screws. 2. Simply route the cables behind the motherboard tray and secure them with  the provided cable tie.  3. To optimize performance it is recommended that the washable dust filter  underneath the power supply be cleaned on a regular basis.    Simply pull out  the dust filter, rinse with water, and slide it back after the dust filter is dried.   ...
  • Page 13: Fan Installation On The Side Panel

    Fan Installation  Fan Installation on the Side Panel  Take out the dust filter from the side panel.    Unscrew these three screws from the back of the side panel.      Pull the plastic cover backward to remove the cover         ...
  • Page 14 Install the fan on the inside of the side panel and secure it from the outside  of the panel with the provided screws.  Up to two 120mm or two 140mm or one 230mm (in both directions) fans  can be installed on the left side panel.  Pull out the washable dust filter from the side panel for regular cleaning.   ...
  • Page 15: Fan Installation On The Top Plate

    Fan Installation on the Top plate    Remove the thumb screws in the back, slide the top panel toward the front  to open the top panel.    Install fans on the top plate and secure with the provided screws.    Up to three 120mm or two 140mm or one 230mm fan can be installed. ...
  • Page 16: Bottom Fan Installation (Optional)

    Bottom Fan Installation (optional)    Turn the case upside down and install the fan in the base of the case.  Up to two 120mm or one 140mm or one 230mm fans can be installed on  the bottom.                             ...
  • Page 17: Water Cooling Installation

    Water Cooling Installation    1. To install an external water cooling system, use the pre‐drilled holes located  in the back to connect the tubes.    2. A 360 mm radiator may be installed on the top plate using the pre‐drilled  screw holes.             ...
  • Page 18: Front I/O Installation Guide

    Front I/O Installation Guide Please refer to the illustration on the section of USB and Audio connector from the motherboard user’s manual. The following illustration is a connection diagram for the front panel I/O cable. Please check your motherboard manual before installing. I/O Connector   ...
