Summary of Contents for AZZA ECLIPSE 440

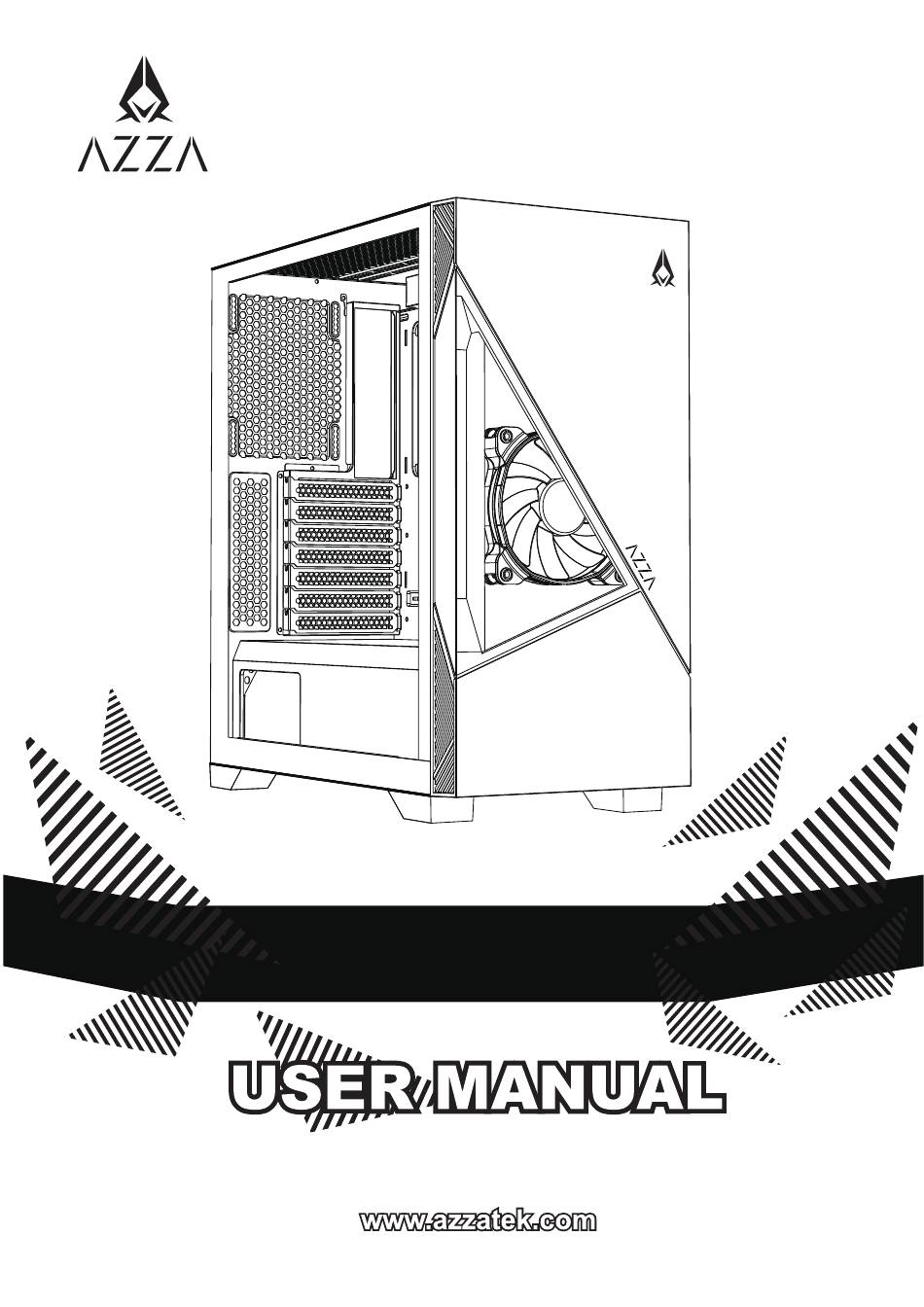

- Page 1 ECLIPSE 440...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Cooling System Installation 6. ARGB Control Board 7. ARGB Control Modes Switching...
-
Page 3: Specifications
Specifications Model Model Name: ECLIPSE 440 Model Number: CSAZ-440 Specifications Type: ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Left side panel: tempered glass with rubber mounts Max CPU Cooler Height: UP to 160mm Max Video Card Length: Up to 390mm long video card... -
Page 4: Chassis Parts
Chassis Parts Chassis Metal side panel Sliding tempered glass panel 2.5” SSD tray x 2 Hard disk cage 3.5” HDD/ 2.5” SSD brackets Front panel Light guide panel Removable magnetic mesh Steel dust filter... -
Page 5: Control Panel Functions
Control Panel Functions POWER USB 3.0 (Blue) RESET USB 2.0 (Black) Audio... - Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation ▪Supports up to 390mm long video cards. ▪Supports up to 120mm fan x2 ( MAX 390mm video card MAX 390mm video card 3.5″ 3.5″ 2.5″ 2.5″ ▪Multifunctional hard disk cage support 3.5” HDD or 2.5” SSD x 1( ▪Multifunctional hard disk bracket support 3.5”...
- Page 7 Cooling System Installation Front 120mm x3 Max Height of Radiator 360 mm 140mm x3...
- Page 8 Cooling System Installation Rear 120mm x1...
-
Page 9: Cooling System Installation
Cooling System Installation 120mm x2 140mm x2 Max Length of Radiator 240 mm... - Page 10 ARGB Control Board...
- Page 11 ARGB Control Modes Switching ※Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board. ※Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
