- Page 1 Aero G a m i n g c a s e...
- Page 2 Installation Instructions 1. Specifications 2. Chassis Parts 3. Control Panel Functions 4. 3.5”/2.5” HDD/SSD Installation 5. Remove the Front Panel Instructions 6. Cooling System Installation 7. Master Fan & Sub-fan Installation 8. PSU Fans Installation 9. Fan Installation 10. RGB Lighting Switching...
-
Page 3: Specifications

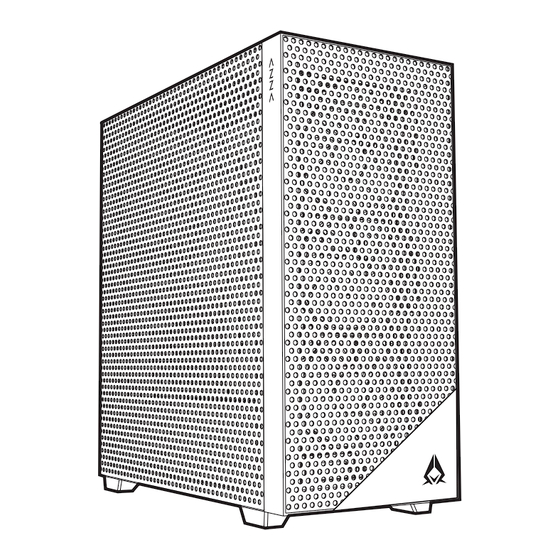

Specifications Model Aero Model Name: Model Number: CSAZ-480 Specifications Type: ATX Mid Tower Color: Black/Black(interior) Side Panel Window: Left side panel: slidable iron mesh side panel Max CPU Cooler Height: UP to 170mm Max Video Card Length: Up to 400 mm long video card... -
Page 4: Chassis Parts
Chassis Parts Front panel Metal side panel Mesh side panel Removable dust filter Removable magnetic mesh 2.5” SSD tray x 2 Hard disk cage 3.5” HDD/ 2.5” SSD brackets... -
Page 5: Control Panel Functions
Control Panel Functions POWER USB 3.0 USB 3.0 Audio... - Page 6 3.5 ˝/ 2.5˝ HDD/SSD Installation MAX 400mm video card MAX 400mm video card ▪Supports up to 400mm long video cards. 3.5″ 3.5″ 2.5″ 2.5″ ▪Multifunctional hard disk bracket support 3.5” HDD or 2.5” SSD x 1 ( ▪Multifunctional hard disk bracket support 2.5”...
- Page 7 Remove the Front Panel Instructions...
- Page 8 Cooling System Installation Front 120mm x3 Max Height of Radiator 360mm 140mm x3...
-
Page 9: Cooling System Installation
Cooling System Installation 120mm x3 140mm x2 Max Length of Radiator 360mm... - Page 10 Cooling System Installation Rear 120mm x1...
- Page 11 Master Fan & Sub-fan Installation included 1pc of Master Fan included 3pc of sub-fan...
- Page 12 PSU Fans Installation 2x120mm fan ports on the Power Supply Shroud...
- Page 13 Fan Installation Version 1 (Reserved) CONNECTOR CONNECTION Reset (LED) S/W (2pin) Button ① The 5V/3pin ARGB socket of the motherboard ARGB LED 5V (3pin) female connector ② Fan Connector The master Fan connect to the sub-fan ③ Fan Connector PWM (4pin) CHA_FANx socket of the motherboard ④...
- Page 14 Fan Installation Version 2 The adaptor cable is in the tooling bag (Reserved) CONNECTOR CONNECTION Reset (LED) S/W (2pin) Button ① ARGB LED 5V (3pin) female connector The 5V/3pin ARGB socket of the motherboard ② Fan Connector The master Fan connect to the sub-fan ③...
- Page 15 RGB Lighting Switching ▪Press the button to cycle through different RGB lighting modes.
