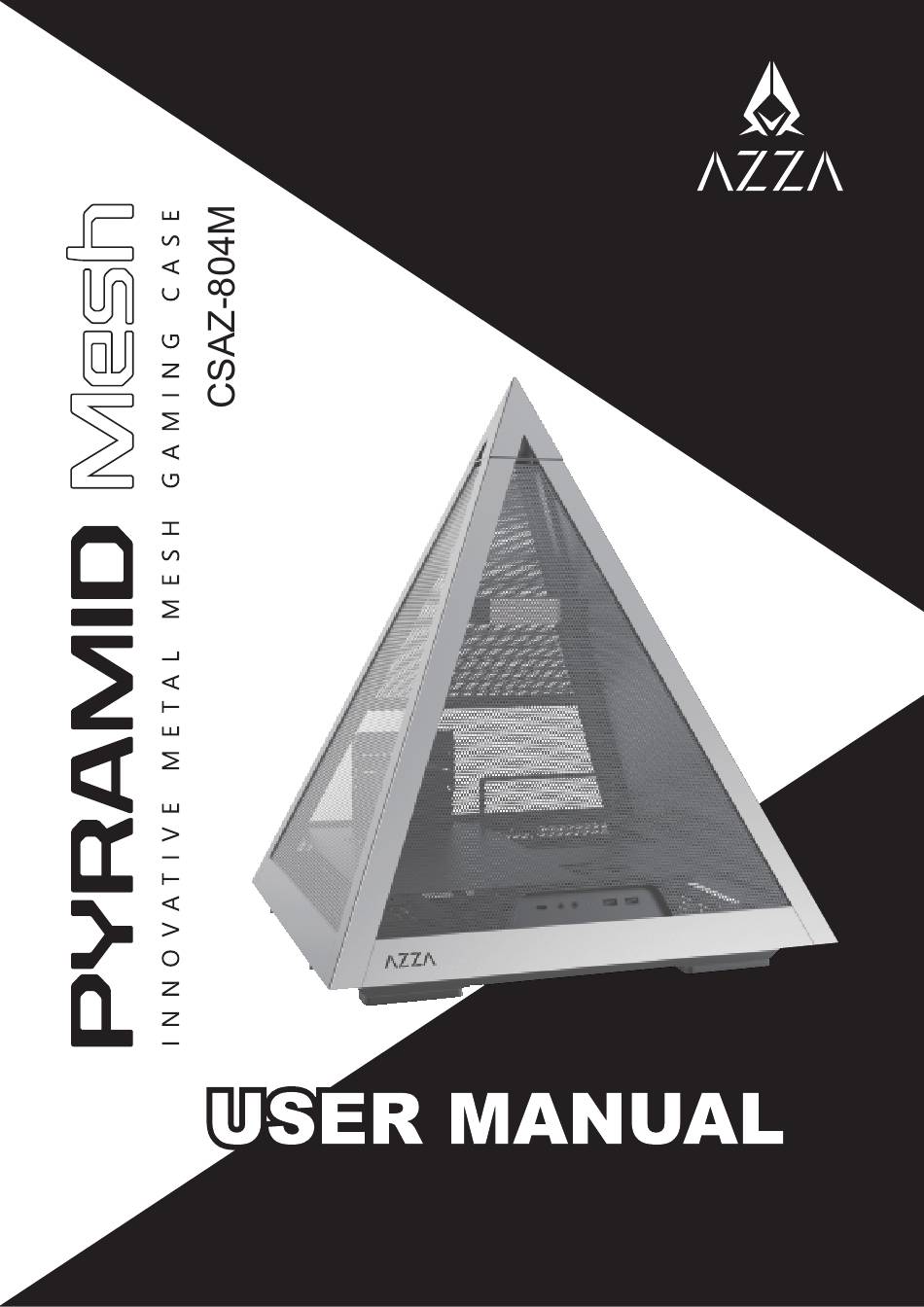

AZZA PYRAMID Mesh User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYRAMID Mesh and is the answer not in the manual?

Questions and answers

Related Manuals for AZZA PYRAMID Mesh

Summary of Contents for AZZA PYRAMID Mesh

  • Page 2: Installation Instructions

    Installation Instructions 1. Specifications 2. Chassis Parts 3. Removing The Top Metal Mesh Panel 4. Overview 5. Power Supply Installation 6. 2.5"SSD / 3.5"HDD Installation 7. PCI-E Cable 8. Fan Installation 9. Digital RGB Fan Installation For Motherboard...

  • Page 3: Specifications

    Specifications Model Model Name: PYRAMID Mesh Model Number: CSAZ-804M Specifications Type: ATX Tower Color: 1.5~2.0mm SPCC+ 2.5mm Aluminum Side Panel Window: 4 sides panel are full metal mesh Max. CPU Cooler Height: UP to 95mm Max. GPU Length: L=330 mm / W=150 mm / H=70 mm (Horizontal) Power Supply: Motherboard Compa�bility:...

  • Page 4: Chassis Parts

    Chassis parts TOP metal mesh panel cover Horizontal PCIe slot Pyramid structure I/O Ports: USB 3.0 x 2 , Type C, HD Audio 120mm/140mm fan bracket Spring bolt screw of top panel cover 12cm ARGB Fan Fan cable management cover Adiustable video card holder 2.5"SSD brackets X1 Power supply rack...
  • Page 5 Removing The Top Glass Panel Lift to remove top panel Loosen the four screws...
  • Page 6 Overview...
  • Page 7 Overview...

  • Page 8: Power Supply Installation

    Power Supply Installation...
  • Page 9 2.5"SSD / 3.5"HDD Installation (I) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2 (II) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1 (also compatible with a 2.5" SSD) Supports up to 2 x 120mm fan on the hard drive bay...
  • Page 10 PCI-E Cable 200 mm PCI-E 4.0 Cable(Support EATX、ATX Motherboard)

  • Page 11: Fan Installation

    Fan Installation...
  • Page 12 Digital RGB Fan Installation For Motherboard The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI™, ASUS™, Gigabyte™ and AsRock™. Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.

This manual is also suitable for:

Csaz-804m
