Figure 25: Wan-Pptp - SMC Networks SMCWBR14S-N5 User Manual

Connect Manually - You can configure the Router to make it connect
◆
or disconnect manually. After a specified period of inactivity (Max Idle
Time), the Router will disconnect from your Internet connection, and
you will not be able to re-establish your connection automatically as
soon as you attempt to access the Internet again. To use this option,
click the radio button. If you want your Internet connection to remain
active at all times, enter "0" in the Max Idle Time field. Otherwise,
enter the number in minutes that you wish to have the Internet
connecting last unless a new link is requested.
Sometimes the connection cannot be disconnected although you
C :
AUTION
specify a time to Max Idle Time, since some applications is visiting the
Internet continually in the background.
If your ISP provides PPTP connection, please select PPTP option. And
7.
you should enter the following parameters

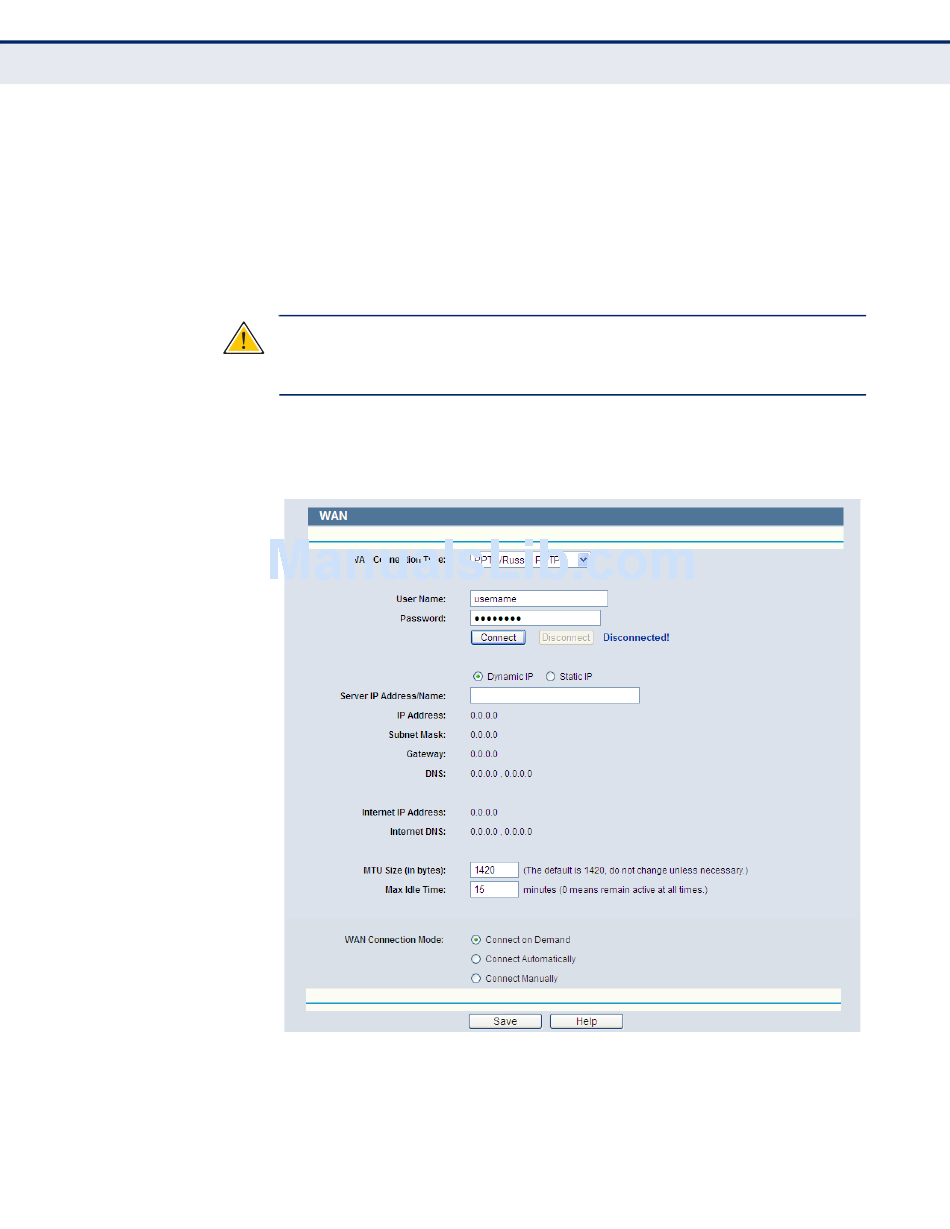

Figure 25: WAN-PPTP

◆ User Name/Password - Enter the User Name and Password provided
by your ISP. These fields are case-sensitive.
– 48 –
| Configuring the Router
C 4
HAPTER
(Figure 25):
Network
