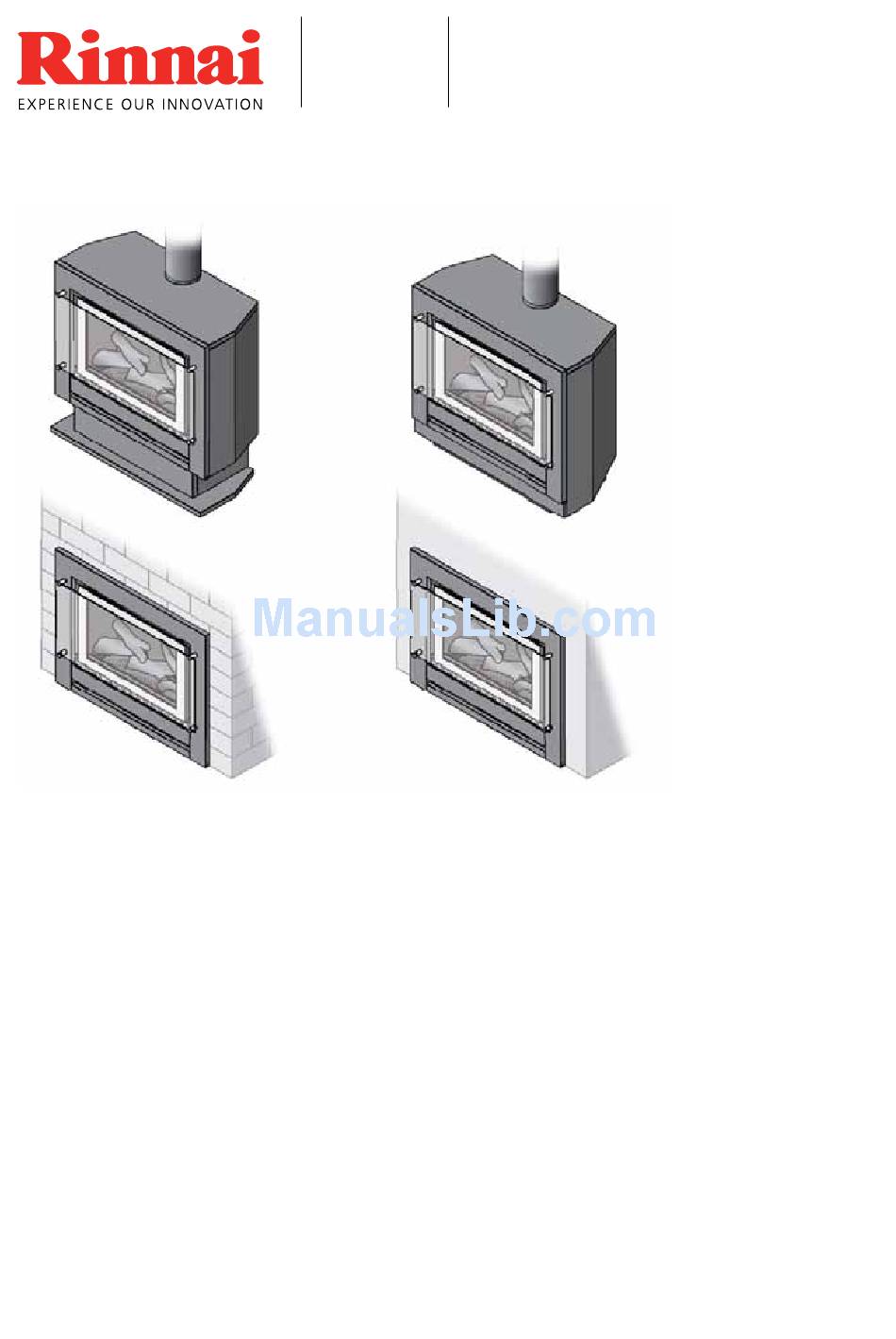

Installation Manual
Appliance must be installed, commissioned and serviced by a licensed tradesperson in
accordance will all applicable local rules and regulations.
For installations into a combustible opening, a Rinnai zero clearance box and flue kit are
mandatory.
Before installation:
• Unpack the appliance and components and check for damage—DO NOT install any
damaged items
• Check all components have been supplied and that you have the correct gas type
• Read these instructions to get an overview of the steps required before starting the
installation
Failure to follow these instructions could cause a malfunction of the appliance. This could result
in serious injury and property damage.
RIB2310N
NEO
RIB2310L
Advertisement
Table of Contents
Related Manuals for Rinnai Neo RIB2310N
Summary of Contents for Rinnai Neo RIB2310N
- Page 1 Installation Manual Appliance must be installed, commissioned and serviced by a licensed tradesperson in accordance will all applicable local rules and regulations. For installations into a combustible opening, a Rinnai zero clearance box and flue kit are mandatory. Before installation: •...
-
Page 2: Table Of Contents
Checking the flame pattern Fitting the frame assembly Commissioning Wiring diagram WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. For assistance or additional information contact Rinnai on 0800 RINNAI (0800 746 624). -
Page 3: Checklist
Checklist Engine - masonry installation: Rinnai Neo heater (engine) Outer (attached to heater with 2 x 8 g black screws) Glass outer dress guard 4. Inner frame Log set (inside appliance) 6. Packet of burner granules Semi rigid stainless steel gas pipe with 5/8 " UNF flare connection 8. -
Page 4: Specification
Inside appliance on the front left hand side Flue - Masonry Rinnai strongly recommends the use of a Rinnai flexiliner flue system (flexi Ø 100 mm). Failure to meet this criteria may result in an unsafe situation. Installation without a flexiliner flue is permissible as long as the chimney is checked for soundness and ability to achieve a good draw. -
Page 5: Dimensions
Dimensions (mm) Inbuilt masonry Inbuilt mock chimney Freestanding console Freestanding plinth Model External dimensions Gas connection Inbuilt masonry Inbuilt mock chimney Freestanding console Freestanding plinth Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 6: Location
Fixed ventilation must be provided as per NZS 5261. Clearances The clearances listed below are minimum clearances unless otherwise stated. Inbuilt models Freestanding models (can be positioned directly on the floor) Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 7: Electrical Connection
Rinnai recommend the heater is plugged into a dedicated 240 V, 10 A earthed power point. The power point must not be located above the heater (potential fire hazard). If the... - Page 8 Some TV manufacturers have warranty conditions that state a TV is not to be installed above a fireplace. Rinnai does not accept any responsibility for damage to a TV resulting from the use of this information. Rinnai New Zealand Limited...
-
Page 9: Enclosure Dimensions
MUST BE installed flush with the cladding surface to ensure alignment of the flue. Model Minimum dimensions (mm) Height (H) Width (W) Depth (D) Inbuilt masonry Inbuilt mock chimney Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 10: Gas Supply
125 mm. the flexible gas connection and termination. Gas connection: Gas supply pipe Brass adaptor Flexi Installer, terminate to suit ½ ” BSPT Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 11: Flueing Options And Components
Freestanding flue extension galvanised black 1.2 m Freestanding vertical All of the above components plus: offset flueing R1766GL Freestanding wall penetration kit galaxy black R1765GL Freestanding 45 ° bend kit galaxy black Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 12: General Flueing Information
It is the responsibility of the installer to ensure that the appliance is provided with an effective flue. For installations requiring a flue, a Rinnai flue system must be used. The flue system must be fully assembled and secured in place before the appliance is installed. - Page 13 Lesser clearances may provide perfectly adequate flue systems depending on the installation. Minimum clearances are shown in NZS 5261. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11...
-
Page 14: Masonry Installations
To ensure adequate draw for maximum performance of the appliance, Rinnai strongly recommends the use of a Rinnai flexiliner flue system for masonry installations. Failure to meet this installation criteria may result in an unsafe situation. Performance issues resulting from inadequate flueing is not covered by the warranty. - Page 15 Carefully move the appliance into the enclosure ensuring the gas supply feeds into the rear access hole and fasten heater to the fireplace. Guide plate Guide rails Flue guide rails Rear of front assembly Drill 4 x Ø 3.2mm holes Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11...
-
Page 16: Mock Chimney Installations
Mock chimney installations For installations into a mock chimney a Rinnai zero clearance box and zero clearance flue kit is required to isolate the appliance from combustible materials. Failure to meet this installation criteria will void any product warranty. 1. Construct frame and install zero clearance box Refer 'Enclosure dimensions' and construct frame. - Page 17 Carefully move the appliance into the enclosure ensuring the gas supply feeds into the rear access hole and fasten heater to the fireplace with the four fixings either side of the unit as shown below. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11...
-
Page 18: Freestanding Installations
This also acts as a seismic constraint. The diagram below shows the base assembly for the Neo Console model. The Neo Plinth base assembly has a pillar section attached. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... - Page 19 Install the freestanding top panel using three M5 x 10 and three self tapping screws. Install the freestanding side panels (ensure you push up to minimise the gap) using six screws per side. M5 x 10 screws Self tapping screws Minimise Screw positions for side panels Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11...
-
Page 20: Log Set Installation
Lean the log back until burner box walls and resting on log 1. it rests on log 4. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 21: Granule Pack Installation
(dirty combustion) that may cause sooting. It is desirable that the flames touch the granules as this diffuses any ‘candling’ effect and enhances the realistic log burning look of the heater. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 22: Test Pressures
3. Remove the dust cap from the regulator adjusting nut and screw. Gas control valve High pressure adjusting nut Low pressure inlet adjusting screw Inlet test point Gas outlet Appliance test point pressure Gas control power connection Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... - Page 23 10. When you are satisfied that the heater is working correctly, reassemble and start the appliance to check the flame pattern (refer next page). High pressure adjusting nut Increase Low pressure adjusting screw Increase Decrease Appliance test point pressure Decrease POV power connector Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11...
-
Page 24: Checking The Flame Pattern
If the appliance cannot be made to perform correctly, please contact Rinnai. Rinnai New Zealand Limited Neo Installation Manual: 11906-B... -
Page 25: Fitting The Frame Assembly
Come in close to the heater and plug in the CAT cable into the control panel. CAT cable Position of the CAT cable and control panel plug (step 3) Control panel plug Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 26: Commissioning
Complete the installation and commissioning checklist in the customer operation manual and make sure you leave the manual with the customer. Explain to the customer about the use and care of the unit and that they understand the instructions. Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... -
Page 27: Wiring Diagram
Wiring diagram Rinnai New Zealand Limited Neo Installation Manual: 11906-B 02-11... - Page 28 Website: www.rinnai.co.nz All Rinnai appliances meet or exceed the safety standards required by New Zealand gas and electrical regulations. Rinnai is constantly improving its products and as such information and specifications are subject to change or variation without notice.
