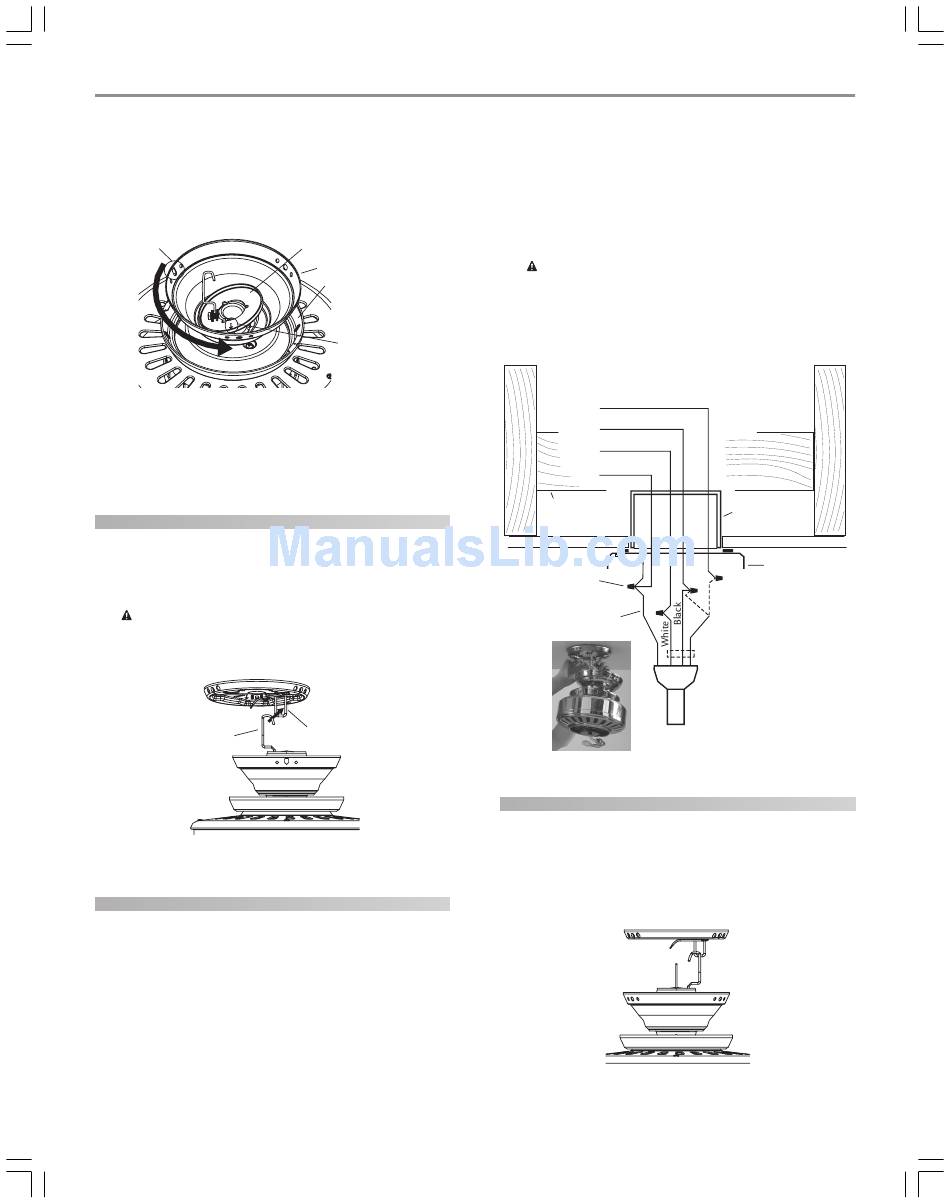

6. Place the canopy trim ring then the canopy over the adapter
as shown in Figure 15.
7. Place the low profile washer (lip up) into the canopy as shown
in Figure 15 fitting the notch in the low profile washer over the
adapter set screw and hook.
Tab Hole
Figure 15 - Assembling canopy for low profile mounting
8. Rotate the canopy until the arrow on the low profile washer
aligns with the tab hole on the canopy as shown in Figure 15.
9. Align the holes in the low profile washer with the holes in the
adapter and assemble securely with the three #8-32 x 1" screws.

hanging the fan

1. Raise the fan and place the hook through the loop on the ceil-
ing plate as shown in Figure 16. Use the note and arrow en-
graved in the ceiling plate to assist in determining the direc-
tion to assemble.
WARNING: Fan may fall if not assembled as directed in
these installation instructions.
Hook
Figure 16 - Hanging the fan

wiring the fan

1. Disconnect the power by turning off the circuit breakers to
the outlet box and associated wall switch location.
2. You can use either one or two wall switches to control the fan
and/or lights separately. Use connection 1, as described in Fig-
ure 17, to
• control the light with a wall switch and the fan with a pull
chain (one wall switch required),
control the light with a pull chain and the fan with a wall
•
switch (one wall switch required), or
41886-01 02/08/2005
41886-01_Rev 02.08.05.pmd 6
Low Profile Washer
Canopy
Canopy Trim Ring
Arrow on the
Low Profile
Washer
Loop
• control the light with one wall switch and the fan with
another (two wall switches required).
Use connection 2, as described in Figure 17, if there is no sepa-
rate wall switch power wire for the light fixture.
NOTE: Wall switches not included.
3. Connect the wires as shown in Figure 17. To connect the wires,
twist the bare metal leads together. Place a wire nut over the
intertwined length of wire and twist clockwise until tight as.
CAUTION: Be sure no bare wire or wire strands are vis-
ible after making connections.
All wiring must be in accordance with national and local
electrical codes and ANSI/NFPA 70. If you are unfamiliar
with wiring, you should use a qualified electrician.
Wall Switch Wire for Separate
Control of Light Fixture
Power
Black
Wires
in White
Ceiling
Bare or Green
2 x 4 Brace
Approved
Connectors
Green Ground Wire from
Hanger Pipe (not present
with flush mounting
option)
Figure 17 - Wiring the fan

installing the canopy

1. Rotate the fan 180º clockwise from the initial position when
hanging the fan. The arrows on the hanger ball and on the
ceiling plate should be pointing in the same direction and
should be pointing towards the tab hole on the canopy. Refer
to Figure 18.
Figure 18 - Rotating the fan
2/8/05, 5:14 PM
(Note: Wall
switch must be
acceptable as a
general-use
switch.)
Outlet Box
Ceiling Plate
Connections:
1
1. Connect Blk/Wht
2
wire from the fan to the
wall switch for separate
Blk/Wht
control of the light
3 Wires
fixture, or
from Fan
2. Connect Blk/Wht
wire from the fan to the
ceiling black wire if there
is no separate wall
switch wire for the light
fixture.
