Hunter Lincoln, 53365, 53406, 53407, 53408 Manual

3D INTERActive GUIDE

Step 1: Scan QR code with smart phone or tablet

Step 2: Follow on screen instructions

Step 3: Register your product

Our digital guided installation takes you seamlessly from unboxing to completion with clear instructions and visual aids. With the convenience of accessing the guide on your smartphone, tablet, or computer, you can take your installation experience wherever you go.

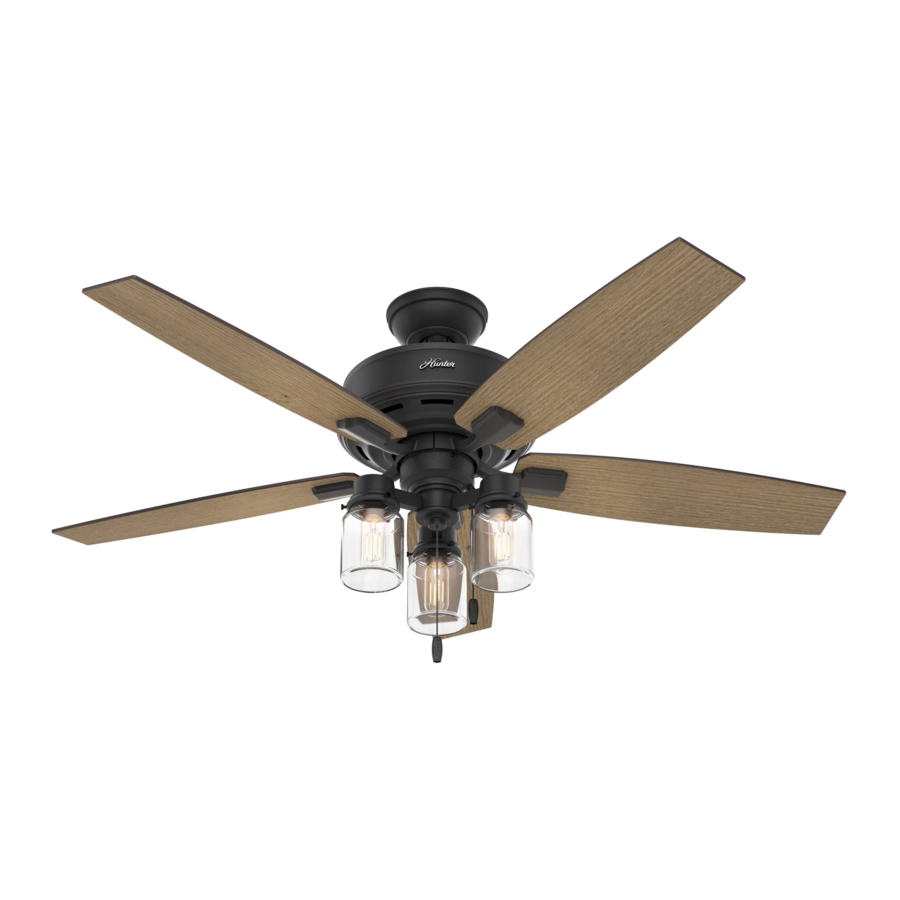

Congratulations on purchasing your new Hunter® ceiling fan!

The ceiling fan you purchased will provide comfort and performance in your home or office for many years. This instruction manual contains complete instructions for installing and operating your fan. We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world. This Instruction Manual is designed to make installation as simple as possible. If you are unfamiliar or uncomfortable with wiring, contact a qualified electrician. We also provide telephone support at 1.888.830.1326 or visit us at HunterFan.com.

REGISTER TODAY! FREE Limited Lifetime Warranty


To activate your free limited lifetime warranty, please scan the QR code and register your product. This will ensure you receive exceptional service and support for years to come.


READ and SAVE These Instructions

  • To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.
  • To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
  • To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
  • To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. It is recommended that children be supervised to ensure that they are not using the appliance improperly.
  • To reduce the risk of fire or electric shock or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

  • All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.

Here are the tools you'll need to complete your installation

OPTIONAL
If mounting to a support structure, you will also need these tools.

Here is what comes in your box

Hunter Pro Tip:
Do not discard the hardware bags or mix parts from different bags. Make note of the symbol printed on each hardware bag. The symbols can be used to identify the appropriate hardware for each step.

We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you'll need for those parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.

Choosing the Right Installation Location

You probably bought this fan with a location in mind. Let's check below to make sure it is a good fit.

Check the room dimensions:

Check the outlet box:

Checking the Ceiling Angle

Standard Mounting
Checking the Ceiling Angle - Standard Mounting
If you have a flat ceiling:
Hang your fan by a standard downrod. Some fans come with a shorter downrod for a Low Profile installation.

Angled mounting
Checking the Ceiling Angle - Angled Mounting
If you have an angled or vaulted ceiling:

  1. You will need a longer downrod. (sold separately at HunterFan.com)
  2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit. (Sold separately at HunterFan.com)

Angled Mounting

A little more information on Angled Mounting:
For optimum performance and appearance, a longer downrod should be used with your Hunter ceiling fan when installing on high or angled ceiling. If your ceiling is angled greater than 34° you will also need an Angled Mounting Kit. Longer downrods and the Angled Mounting Kit are sold separately at HunterFan.com.

Hunter Pro Tip:
Determining if you need an Angled Mounting Kit: Fold on the dotted line. Place against edge againts the wall. Slide towards the ceiling. If the guide touches the wall but not the ceiling, you need an angled mounting kit.

Installing the Ceiling Bracket

You have two options for installation. Pick which one works best for your location. Remove any existing bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan's box.

Hunter Pro Tip:
The machine screws are the ones that came with your outlet box.

Do this first!


To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet box associated with the wall switch location.

Installing the Ceiling Bracket

Installing the Downrod

Follow below if you are using the downrod that came pre-assembled in your box. Need to install a longer or shorter downrod? Check out the guide at the end of this manual.
Installing the Downrod


FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:

  • ALWAYS tighten setscrew with pliers.
  • DO NOT hand tighten setscrew.
  • CHECK the setscrew is tight using pliers each time you change fan direction.

Hanging the Fan

Hanging the Fan - Step 1
information Note: Fan style may vary.
Hanging the Fan - Step 2

Wiring the Fan

We know wiring is hard. Let's make it easier.

Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please contact a qualified electrician.

You are going to need these:
4 Wire Nuts (these are in the bag)

Hunter Pro Tip:
Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire nut over them. Then, twist the wire nut clockwise until tight. Give it a gentle pull to make sure none of the wires are loose.

Have a single switch?

Follow these steps:
Single switch wiring

Have dual switches?

Follow these steps:
Dual switches wiring

information Note:
Fan style may vary.

Installing the Canopy

Installing the Canopy

Installing the Blades

Insert grommets found in the hardware bag into the holes in the blades, then secure each blade to a blade arm with screws found in the hardware bag.
Installing the Blades

Assembling the Light

Assembling the Light

Installing the Bulbs and Glass

Installing the Bulbs and Glass

Installing the Pull Chains

Installing the Pull Chains

Reversing the Fan

Reversing the Fan

Troubleshooting

Fan Doesn't Work

  • Make sure power switch is on.
  • Pull the pull chain to make sure it is on.
  • Push the motor reversing switch firmly left or right to ensure that it is engaged.
  • Check the circuit breaker to ensure the power is turned on.
  • Make sure the blades spin freely.
  • Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram.
  • Check the plug connection in the switch housing.

Excessive Wobbling

  • Make sure the blades are properly installed on the blade iron posts.
  • Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

Noisy Operation

  • Make sure the blades are properly installed.
  • Check to see if any of the blades are cracked. If so, replace all of the blades.

Hunter Pro Tip:
Cleaning the Fan
Use soft brushes or cloths to prevent scratching. Cleaning products may damage the finishes.

How Can Warranty Service Be Obtained?

Proof of purchase is required when requesting warranty service. The original purchaser must present a sales receipt or other document that establishes proof of purchase. Hunter, at its sole discretion, may accept a gift receipt. To obtain service, contact Hunter Fan Company online or by phone.

www.HunterFan.com/Support/Contact-Us/
1-888-830-1326

Please do not ship your fan or any fan parts to Hunter. Delivery will be refused.

Downrod

If you need a different downrod length follow these steps:
Follow steps 1-5 to remove standard downrod pipe
Follow steps 6-10 to reassemble with new downrod
Downrod remove/reassemble steps

Here is another view of the downrod assembly unassembled.

Assembled downrod should look like this


FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:

  • ALWAYS follow the downrod assembly instructions exactly.
  • VERIFY the downrod is assembled correctly by firmly pulling on the hanger ball.
  • Pin must be reinserted to secure downrod assembly.
