4. Align the slotted holes (refer to Figure 10) in the ceiling plate
with the pilot holes in the wood support structure. Note: The
isolation pads should be flush against the ceiling.
For Angled Ceilings: Be sure to orient the ceiling plate so that
the arrows on the ceiling plate are pointing towards the ceiling
peak. Refer to Figure 10.
Arrows for Orienting
on Angled Ceiling

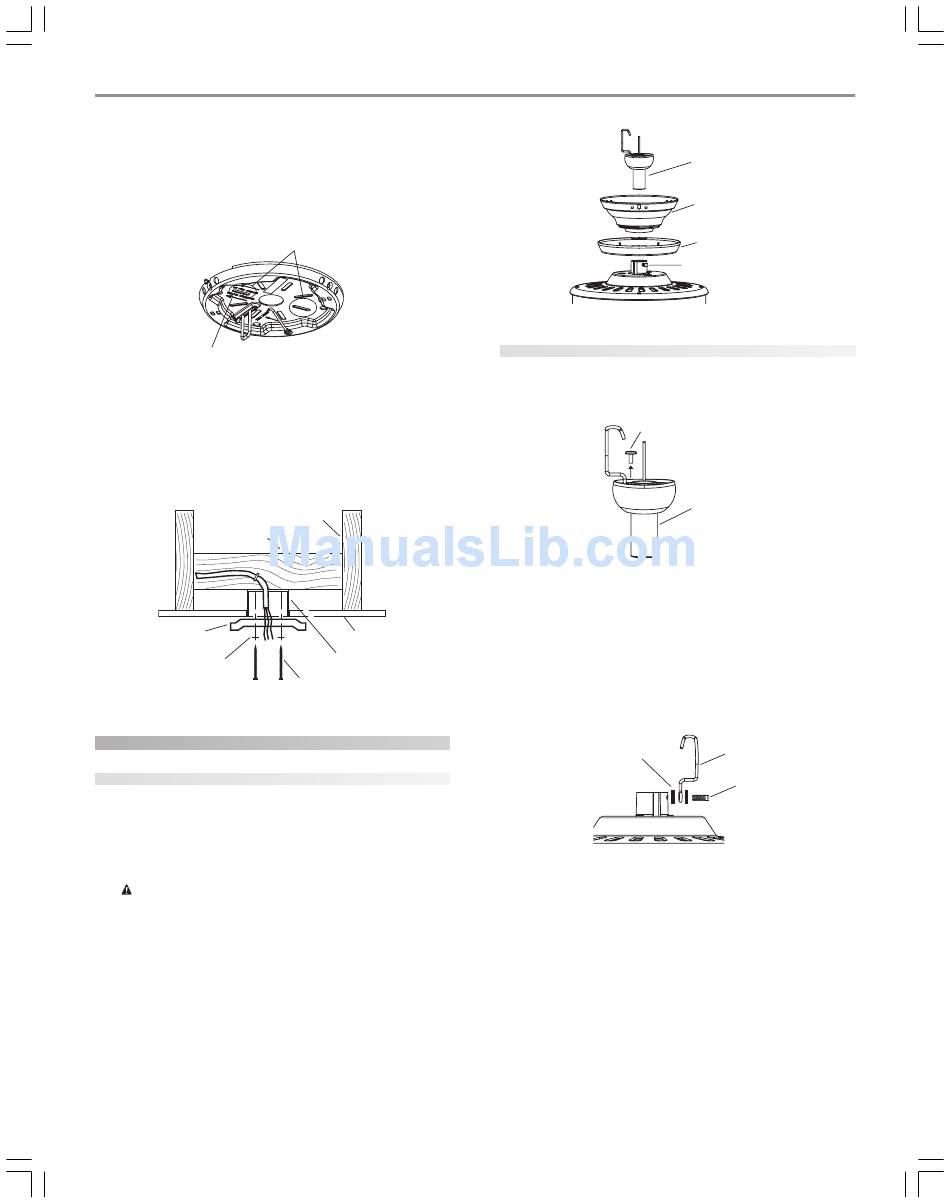

Figure 10 - Locating the slotted holes to use
5. Place a flat washer on each of the two 3" screws and pass the
screws through the slotted holes in the ceiling plate as shown
in Figure 11.
6. Tighten the screws into the 9/64" pilot holes; do not use lubri-
cants on the screws. Do not overtighten.
Ceiling Plate
Flat Washer
Figure 11 - Installing the ceiling plate

assembling the fan

assembling the fan for a standard or angled ceiling
1. Insert the downrod through the canopy and canopy trim ring
as shown in Figure 12. Feed wires from the fan through the
downrod.
2. Screw the downrod into the fan assembly until tight. IMPOR-
TANT! Tighten downrod set screw as shown in Figure 12.
CAUTION: The downrod has a special coating on the
threads. Do not remove this coating; the coating prevents
the downrod from unscrewing. Once assembled, do not
remove the downrod.
h
3. Continue to the anging the fan section.
© 2005 Hunter Fan Company
41886-01_Rev 02.08.05.pmd 5
Slots
Ceiling Joist
2 x 4 Brace
Ceiling
Outlet Box
3" Wood Screw
Figure 12 - Assembling the downrod
assembling the fan for a low ceiling
1. Remove the screw on the hanger ball to disassemble it from
the downrod as shown in Figure 13.
Screw on the Hanger Ball
Figure 13 - Removing the screw from the hanger ball
2. Remove the hook from the assembly.
3. Completely remove the set screw (identified in Figure 12) from
the fan adapter.
4. Put the set screw, previously removed, through the two black
neoprene washers and the hook as shown in Figure 14. Hook
must be installed in same orientation as shown in Figure 14.
Black Neoprene
Washer
Figure 14 - Assembling the
set screw for low profile assembly
5. Reassemble the set screw to the adapter as shown in Figure 14.
NOTE: The rubber washers should be tight enough to keep
the hook standing straight up, but the set screw should not be
completely tighten as to keep the hook from being able to
swing.
2/8/05, 5:14 PM
5
Hanger Ball/
Downrod Assembly
Canopy
Canopy Trim Ring
Set Screw
Hanger Ball/
Downrod
Assembly
Hook
Set Screw
41886-01 02/08/2005
