2. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower
switch housings. Attach the lower switch housing to the up-
per switch housing with three #6-32 x 3/8" housing assembly
screws. See Figure 28.
installing the glass bowl
Refer to Figure 29.
1. Install two max 60 Watt medium base incandescent bulbs.
2. Attach the extra pull chain (included in the sack parts) to the
fan pull chain using the plastic breakaway connector.
3. Thread the fan pull chain through the hole in the metal disk.
4. Thread the light pull chain through the hole in the center of
the glass bowl.
5. Place the cover plate up against the glass bowl. Align the holes
in the cover plate and glass bowl.
6. Thread the fan pull chain and light pull chain through the ap-
propriate holes.
7. Thread the light pull chain through the finial and screw the
finial onto the threaded rod end until tight.
Fan Pull Chain
Glass Bowl

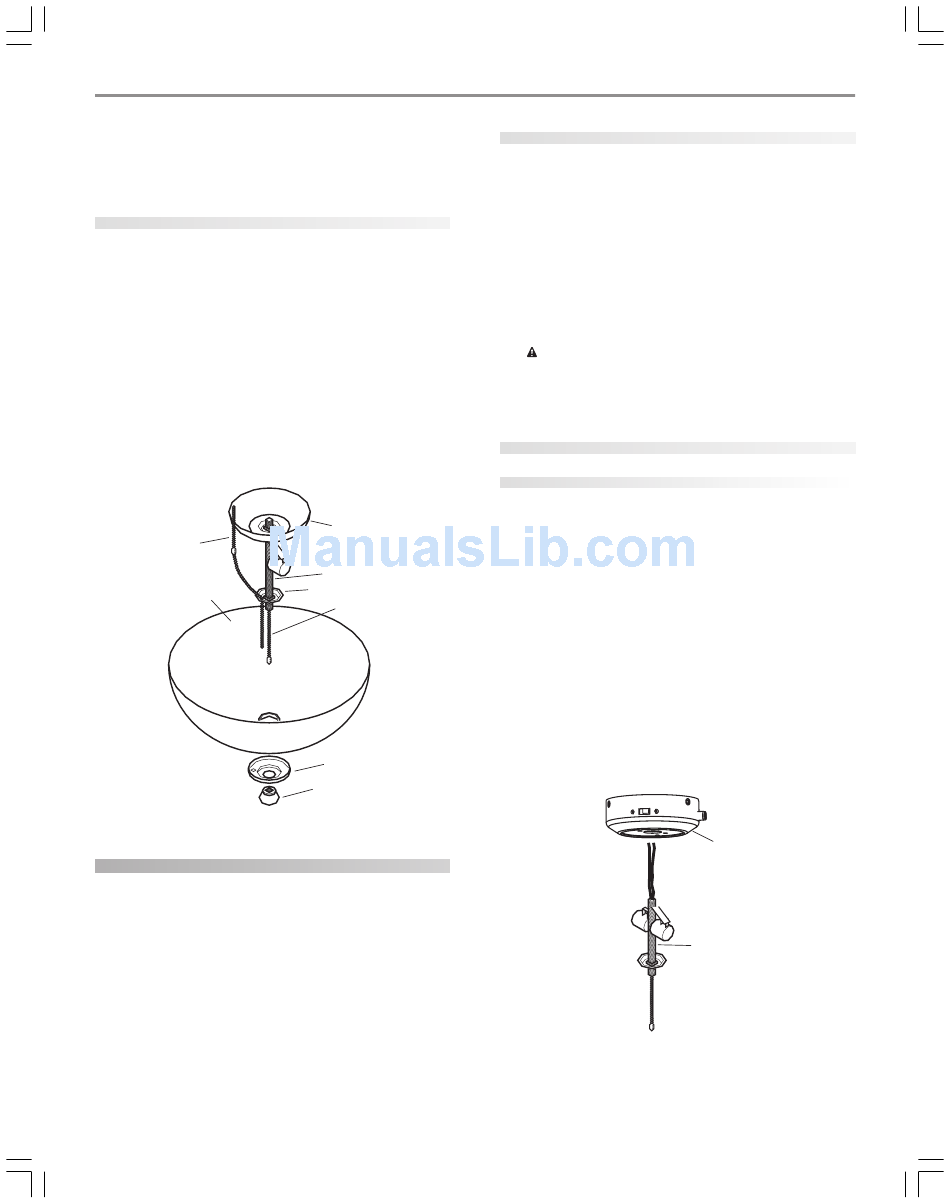

Figure 29 - Installing the glass bowl
installing without the light fixture
Your Hunter fan comes with an integrated light fixture assembly
and an optional switch housing cap and plug button. This feature
gives you the option of installing the fan with or without the in-
cluded light fixture.
If you decide to install the fan without the integrated light fixture
please complete the following instructions to install the optional
switch housing cap and plug button.
© 2005 Hunter Fan Company
41886-01_Rev 02.08.05.pmd 9
Lower Switch
Housing
Threaded Rod
Metal Disk
Light Pull Chain
Cover Plate
Finial
attaching the upper switch housing
1. Partially install two #6-32 x 3/8" housing assembly screws into
the switch housing mounting plate as shown in Figure 26.
2. Feed the upper plug connector through the center opening of
the upper switch housing. See Figure 26.
3. Align the keyhole slots in the upper switch housing with the
housing assembly screws installed previously.
4. Turn the upper switch housing counterclockwise until the
housing assembly screws are firmly situated in the narrow end
of the keyhole slots as shown in Figure 27. Install the one re-
maining #6-32 x 3/8" housing assembly screw into the third
hole in the upper switch housing. Tighten all three screws firmly.
CAUTION: Make sure the upper switch housing is se-
curely attached to the switch housing mounting plate. Fail-
ure to properly attach and tighten all three housing assem-
bly screws could result in the switch housing and light fix-
ture falling.
attaching the lower switch housing
uninstalling the light fixture
Refer to Figure 30.
1. Disconnect the plug connectors between the black wire and
the black/white wire.
2. Disconnect the plug connectors between the two white wires.
3. Uninstall the nut and washer from the end of the light fixture
inside of the lower switch housing.
4. Unscrew the threaded rod of the light fixture from the lower
switch housing.
5. Remove the light fixture from the lower switch housing pull-
ing disconnected wires through the hole in the center of the
lower switch housing.
NOTE: When removing the wires, pull the thin plug connec-
tor (male) through first, and then pull the other plug connec-
tor (female) through the hole.
6. Install the dummy terminals (included in the sack parts) on
the two disconnected wires in the lower switch housing.
Figure 30 - Removing the light fixture
