A

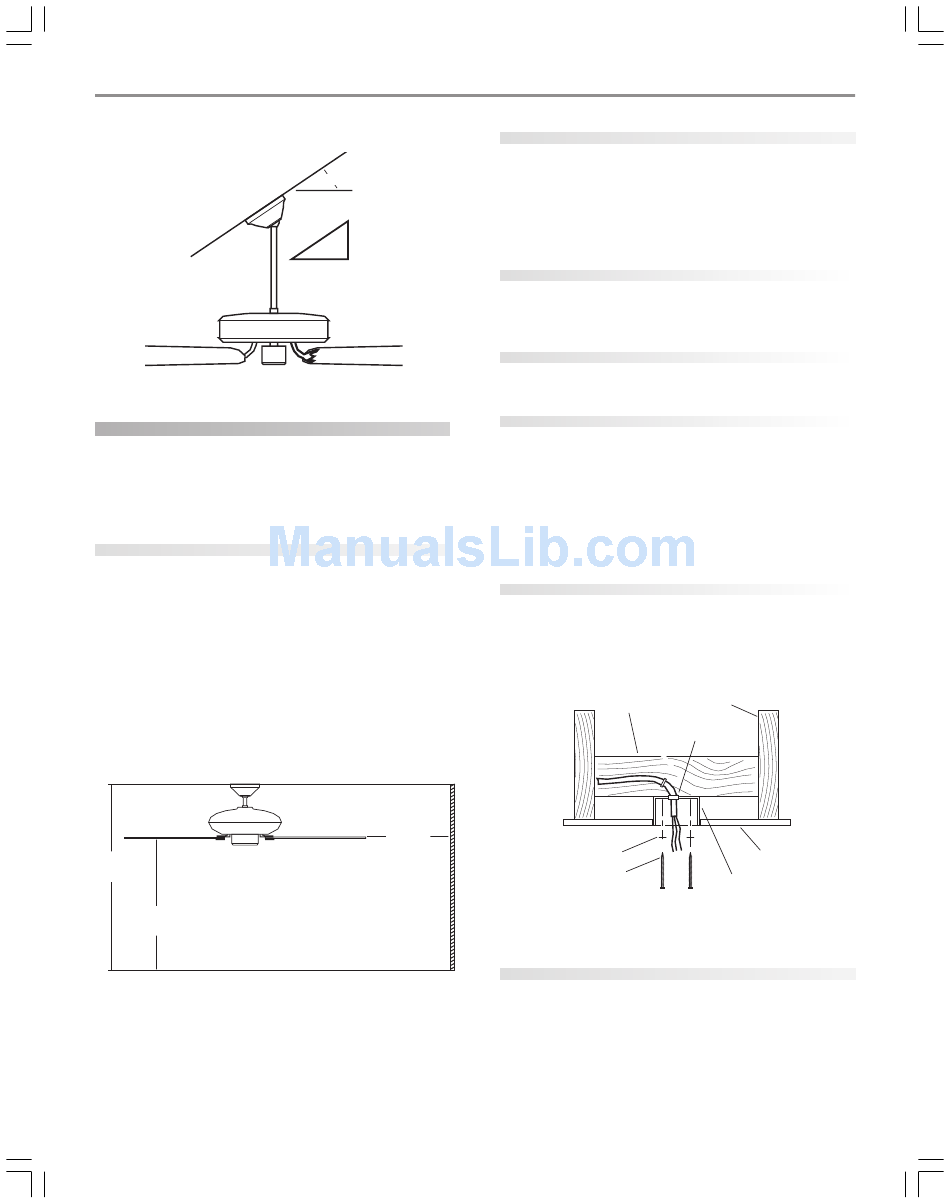

ngle Mounting (Figure 3) hangs from a vaulted or angled ceiling.
Figure 3 - Angle mounting

preparing the fan site

These guidelines are designed to help you select the best location
for your fan and to prepare the site prior to installing the fan. Proper
ceiling fan location and attachment to the building structure are
essential for safety, reliable operation, maximum efficiency, and en-
ergy savings.
choosing the fan site
Within the room where you want to install the fan, choose a fan
site where:
• No object can come in contact with the rotating fan blades
during normal operation.
• The fan blades are at least 7 feet above the floor and the
ceiling is at least 8 feet high.
• The fan blades have no obstructions to air flow, such as
walls or posts, within 30 inches of the fan blade tips.
• The fan is directly below a joist or support brace that will
hold the outlet box and the full weight of the fan.
See Figure 4 for the minimum mounting distances.
8' Minimum
Ceiling Height
7' Minimum
to Floor
Figure 4 - Minimum mounting distances
© 2005 Hunter Fan Company
41886-01_Rev 02.08.05.pmd 3
34 º Max
8
Pitch
12
30" From
Wall or
Nearest
Obstruction
using an existing fan site
If you are preparing a new fan site, go to the preparing a new fan
site section.
If you plan to use an existing fan site, complete the following checklist
for the support brace, ceiling hole, outlet box, and wiring. If you can-
not check off every item, see the preparing a new fan site section
for instructions on properly preparing the site for your new fan.
fan support system
• Fan must attach directly to building structure.
• Fan support system must hold full weight of fan and
light kit.
ceiling hole
• Outlet box clearance hole directly below the joist or sup-
port brace.

outlet box

• UL-approved octagonal 4" x 1-1/2" outlet box (or as speci-
fied by the support brace manufacturer).
• Outlet box secured to joist or support brace by wood
screws and washers through inner holes of outlet box.
• Outer holes of outlet box aligned with joist or sup-
port brace.
• Bottom of outlet box recessed a minimum of 1/16" into
ceiling.
wiring
• Electrical cable secured to outlet box by approved con-
nector.
• Six inches of lead wires extend from outlet box.
See Figure 5 for an adequate existing fan site.
Support Brace
Approved
Connector
Washer
Wood Screw
Figure 5 - Adequate existing fan site
If your existing fan site is suitable, go to the installing the ceiling
plate section and begin installing your new Hunter fan.
preparing a new fan site
To prepare the fan site follow four steps:
• Cutting the Ceiling Hole
• Installing the Support Brace (if necessary)
• Installing the Outlet Box
• Preparing the Wiring
2/8/05, 5:14 PM
3
Ceiling Joist
Ceiling
Outlet Box
