Hunter ceiling fan Installation Manual
Ceiling fan
Hide thumbs
Also See for ceiling fan:
- Installation manual (24 pages) ,
- User manual (22 pages) ,
- Owner's manual (21 pages)
Table of Contents
Advertisement
Quick Links
Table of Contents
Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan please visit:
www.HunterFan.com/register

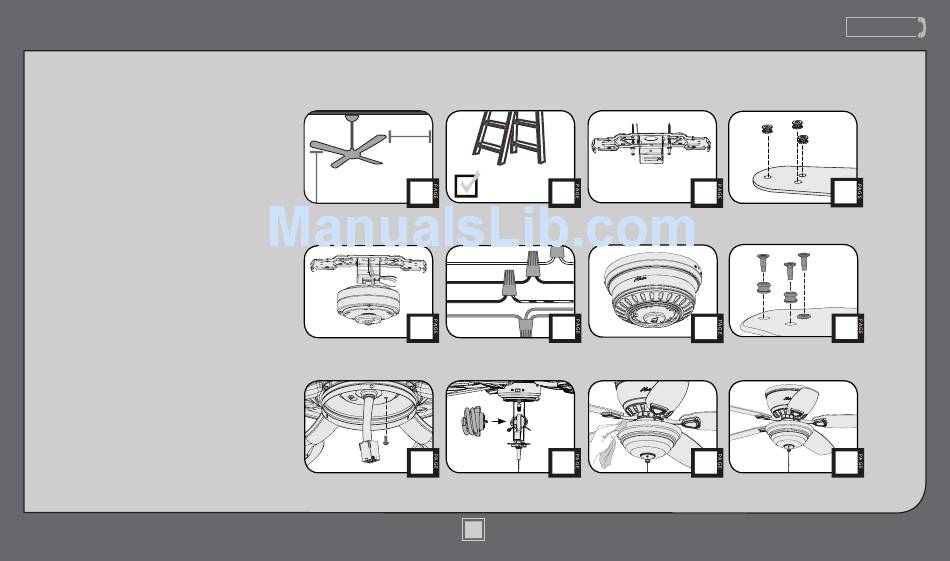

What to Expect with
Your Installation
Tools Needed
30 inches
7 feet
2
Hanging the Fan
6
Switch Housing
Light Kit
10
1
M0024-01 • 11/28/12 • © Hunter Fan Company
Ceiling Bracket
Ladder
3
Wiring
Motor Housing
7
Maintenance,
Operation & Cleaning
11
www.HunterFan.com
1.888.830.1326
Preparation
4
5
Blades
8
9
Troubleshooting
?
?
?
13
14
Advertisement
Table of Contents
Related Manuals for Hunter ceiling fan
Summary of Contents for Hunter ceiling fan
- Page 1 What to Expect with Your Installation Tools Needed Ceiling Bracket Preparation Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance 30 inches in your home or office for many years. This installation and operation 7 feet...
-
Page 2: What To Expect With Your Installation
- To reduce the risk of fire, electrical shock, or motor You may need a damage, use only Hunter Solid State Speed Controls. friend to help you. w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. -
Page 3: Tools Needed
Tools Needed www.HunterFan.com 1.888.830.1326 Power Drill 9/64” Drill Bit Screwdrivers Ladder (optional) (optional) If mounting to a support structure, you will also need these tools. M0024-01 • 11/28/12 • © Hunter Fan Company... -
Page 4: Ceiling Bracket
To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the Refer to warning w.1 on pg. 2 outlet box associated with the wall switch location. M0024-01 • 11/28/12 • © Hunter Fan Company... - Page 5 Ceiling Bracket (continued) Preparation www.HunterFan.com www.HunterFan.com 1.888.830.1326 1.888.830.1326 Time Saver Tip: Get a helper to insert grommets, found in hardware bag, into the blades while you’re doing the next couple of steps. M0024-01 • 11/28/12 • © Hunter Fan Company...
-
Page 6: Hanging The Fan
Be sure the ground wire attached the motor to the ceiling bracket. to the hanger faces out of the large opening in the ceiling bracket. Note: Fan style may vary. M0024-01 • 11/28/12 • © Hunter Fan Company... - Page 7 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M0024-01 • 11/28/12 • © Hunter Fan Company...
-
Page 8: Motor Housing
Tighten all four in the housing locks into place with the notch screws securely. in the ceiling bracket. The motor housing is not secured until the next step is complete. Do not leave unattended. M0024-01 • 11/28/12 • © Hunter Fan Company... - Page 9 Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning agents may damage the finishes. M0024-01 • 11/28/12 • © Hunter Fan Company...
-
Page 10: Switch Housing
Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all three assembly screws could result in the switch housing fixture falling. M0024-01 • 11/28/12 • © Hunter Fan Company... -
Page 11: Light Kit
Failure to properly secure all three Go to www.HunterFan.com/FAQs and click assembly screws could result in the light fixture falling. “How do I install my fan without the light kit?” M0024-01 • 11/28/12 • © Hunter Fan Company... -
Page 12: Operation Instructions
Note: Glass shade style and number of lights may vary. M0024-01 • 11/28/12 • © Hunter Fan Company... - Page 13 Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly. For questions regarding removing a light kit, call customer service 1-888-830-1326. M0024-01 • 11/28/12 • © Hunter Fan Company...
-
Page 14: Troubleshooting
Hunter Energy Efficient Light Kit: firmly left or right to ensure that If your Hunter Energy Efficient Light Kit fails at any time the fan. within two years after the date of sale due to a defect in it is engaged.
