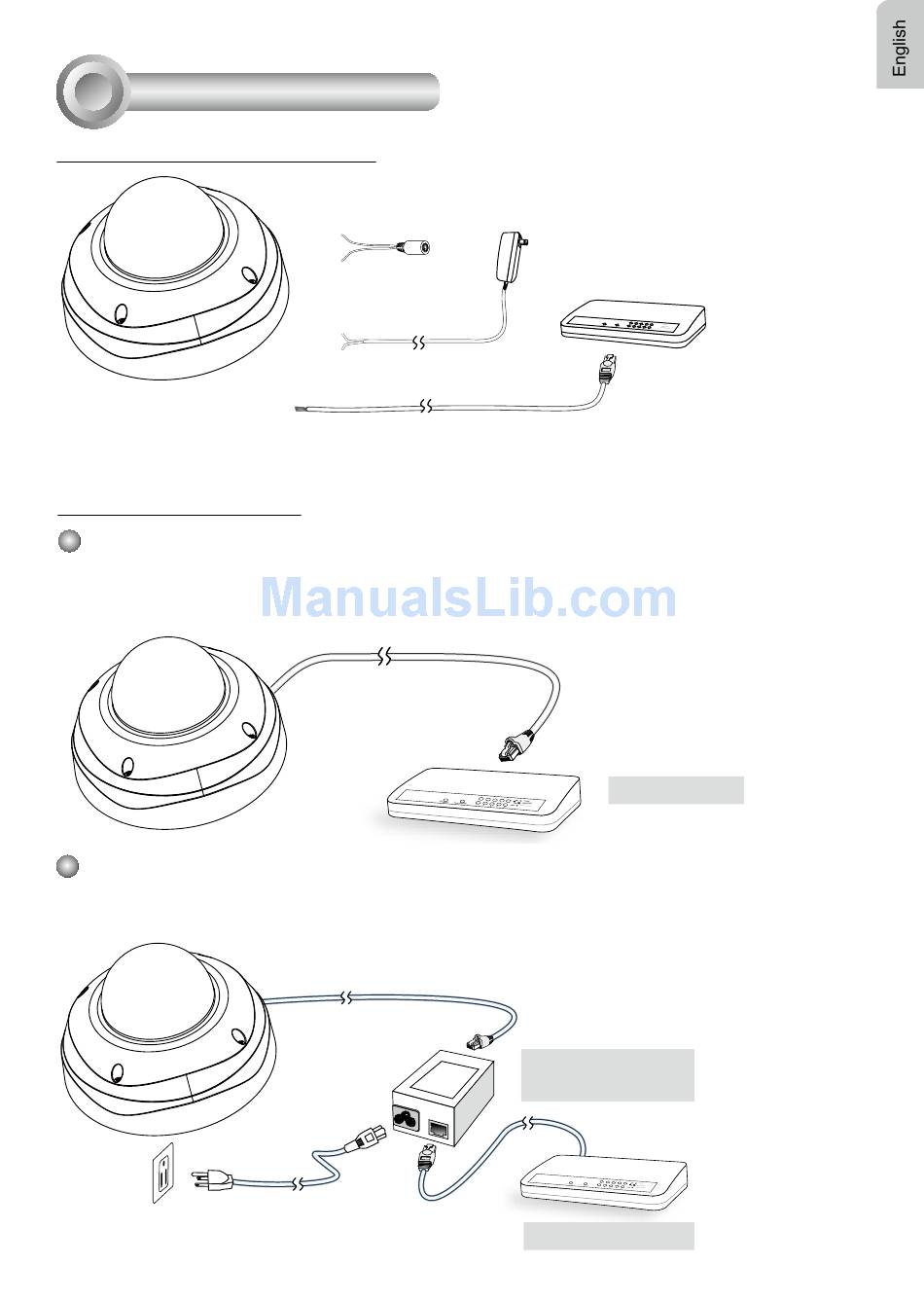

Network Deployment

General Connection (without PoE)
1. Connect RJ45 Ethernet cable to a switch.
Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single Eth-
ernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch
via Ethernet cable.
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE
switch.
Pin 1 DC 12V
Pin 2
Pin 3
Pin 4
AC 24V±10%
2. Connect the AC cables from the terminal
block as an alternate power source. The IO
cables are user-supplied.
PoE Power Injector
Non-PoE Switch
