Vivotek FD8361 Quick Installation Manual
2 mp h.264 day&night vandal-proof network camera
Hide thumbs
Also See for FD8361:
- Technical specifications (2 pages) ,
- User manual (159 pages) ,
- Specification (6 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Vivotek FD8361
Summary of Contents for Vivotek FD8361

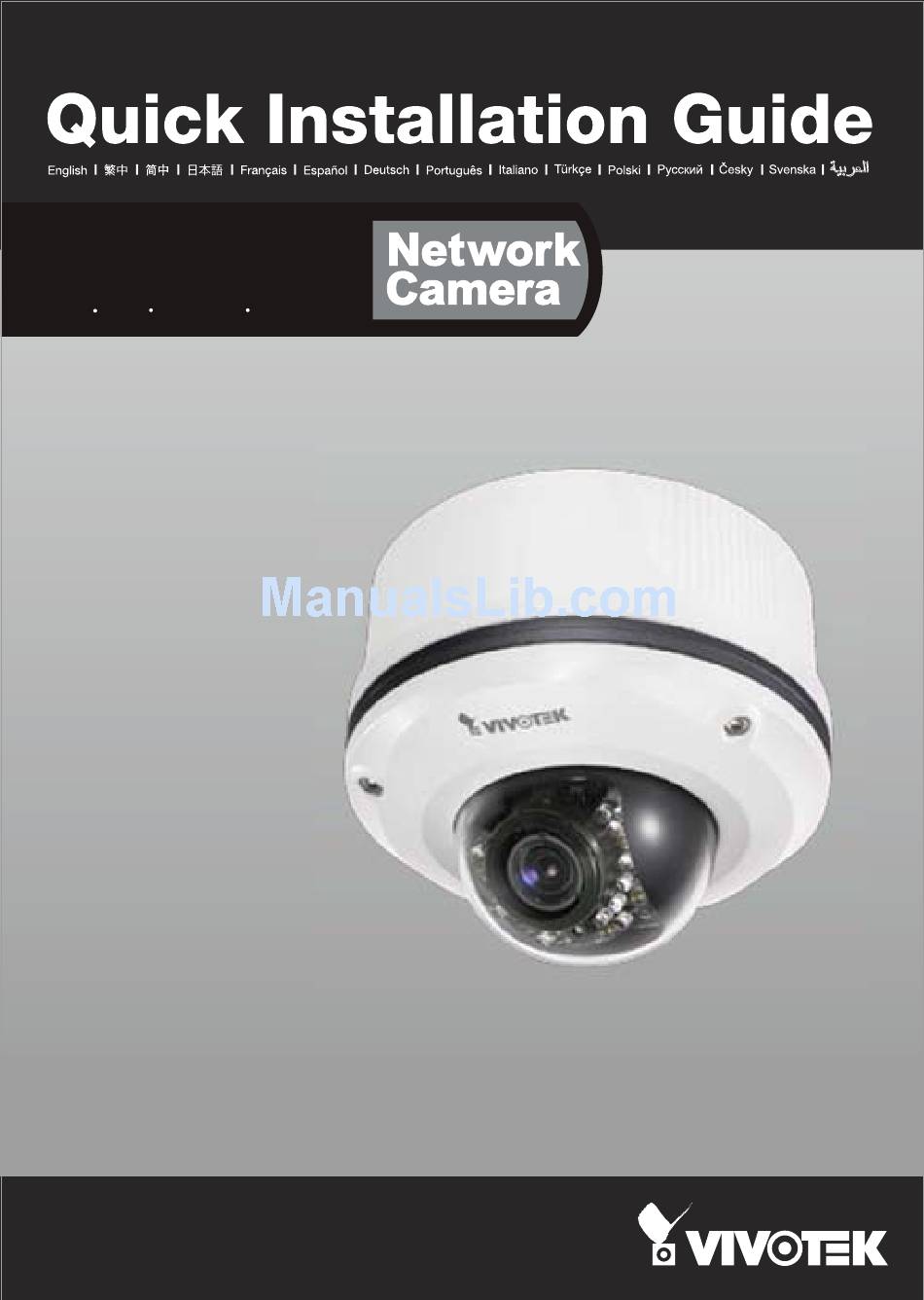

- Page 1 FD8361 2 MP H.264 Day&Night Vandal-proof...
- Page 2 Warning Before Installation Power off the Network Camera as Refer to your user's manual for the soon as smoke or unusual odors are operating temperature. detected. Contact your distributor in the event of occurrence. Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces.
-
Page 3: Package Contents
Ceiling Hole Template Sticker L-type Hex Key Wrench / RJ45 Female/Female Coupler / Slica Gel / Screws Quick Installation Guide / Software CD Warranty Card FD8361 2 MP H.264 Day&Night Vandal-proof P/N:625010100G Ver.1.0 Copyright 2009 VIVOTEK INC. All rights reserved. EN - 2... -
Page 4: Physical Description
Physical Description Inner View IR LEDs (18 units, Vari-focal Lens distance 20m) (f= 3~9 mm) Light Sensor SD/SDHC Card Slot Rotation Adjustment Screw Tilt Adjustment Screw Pan Adjustment Screw NTSC/PAL Video Output Switch Status LED Reccessed Reset Button Focus Controller Zoom Controller BNC Video Output General I/O Terminal Block... - Page 5 Record the MAC address under the camera base before installing Network Camera the camera. RoHS Model No: FD8361 MAC:0002D1083236 CLASS A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 6: Hardware Installation
Hardware Installation First, use a screwdriver to loose the three screws and detach the dome cover from the camera base. Then, follow the steps below to install the camera to either a ceiling or a wall. Ceiling mount (with the bottom base) 1. - Page 7 Wall mount (with the bottom base) 1. Attach the supplied alignment sticker to the wall. 2. Using the 10 circles on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall. Then hammer the four supplied plastic anchors into the holes. 3.
-
Page 8: Network Deployment
Drop-ceiling mount (without the bottom base) 1. Attach the supplied ceiling hole template sticker to the ceiling. 2. Open a hole along the inner circle of the sticker. 3. Using the 3 circles on the sticker, drill 3 pilot holes into the ceiling. Then hammer the three supplied plastic anchors into the holes. -
Page 9: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a... -
Page 10: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer. -
Page 11: Ready To Use
Ready to Use 1. Access the Network Camera from the LAN. 2. Retrieve live video through web browser or recording software. For further setup, please refer to the user's manual on the software CD. EN - 10... -
Page 12: Adjusting The Lens
Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by doing the following: To adjust the viewing angle -- 3-axis mechanism design 1. Loosen the pan adjustment screw and then turn the lens module left and right. Upon completion, tighten the screw. - Page 13 Completion 1. Rotate the black cover inside the dome cover to fit the lens shooting direction. 2. Attach the dome cover to the camera. 3. Secure the three dome screws with the supplied screwdriver. Finally, make sure all parts of the camera are securely installed. EN - 12...
- Page 14 P/N:625010100G Ver.1.0 Copyright 2009 VIVOTEK INC. All rights reserved.
