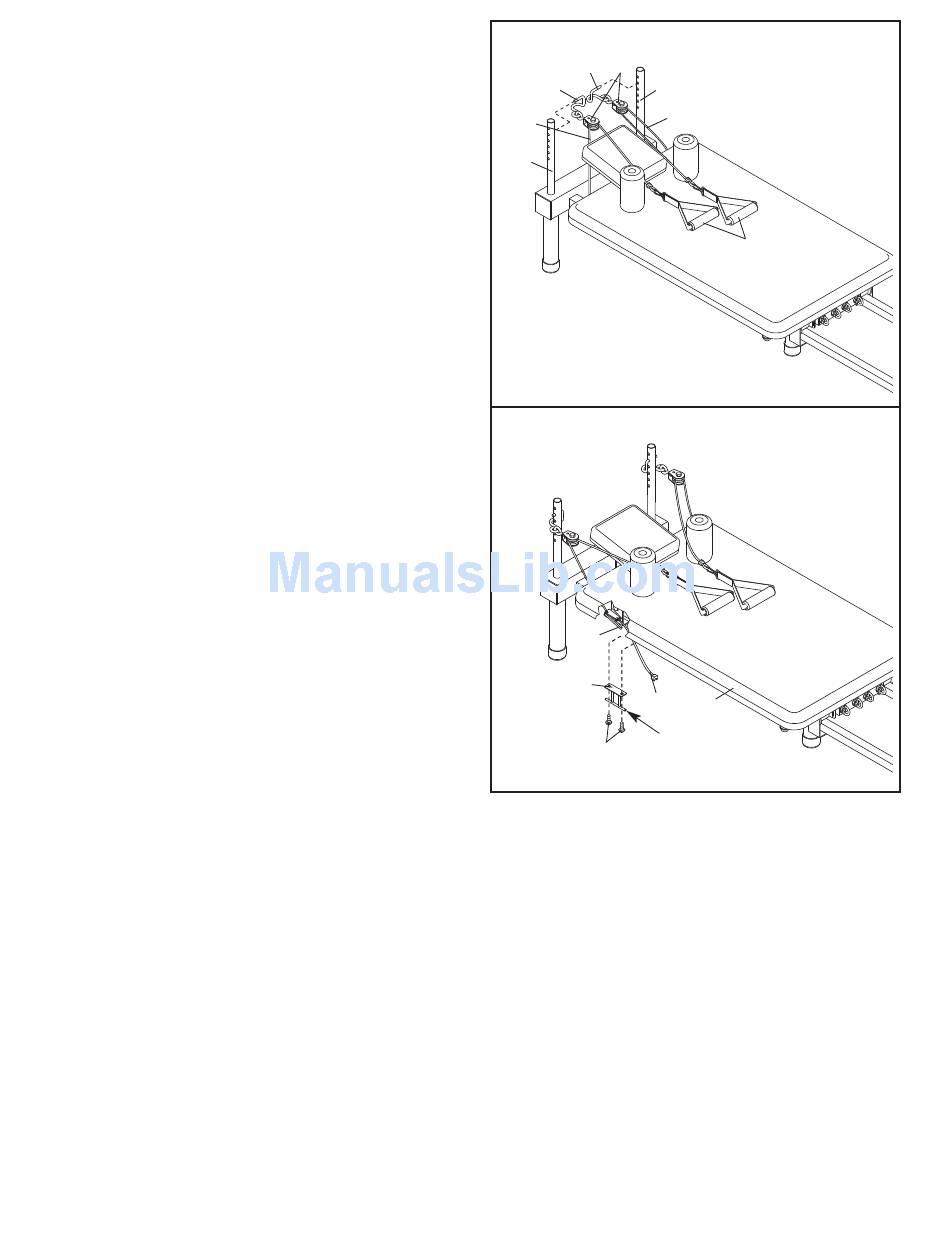

9. Orient the two Pulley Housings (26) as shown.
Slide the Eyebolt/Pins (19, 20) into a set of holes
in the Pulley Tubes (12).
Attach the two Handles (24) to the two Nylon
Ropes (23).
10. Attach a Rope Storage Bracket (31) to the
Carriage (6) with two M6 x 15mm Screws (33).
Pull the Nylon Rope (23) through the Rope Grip
(28). Press the lever on the Rope Grip to hold the
Nylon Rope.
Wrap the Nylon Rope (23) around the Rope
Storage Bracket (31). Press the end of the Rope
onto the indicated bar on the Rope Storage
Bracket to keep it from unwinding.
Repeat this step on the other side of the
Carriage (6).
11. Make sure that all parts have been properly tightened. The use of the remaining parts will be
explained in ADJUSTMENTS, beginning on the following page.
9
19 26
20
23
12
10
28
31
33
7
12
23
24
23
6
Bar
