Korenix JetNet 5728G series User Manual

Industrial managed ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

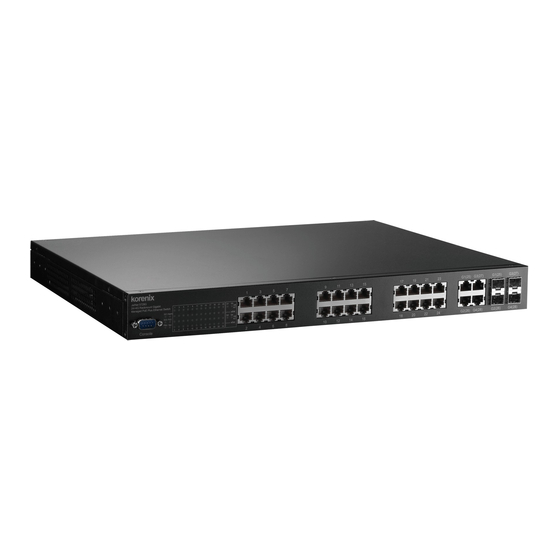

Korenix JetNet 5728G series
Industrial Managed Ethernet Switch
User Manual
Ver. 1.0, 10-Aug, 2010
www.korenix.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 5728G series and is the answer not in the manual?

Questions and answers

Related Manuals for Korenix JetNet 5728G series

Summary of Contents for Korenix JetNet 5728G series

  • Page 1 Korenix JetNet 5728G series Industrial Managed Ethernet Switch User Manual Ver. 1.0, 10-Aug, 2010 www.korenix.com...

  • Page 2: User Manual

    Korenix JetNet 5728G series Industrial Managed Ethernet Switch User Manual Copyright Notice Copyright  2010 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
  • Page 3 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Index Introduction ......................2 Overview ....................2 Major Features ................... 2 Package List ....................3 Hardware Installation .....................4 Hardware Introduction ................5 Wiring Power Inputs .................. 6 Power Supply Specifications ..............7 Wiring Digital Output ................8 Wiring Earth Ground ................. 9 Wiring Fast Ethernet Ports .................
  • Page 5 5.14 Pin Assignment of the RS-232 Console Cable ........123 5.15 Korenix SFP family ................124 5.16 Korenix Private MIB................128 5.17 Revision History ..................129 5.18 About Korenix ..................130...

  • Page 6: Introduction

    1.3 Package Checklist Overview .JetNet 5728G series is rackmount High-Port Density and Gigabit Managed Industrial PoE switch, designed exclusively for highly critical PoE applications such as real time IP video surveillance with high resolution quality and the evolving wireless communication systems such as Wimax and 802.11 a/b/g/n Access Points.

  • Page 7: Package List

    12.8G Non-Blocking backplane, 16K MAC table for wire speed bidirectional switching IEEE 1588 PTP compliance for precise time synchronization Korenix patented MSR for aggregating up to 12 x 100Mb plus 2 Gigabit rings Supports up to 9,216 bytes Jumbo Frame for secured large file transmission IEEE 802.1AB LLDP and optional JetView Pro i2NMS software for auto-topology and large...

  • Page 8: Hardware Installation

    2 Hardware Installation This chapter includes hardware introduction, installation and configuration information. Following topics are covered in this chapter: 2.1 Hardware Introduction Dimension Panel Layout Bottom View 2.2 Wiring Power Inputs 2.3 Wiring Digital Input 2.4 Wiring Relay Output 2.5 Wiring Ethernet Ports 2.6 Wiring Combo Ports 2.7 Wiring RS-232 console cable 2.8 DIN-Rail Mounting Installation...

  • Page 9: Hardware Introduction

    Hardware Introduction Dimension JetNet 5728G Industrial Gigabit Switch dimension (H x W x D) is 43.8mm x 431mm x 375mm...

  • Page 10: Wiring Power Inputs

    Panel Layout The front panel includes up to 24 10/100Mbps Fast Ethernet ports, 4 combo Gigabit Ethernet ports, SFP slot, RS-232 console port, System / Combo Port LED and up to 24 PoE LED. The back panel of the JetNet 5728G Industrial Gigabit Managed Switch consists of two DC power inputs, 1 AC Input, 1 Relay Output.

  • Page 11: Power Supply Specifications

    1. Insert positive and negative wires into V+ and V- contacts respectively of the terminal block connector. 2. Tighten the wire-clamp screws to prevent DC wires from being loosened. 3. DC1 and DC2 support polarity reverse protection functions. Note 1: It is a good practice to turn off input and load power.. Otherwise, your screwdriver blade can inadvertently short your terminal connections to the grounded enclosure.

  • Page 12: Wiring Digital Output

    Jetnet 5728G-24P Power Supply Input Range Fuse Power Consumption Type Rating Worst Case 48 VDC 44 VDC 57 VDC 1.5A(F) 369.6W 369.6W 53 VDC 50 VDC 57 VDC 1.5A(F) 568W 720W Jetnet 5728G-16P Power Supply Input Range Fuse Power Consumption Type Rating Worst Case...

  • Page 13: Wiring Earth Ground

    Wiring Earth Ground To ensure the system will not be damaged by noise or any electrical shock, we suggest you to make exact connection with JetNet 5728G with Earth Ground. On the back panel of JetNet 5728G, there is one earth ground screw. Loosen the earth ground screw by screw drive;...

  • Page 14: Wiring Combo Ports

    Table: RJ45 PoE pin-out assignment Wiring RS-232 Console Cable Korenix attaches one RS-232 DB-9 cable in the box. Connect the DB-9 connector to the COM port of your PC, open Terminal tool and set up serial settings to 9600, N,8,1. (Baud Rate: 9600 / Parity: None / Data Bit: 8 / Stop Bit: 1) Then you can access CLI interface by console able.

  • Page 15: Rack Mounting Installation

    2.10 Rack Mounting Installation The Rack Mount Kit is attached inside the package. 2.8.1 Attach the brackets to the device by using the screws provided in the Rack Mount kit. 2.8.2 Mount the device in the 19’ rack by using four rack-mounting screws provided by the rack manufacturer.

  • Page 16: Preparation For Management

    3 Preparation for Management JetNet 5728G series Industrial Managed Switch provides both in-band and out-band configuration methods. You can configure the switch via RS-232 console cable if you don’t attach your admin PC to your network, or if you lose network connection to your JetNet 5728G.

  • Page 17: Preparation For Web Interface

    3.2.1 Web Interface Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network. Before you attempt to use the embedded web interface to manage switch operation,...
  • Page 18 3.2.2 Secured Web Interface Korenix web management page also provides secured management HTTPS login. All the configuration commands will be secured and will be hard for the hackers to sniff the login password and configuration commands.

  • Page 19: Preparation For Telnet Console

    3.3.1 Telnet Korenix JetNet 5728G supports Telnet console. You can connect to the switch by Telnet and the command lines are the same as what you see by RS-232 console port. Below are the steps to open Telnet connection to the switch.
  • Page 20 Download PuTTY: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html The copyright of PuTTY 1. Open SSH Client/PuTTY In the Session configuration, enter the Host Name (IP Address of your JetNet 5728G) and Port number (default = 22). Choose the “SSH” protocol. Then click on “Open” to start the SSH session console.
  • Page 21 3. After few seconds, the SSH connection to JetNet 5728G is opened. You can see the login screen as the below figure. 4. Type the Login Name and its Password. The default Login Name and Password are admin / admin. 5.

  • Page 22: Feature Configuration

    Then you can remotely connect to its embedded HTML web pages or Telnet console. Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network.

  • Page 23: Command Line Interface Introduction

    Command Line Interface Introduction The Command Line Interface (CLI) is the user interface to the switch’s embedded software system. You can view the system information, show the status, configure the switch and receive a response back from the system by keying in a command. There are some different command modes.
  • Page 24 Global Configuration Mode: Press configure terminal in privileged EXEC mode. You can then enter global configuration mode. In global configuration mode, you can configure all the features that the system provides you. Type interface IFNAME/VLAN to enter interface configuration mode, exit to leave. ? to see the command list.
  • Page 25 Available command lists of the global configuration mode. Switch(config)# interface fa1 Switch(config-if)# acceptable Configure 802.1Q acceptable frame types of a port. auto-negotiation Enable auto-negotiation state of a given port description Interface specific description duplex Specify duplex mode of operation for a port End current mode and change to enable mode exit Exit current mode and down to previous mode...
  • Page 26 Summary of the 5 command modes. Command Main Function Enter and Exit Method Prompt Mode User EXEC This is the first level of access. Enter: Login successfully Switch> User can ping, telnet remote Exit: exit to logout. device, and show some basic Next mode: Type enable to information enter privileged EXEC mode.
  • Page 27 Here are some useful commands for you to see these available commands. Save your time in typing and avoid typing error. ? To see all the available commands in this mode. It helps you to see the next command you can/should type as well. Switch(config)# interface (?) IFNAME Interface's name vlan...

  • Page 28: Basic Setting

    Basic Setting The Basic Setting group provides you to configure switch information, IP address, User name/Password of the system. It also allows you to do firmware upgrade, backup and restore configuration, reload factory default, and reboot the system. Following commands are included in this group: 4.2.1 Switch Setting 4.2.2 Admin Password 4.2.3 IP Configuration...
  • Page 29 System Name: You can assign a name to the device. The available characters you can input is 64. After you configure the name, CLI system will select the first 12 characters as the name in CLI system. System Location: You can specify the switch’s physical location here. The available characters you can input are 64.
  • Page 30 You can change the user name and the password here to enhance security Figure 4.2.2.1 Web UI of the Admin Password User name: You can key in new user name here. The default setting is admin. Password: You can key in new password here. The default setting is admin. Confirm Password: You need to type the new password again to confirm it.
  • Page 31 specified will be used instead. IP Address: You can assign the IP address reserved by your network for your JetNet. If DHCP Client function is enabled, you don’t need to assign an IP address to the JetNet, as it will be overwritten by DHCP server and shown here. The default IP is 192.168.10.1. Subnet Mask: You can assign the subnet mask for the IP address here.
  • Page 32 IEEE 1588: With the Precision Time Protocol IEEE 1588 there is now, for the first time, a standard available which makes it possible to synchronize the clocks of different end devices over a network at speeds faster than one microsecond. To enable IEEE 1588, select Enable in PTP Status and choose Auto, Master or Slave Mode.
  • Page 33 25 (GMT) Casablanca, Monrovia 26 (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 27 (GMT+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna 28 (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague 29 (GMT+01:00) Brussels, Copenhagen, Madrid, Paris 30 (GMT+01:00) Sarajevo, Skopje, Sofija, Vilnius, Warsaw, Zagreb 31 (GMT+01:00) West Central Africa 32 (GMT+02:00) Athens, Istanbul, Minsk 33 (GMT+02:00) Bucharest...
  • Page 34 4.2.5 Jumbo Frame What is Jumbo Frame? The typical Ethernet frame is range from 64 to 1518 bytes. This is sufficient for general usages. However, when users want to transmit large files, the files may be divided into many small size packets. While the transmitting speed becomes slow, long size Jumbo frame can solve the issue.
  • Page 35 Once you have finished the configuration, click Apply to apply your configuration Excluded Address: You can type a specific address into the IP Address field for the DHCP server reserved IP address. The IP address that is listed in the Excluded Address List Table will not be assigned to the network device.
  • Page 36 DHCP Leased Entries: JetNet 5728G provides an assigned IP address list for user check. It will show the MAC and IP address that was assigned by JetNet 5728G. Click the Reload button to refresh the listing. DHCP Relay Agent You can select to Enable or Disable DHCP relay agent function, and then select the modification type of option 82 field.
  • Page 37 browse the target folder and select existed configuration file to restore the configuration back to the switch. This mode is only provided by Web UI while CLI is not supported. TFTP Server mode: In this mode, the switch acts as TFTP client. Before you do so, make sure that your TFTP server is ready.
  • Page 38 4.2.8 Firmware Upgrade In this section, you can update the latest firmware for your switch. Korenix provides the latest firmware in Korenix Web site. The new firmware may include new features, bug fixes or other software changes. We’ll also provide the release notes for the update as well. For technical viewpoint, we suggest you use the latest firmware before installing the switch to the customer site.
  • Page 39 Figure 4.2.8.1 Main UI of Firmware Upgrade There are 2 modes for users to backup/restore the configuration file, Local File mode and TFTP Server mode. Local File mode: In this mode, the switch acts as the file server. Users can browse the target folder and then type the file name to backup the configuration.
  • Page 40 Click on Folder icon to select the target firmware file you want to upgrade. Figure 4.2.8.3 Firmware Upgrade – TFTP Server mode. Type the IP address of TFTP Server and Firmware File Name. Then click on Upgrade to start the process. After finishing transmitting the firmware, the system will copy the firmware file and replace the firmware in the flash.
  • Page 41 Figure- 4.2.9.1 The main screen of the Reset to Default Figure 4.2.9.2 Popup alert screen to confirm the command. Click on Yes to start it. Figure 4.2.9.3 Popup message screen to show you that have done the command. Click on OK to close the screen.
  • Page 42 you made will be gone when the switch is powered off. Figure 4.2.10.1 Main screen for Rebooting Figure 4.2.10.2 Pop-up alert screen to request confirmation. Click on Yes. Then the switch will be rebooted immediately. Figure 4.2.10.3 Pop-up message screen appears when rebooting the switch.. 4.2.11 CLI Commands for Basic Setting Feature Command Line...
  • Page 43 Switch(config)# hostname JN5728G Switch(config)# Switch(config)# snmp-server location Taipei System Location Switch(config)# snmp-server contact korecare@korenix.com System Contact Switch# show snmp-server name Display Switch Switch# show snmp-server location Taipei Switch# show snmp-server contact korecare@korenix.com Switch> show version 0.31-20061218 Switch# show hardware mac...
  • Page 44 IPADDR Switch(config)# ntp peer primary 192.168.10.120 Switch(config)# clock timezone 26 Time Zone Sun Jan 1 04:13:24 2006 (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London Note: By typing clock timezone?, you can see the timezone list. Then choose the number of the timezone you want to select.
  • Page 45 Switch# show ip dhcp server statistics Show DHCP server Switch# show ip dhcp server statistics information DHCP Server ON Address Pool 1 network:192.168.17.0/24 default-router:192.168.17.254 lease time:300 Excluded Address List IP Address --------------- (list excluded address) Manual Binding List IP Address MAC Address --------------- -------------- (list IP &...

  • Page 46: Port Configuration

    Port Configuration Port Configuration group enables you to enable/disable port state, or configure port auto-negotiation, speed, and duplex, flow control, rate limit control and port aggregation settings. It also allows you to view port status and aggregation information. Following commands are included in this group: 4.3.1 Port Control 4.3.2 Port Status 4.3.3 Rate Control...
  • Page 47 Half Duplex(10 Half), 100M Full Duplex(100 Full), 100M Half Duplex(100 Half), 1000M Full Duplex(1000 Full), 1000M Half Duplex(1000 Half). The default mode is Auto Negotiation mode. In Flow Control column, “Symmetric” means that you need to activate the flow control function of the remote network device in order to let the flow control of that corresponding port on the switch to work.
  • Page 48 2. If the plugged DDM SFP transceiver is not certified by Korenix, the DDM function will not be supported. But the communication will not be disabled.
  • Page 49 The Storm Control is similar to Rate Control. Rate Control filters all the traffic over the threshold you input by UI. Storm Control allows user to define the Rate for specific Packet Types. Packet type: You can assign the Rate for specific packet types based on packet number per second.
  • Page 50 The aggregated ports can interconnect to the other switch which also supports Port Trunking. Korenix Supports 2 types of port trunking. One is Static Trunk, the other is 802.3ad. When the other end uses 802.3ad LACP, you should assign 802.3ad LACP to the trunk.
  • Page 51 Aggregation Status This page shows the status of port aggregation. Once the aggregation ports are negotiated well, you will see following status. Group ID: Display Trunk 1 to Trunk 8 set up in Aggregation Setting. Type: Static or LACP set up in Aggregation Setting. Aggregated Ports: When LACP links well, you can see the member ports in Aggregated column.
  • Page 52 Feature Command Line Port Control Switch(config-if)# shutdown -> Disable port state Port Control – State Port1 Link Change to DOWN interface fastethernet1 is shutdown now. Switch(config-if)# no shutdown -> Enable port state Port1 Link Change to DOWN Port1 Link Change to UP interface fastethernet1 is up now.
  • Page 53 Flow Control :off Default Port VLAN ID: 1 Ingress Filtering : Disabled Acceptable Frame Type : All Port Security : Disabled Auto Negotiation : Disable Loopback Mode : None STP Status: forwarding Default CoS Value for untagged packets is 0. Mdix mode is Disable.
  • Page 54 Storm Control - Rate Switch(config)# storm-control broadcast <0-100000> Rate limit value 0~262143 packet/sec Switch(config)# storm-control broadcast 10000 limit_rate = 10000 packets/sec Set rate limit for Broadcast packets. Switch(config)# storm-control multicast 10000 limit_rate = 10000 packets/sec Set rate limit for Multicast packets. Switch(config)# storm-control dlf 10000 limit_rate = 10000 packets/sec Set rate limit for Destination Lookup Failure packets.

  • Page 55: Power Over Ethernet

    802.3at(LLDP), 802.3at(2-Event) or forced mode. When the column is IEEE 802.3af, if and only if the PD is follow IEEE 802.3af then JetNet 5728G series could deliver power. If the Powering mode is 802.3at(LLDP) or 802.3at(2-Event), JetNet 5728G series would deliver power to PD that supports IEEE 802.3at LLDP or 2-Evnet feature.
  • Page 56 You can pull down the PoE Mode column to enable/disable ports, or set it to scheduling control mode. The Power Budget can limit the consumption of poe and ensure the poe port can get the pre-allocatied power budget. The range of Power Budget is 0.4 to 32 Watt. The max effective power budget of 802.3af powering mode is 15.4 Watt even if the power budget is set to 32 Watts.
  • Page 57 After configuring, please click the Apply button to enable and perform the configurations. DO NOT TOUCH DEVICE SURFACE DURING PoE PROGRESS HIGH POWER FEEDING Next, we illustrate how to configure IEEE 802.3at LLDP. Assume the PD is ready to the configuration for IEEE 802.3at LLDP, we only need to confirm JetNet5728G configuration.
  • Page 58 4.4.2 Emergency Power Management The JetNet 5728G series is offered with dual 48VDC power inputs for providing true network redundancy. An alarm relay output signals when a power input fails or other critical events occur. To ensure reliable power delivery, other advanced PoE power management...
  • Page 59 You can enable/disable PD Status Detection function and type in the IP address that you want to detect. The Cycle Time is the gap per detection.After configuring, please click the Apply button to enable and perform the functions. 4.4.4 PoE Scheduling The PoE Scheduling control is a powerful function to help you save power and money.
  • Page 60 4.4.5 PoE Status The PoE Status page shows the operating status of each PoE Port. The information includes PoE mode, Operation status, PD class, Power Consumption, Voltage and Current. 4.4.6 Command Line for PoE control Syntax show poe system Parameters Command Mode Enable mode Description...
  • Page 61 Utilization : 0 % Event : Normal Syntax show poe interface IFNAME Parameters IFNAME : interface name Command Mode Enable mode Description Display the PoE status of interface. Examples Switch> enable Switch# show poe interface fa1 Interface fastethernet1 (POE Port 1) Control Mode : User (Disable) Powering Mode : 802.3af Operation Status : Off...
  • Page 62 Tuesday : 0,1,2,3,4,5,6,7,8,19,20,21,22,23 Wednesday : 0,1,2,3,4,5,6,7,8,19,20,21,22,23 Thursday : 0,1,2,3,4,5,6,7,8,19,20,21,22,23 Friday : 0,1,2,3,4,5,6,7,8,19,20,21,22,23 Saturday 0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20 Syntax poe powering-mode 802.3af/forced Parameters 802.3af: deliver power if and only if the attached PD comply with IEEE 802.3af forced: deliver power no maater what PD attached Command Mode Interface mode Description...
  • Page 63 Parameters TYPE : port type string with max 20 characters Command Mode Interface mode Description Set the port type string. Examples Set the type string to “IPCam-1. Switch(config-if)# poe type IPCam-1 Syntax poe budget [POWER] Parameters POWER : 0.4 – 32 Command Mode Interface mode Description...
  • Page 64 Switch(config-if)# no poe schedule 0 Syntax poe budget DC1/DC2 [POWER] Parameters DC1 : DC 1 power input DC2 : DC 2 power input POWER : 1 – 480 Command Mode Configuration mode Description Set the power budget of DC1 or DC2 Examples Set the power budget of DC1 to 480W Switch(config)# poe budget DC1 480...

  • Page 65: Network Redundancy

    Multiple Super Ring (MSR) technology is Korenix’s 3 generation Ring redundancy technology. This is patented and protected by Korenix and is used in countries all over the world. MSR ranks the fastest restore and failover time in the world, 0 ms for restore and up milliseconds for failover for copper.
  • Page 66 RSTP Mode: You must first enable STP/RSTP mode, before configuring any related parameters. Parameter settings required for both STP and RSTP are the same. Note that 802.1d refers to STP mode, while 802.1w refers to faster RSTP mode. Bridge Configuration Priority (0-61440): RSTP uses bridge ID to determine the root bridge, the bridge with the highest bridge ID becomes the root bridge.
  • Page 67 Forward Delay Time (4-30): Enter a value between 4 and 30 seconds. This value is the time that a port waits before changing from Spanning Tree Protocol learning and listening states to forwarding state. This is the amount of time JetNet will wait before checking to see if it should be changed to a different state.
  • Page 68 The most common industrial network redundancy is to form a ring or loop. Typically, the managed switches are connected in series and the last switch is connected back to the first one. In such connection, you can implement Korenix Super Ring, Rapid Super Ring, and Multiple Super Ring technology.
  • Page 69 Ring Port2: Assign another port for ring connection Path Cost: Change the Path Cost of Ring Port2 Rapid Dual Homing: Rapid Dual Homing is an important feature of Korenix 3 generation Ring redundancy technology. When you want to connect multiple RSR or form redundant...
  • Page 70 redundancy without any problem. In Dual Homing I released with JetNet 4000/4500 series, you have to configure additional port as Dual Homing port to two uplink switches. In Rapid Dual Homing, you don’t need to configure specific port to connect to other protocol. The Rapid Dual Homing will smartly choose the fastest link for primary link and block all the other link to avoid loop.
  • Page 71 4.5.5 Command Lines: Feature Command Line RSTP Enable Switch(config)# spanning-tree enable Disable Switch (config)# spanning-tree disable RSTP mode Switch(config)# spanning-tree mode rapid-stp SpanningTree Mode change to be RST(802.1w) . STP mode Switch(config)# spanning-tree mode stp SpanningTree Mode change to be STP(802.1d) . Priority Switch(config)# spanning-tree priority <0-61440>...
  • Page 72 #Port-State Summary Blocking Listening Learning Forwarding Disabled -------- --------- -------- ---------- -------- #Port Link-Type Summary AutoDetected PointToPoint SharedLink EdgePort ------------ ------------ ---------- -------- Port Info Switch# show spanning-tree port detail fa7 (Interface_ID) Rapid Spanning-Tree feature Enabled Port 128.6 as Disabled Role is in Disabled State Port Path Cost 200000, Port Identifier 128.6 RSTP Port Admin Link-Type is Auto, Oper Link-Type is Point-to-Point RSTP Port Admin Edge-Port is Enabled, Oper Edge-Port is Edge...
  • Page 73 Switch(config-multiple-super-ring)# rapid-dual-homing port IFLIST Interface name, ex: fastethernet1 or gi8 auto-detect up link auto detection IFNAME Interface name, ex: fastethernet1 or gi8 Switch(config-multiple-super-ring)# rapid-dual-homing port fa3,fa5-6 set Rapid Dual Homing port success. Note: auto-detect is recommended for dual Homing.. Ring Info Ring Info Switch# show multiple-super-ring [Ring ID] [Ring1] Ring1...

  • Page 74: Vlan

    Layer 2 switch, without actually disconnecting these devices from their original switches. JetNet 5728G Series Industrial Ethernet Switch supports 802.1Q VLAN. 802.1Q VLAN is also known as Tag-Based VLAN. This Tag-Based VLAN allows VLAN to be created across different switches.
  • Page 75 PVID: The abbreviation of the Port VLAN ID. Enter port VLAN ID here. PVID allows the switches to identify which port belongs to which VLAN. To keep things simple, it is recommended that PVID is equivalent to VLAN IDs. The values of PVIDs are from 0 to 4095. But, 0 and 4095 are reserved. You can’t input these 2 PVIDs.
  • Page 76 Egress rule for the member ports of the VLAN. Figure 4.6.2.1 Web UI of the VLAN Configuration. Management VLAN ID: The switch supports management VLAN. The management VLAN ID is the VLAN ID of the CPU interface so that only member ports of the management VLAN can ping and access the switch.
  • Page 77 Note: Before you change the management VLAN ID by Web and Telnet, remember that the port attached by the administrator should be the member port of the management VLAN; otherwise the administrator can’t access the switch via the network. Note: Currently JetNet 5728G only support max 64 group VLAN. Static VLAN Configuration You can see the created VLANs and specify the egress (outgoing) port rule to be Untagged or Tagged here.
  • Page 78 Steps to configure Egress rules: Select the VLAN ID. Entry of the selected VLAN turns to light blue. Assign Egress rule of the ports to U or T. Press Apply to apply the setting. If you want to remove one VLAN, select the VLAN entry. Then press Remove button. 4.6.3 GVRP configuration GVRP allows users to set-up VLANs automatically rather than manual configuration on...
  • Page 79 This table shows you current settings of your VLAN table, including VLAN ID, Name, Status, and Egress rule of the ports. VLAN ID: ID of the VLAN. Name: Name of the VLAN. Status: Static shows this is a manually configured static VLAN. Unused means this VLAN is created by UI/CLI and has no member ports.
  • Page 80 Egress rule – Tagged Switch(config-if)# switchport trunk allowed vlan add 2 (for VLAN 2) Display – Port Ingress Switch# show interface fa1 Rule (PVID, Ingress Interface fastethernet1 Filtering, Acceptable Administrative Status : Enable Frame Type) Operating Status : Not Connected Duplex : Auto Speed : Auto Flow Control :off...
  • Page 81 Switch(config-if)# Switch(config-if)# description this is the VLAN 2 Switch(config-if)# no description ->Delete the description. IP address of the VLAN Switch(config)# interface vlan 2 Switch(config-if)# Switch(config-if)# ip address 192.168.10.18/24 Switch(config-if)# no ip address 192.168.10.8/24 ->Delete the IP address Create multiple VLANs Switch(config)# interface vlan 5-10 (VLAN 5-10) Shut down VLAN...

  • Page 82: Traffic Prioritization

    Traffic Prioritization Quality of Service (QoS) provides traffic prioritization mechanism which allows users to deliver better service to certain flows. QoS can also help to alleviate congestion problems and ensure high-priority traffic is delivered first. This section allows you to configure Traffic Prioritization settings for each port with regard to setting priorities.
  • Page 83 Use a Round Robin scheme. The Round Robin scheme means all the priority has the same privilege, the traffic is forward cyclic from highest to lowest. Use a strict priority scheme. Packets with higher priority in the queue will always be processed first, except that there is no packet with higher priority.
  • Page 84 After configuration, press Apply to enable the settings. 4.7.4 CLI Commands of the Traffic Prioritization Command Lines of the Traffic Prioritization configuration Feature Command Line QoS Setting Queue Scheduling – Switch(config)# qos queue-sched Round Robin Round Robin Strict Priority wrr Weighted Round Robin Switch(config)# qos queue-sched rr The queue scheduling scheme is setting to Round Robin.
  • Page 85 Note: When change the port setting, you should Select the specific port first. Ex: fa1 means fast Ethernet port 1. Display – Queue Switch# show qos queue-sched Scheduling QoS queue scheduling scheme : Weighted Round Robin (Use an 8,4,2,1 weight) Display –...
  • Page 86 DSCP-Queue Mapping Format Switch(config)# qos dscp-map PRIORITY Assign an priority (63 highest) Switch(config)# qos dscp-map 0 QUEUE Assign an queue (0-7) Format: qos dscp-map priority_value queue_value Map DSCP 0 to Queue Switch(config)# qos dscp-map 0 1 The TOS/DSCP to queue mapping is set ok. Display –...

  • Page 87: Multicast Filtering

    Multicast Filtering For multicast filtering, JetNet 5728G uses IGMP Snooping technology. IGMP (Internet Group Management Protocol) is an Internet Protocol that provides a way for internet device to report its multicast group membership to adjacent routers. Multicasting allows one computer on the internet to send data to a multitude of other computers that have identified themselves as being interested in receiving the originating computers data.
  • Page 88 IGMP Snooping Table: In the table, you can see multicast group IP address, VLAN ID it belongs to, and member ports of the multicast group. JetNet 5728G supports 256 multicast groups. Click on Reload to refresh the table. 4.8.2 IGMP Query...
  • Page 89 This page allows users to configure IGMP Query feature. Since JetNet 5728G can only be configured by member ports of the management VLAN, IGMP Query can only be enabled on the management VLAN. If you want to run IGMP Snooping feature in several VLANs, you should notice that whether each VLAN has its own IGMP Querier first.
  • Page 90 Feature Command Line IGMP Snooping IGMP Snooping - Switch(config)# ip igmp snooping Global IGMP snooping is enabled globally. Please specify on which vlans IGMP snooping enables IGMP Snooping - VLAN Switch(config)# ip igmp snooping vlan VLANLIST allowed vlan list all existed vlan Switch(config)# ip igmp snooping vlan 1-2 IGMP snooping is enabled on VLAN 1-2.
  • Page 91 ip igmp no shutdown ……. Unknown Multicast Send Unknown Switch(config)# ip igmp snooping source-only-learning Multicast to Query Ports IGMP Snooping Source-Only-Learning enabled Switch(config)# no ip igmp snooping source-only-learning Send Unknown IGMP Snooping Source-Only-Learning disabled Multicast to All Ports Switch(config)# no mac-address-table multicast filtering Flooding unknown multicast addresses ok! Discard All Unknown Switch(config)# mac-address-table multicast filtering...

  • Page 92: Snmp

    SNMP Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. JetNet 5728G series support SNMP v1 and v2c and V3. An SNMP managed network consists of two main components: agents and a manager.
  • Page 93 4.9.2 SNMP V3 Profile SNMP v3 can provide more security functions when the user performs remote management through SNMP protocol. It delivers SNMP information to the administrator with user authentication; all of data between JetNet 5728G and the administrator are encrypted to ensure secure communication.
  • Page 94 This page allows users to Enable SNMP Trap, configure the SNMP Trap server IP, Community name, and trap Version V1 or V2. After configuration, you can see the change of the SNMP pre-defined standard traps and Korenix pre-defined traps. The pre-defined traps can be found in Korenix private MIB.
  • Page 95 4.9.4 CLI Commands of the SNMP Command Lines of the SNMP configuration Feature Command Line SNMP Community Read Only Community Switch(config)# snmp-server community public ro community string add ok Read Write Community Switch(config)# snmp-server community private rw community string add ok SNMP Trap Enable Trap Switch(config)# snmp-server enable trap...

  • Page 96: Security

    4.10 Security JetNet 5728G provides several security features for you to secure your connection. The features include Port Security and IP Security. Following commands are included in this group: 4.10.1 Filter Set (Access Control List) 4.10.2 IEEE 802.1x 4.10.3 CLI Commands of the Security 4.10.1 Filter Set (Access Control List) The Filter Set is known as Access Control List feature.
  • Page 97 MAC Filter (Port Security): The MAC Filter allows user to define the Access Control List for specific MAC address or a group of MAC addresses.
  • Page 98 Filter ID/Name: The name for this MAC Filter entry. Action: Permit to permit traffic from specified sources. Deny to deny traffic from those sources. Source/Destination Address: Type the MAC address you want configure, the format is “AABB.CCDD.EEFF”. Example: “Source to Destination” is “0012.7700.0000 to 0012.7700.0002”.
  • Page 99 Once you finish configuring the settings, click on Apply to apply your configuration. IP Filter: Type ID/Name when select IP Filter. The ID for IP access list is listed as below of the field. You can also type ACL name in this field, it goes to IP Extended mode setting and support both IP Standard and IP Extended mode depend on the setting.
  • Page 100 Filter ID/Name: The ID or the name for this IP Filter entry. Action: Permit to permit traffic from specified sources. Deny to deny traffic from those sources. Source/Destination Address: Type the source/destination IP address you want configure. Source/Destination Wildcard: This command allows user to define single host or a group of hosts based on the wildcard.
  • Page 101 Note: The mask is a wildcard mask: the high-order bits of the mask that are binary zeros determine how many corresponding high-order bits in the IP address are significant. The selected action applies to any source address with these high-order bits. Protocol: Select a protocol you want associate with the filter.
  • Page 102 4.10.2 IEEE 802.1x 4.10.2.1 802.1X configuration IEEE 802.1X is the protocol that performing authentication to obtain access to IEEE 802 LANs. It is port-base network access control. With the function, JetNet 5728G could control which connection is available or not.
  • Page 103 System AuthControl: To enable or disable the 802.1x authentication. Authentication Method: Radius is a authentication server that provide key for authentication, with this method, user must connect switch to server. If user select Local for the authentication method, switch use the local user data base which can be create in this page for authentication.
  • Page 104 4.10.2.2 802.1x Port Configuration After the configuration of Radius Server or Local user list, user also need configure the authentication mode, authentication behavior, applied VLAN for each port and permitted communication. The following information will explain the port configuration. Port control: Force Authorized means this port is authorized; the data is free to in/out. Force unauthorized just opposite, the port is blocked.
  • Page 105 Tx period: the time interval of authentication request. Supplicant Timeout: the timeout for the client authenticating Sever Timeout: The timeout for server response for authenticating. Once you finish configuring the settings, click on Apply to apply your configuration. Click Initialize Selected to set the authorize state of selected port to initialize status. Click Reauthenticate Selected to send EAP Request to supplicant to request reauthentication.
  • Page 106 Disables new MAC addresses learning and aging activities! Note: Rule: Add the static MAC, VLAN and Port binding first, then enable the port security to stop new MAC learning. Disable Port Security Switch(config-if)# no switchport port-security Enable new MAC addresses learning and aging activities! Display Switch# show mac-address-table static Destination Address Address Type...
  • Page 107 RADIUS Accounting Port number NOT given. (default=1813) Secondary RADIUS Server IP : 192.168.10.250 Secondary RADIUS Server Key : 5678 Secondary RADIUS Server Port : 1812 Secondary RADIUS Accounting Port : 1813 User name/password Switch(config)# dot1x username korenix passwd korenix vlan for authentication...

  • Page 108: Warning

    4.11 Warning JetNet 5728G provides several types of Warning features for you to remote monitor the status of end devices or the change of your network. The features include Fault Relay, System Log and SMTP E-mail Alert. Following commands are included in this group: 4.11.1 Fault Relay 4.11.2 Event Selection 4.11.3 Syslog Configuration...
  • Page 109 period is 0-4294967295 seconds. How to configure: Type turn-on period and turn-off period when the time is reached, the system will turn on or off the Relay Output. Relay turn on for 5 seconds then off for 10 seconds How to turn On/Off the other device: Type “1” into the “On period” field and “0” into “Off Period”...
  • Page 110 Link: Select the port ID you want to monitor. How to configure: Select the checkbox of the Ethernet ports you want to monitor. You can select one or multiple ports. When the selected ports are linked down or broken, the system will short Relay Output and light the Alarm LED.
  • Page 111 Once you finish configuring the settings, click on Apply to apply your configuration. 4.11.2 Event Selection Event Types can be divided into two basic groups: System Events and Port Events. System Events are related to the overall function of the switch, whereas Port Events related to the activity of a specific ports System Event Warning Event is sent when…..
  • Page 112 Once you finish configuring the settings, click on Apply to apply your configuration. 4.11.3 SysLog Configuration System Log is useful to provide system administrator locally or remotely monitor switch events history. There are 2 System Log modes provided by JetNet 5728G, local mode and remote mode.
  • Page 113 Once you finish configuring the settings, click on Apply to apply your configuration. Note: When enabling Local or Both mode, you can monitor the system logs in [Monitor and Diag] / [Event Log] page. 4.11.4 SMTP Configuration JetNet 5728G supports E-mail Warning feature. The switch will send the occurred events to remote E-mail server.
  • Page 114 Field Description SMTP Server IP Address Enter the IP address of the email Server Authentication Click on check box to enable password User Name Enter email Account name (Max.40 characters) Password Enter the password of the email account Confirm Password Re-type the password of the email account You can set up to 4 email addresses to receive email alarm from JetNet Rcpt E-mail Address 1...
  • Page 115 PORTLIST port list Switch(config)# relay 1 port fa1-5 Power Failure Switch(config)# relay 1 power <1-3> power id (1: AC, 2: DC1, 3:DC2) Anyone power failure asserts relay Switch(config)# relay 1 power 1 Switch(config)# relay 1 power 2 Super Ring Failure Switch(config)# relay 1 ring Disable Relay Switch(config)# no relay...
  • Page 116 Switch(config)# smtp-server server 192.168.10.100 admin@korenix.com SMTP Email Alert set Server: 192.168.10.100, Account: admin@korenix.com ok. Receiver mail Switch(config)# smtp-server receipt 1 korecare@korenix.com SMTP Email Alert set receipt 1: korecare@korenix.com ok. Authentication with Switch(config)# smtp-server authentication username admin username and password admin password...

  • Page 117: Monitor And Diag

    4.12 Monitor and Diag JetNet 5728G provides several types of features for you to monitor the status of the switch or diagnostic for you to check the problem when encountering problems related to the switch. The features include MAC Address Table, Port Statistics, Port Mirror, Event Log and Ping.
  • Page 118 4.12.2 Port Statistics In this page, you can view operation statistics for each port. The statistics that can be viewed include Link Type, Link State, Rx Good, Rx Bad, Rx Abort, Tx Good, Tx Bad and Collision. Rx means the received packet while Tx means the transmitted packets. Note: If you see many Bad, Abort or Collision counts increased, that may mean your network cable is not connected well, the network performance of the port is poor…etc.
  • Page 119 4.12.3 Port Mirroring Port mirroring (also called port spanning) is a tool that allows you to mirror the traffic from one or more ports onto another port, without disrupting the flow of traffic on the original port. Any traffic that goes into or out of the Source Port(s) will be duplicated at the Destination Port.
  • Page 120 4.12.5 Topology Discovery JetNet 5728G supports topology discovery or LLDP (IEEE 802.1AB Link Layer Discovery Protocol) function that can help user to discovery multi-vendor’s network devicec on same segment by NMS system which supports LLDP function; With LLDP function, NMS can easier maintain the topology map, display port ID, port description, system description, VLAN ID…...
  • Page 121 4.12.6 Ping Utility This page provides Ping Utility for users to ping remote device and check whether the device is alive or not. Type Target IP address of the target device and click on Start to start the ping. After few seconds, you can see the result in the Result field. 4.12.7 CLI Commands of the Monitor and Diag Command Lines of the Monitor and Diag configuration...
  • Page 122 Feature Command Line MAC Address Table Ageing Time Switch(config)# mac-address-table aging-time 350 mac-address-table aging-time set ok! Note: 350 is the new ageing timeout value. Add Static Unicast MAC Switch(config)# mac-address-table static 0012.7701.0101 address vlan 1 interface fastethernet7 mac-address-table ucast static set ok! Note: rule: mac-address-table static MAC_address VLAN VID interface interface_name Add Multicast MAC...
  • Page 123 Good Octets: 178792, Bad Octets: 0 Unicast: 598, Broadcast: 1764, Multicast: 160 Pause: 0, Undersize: 0, Fragments: 0 Oversize: 0, Jabbers: 0, Disacrds: 0 Filtered: 0, RxError: 0, FCSError: 0 Outbound: Good Octets: 330500 Unicast: 602, Broadcast: 1, Multicast: 2261 Pause: 0, Deferred: 0, Collisions: 0 SingleCollision: 0, MultipleCollision: 0 ExcessiveCollision: 0, LateCollision: 0...

  • Page 124: Device Front Panel

    4.13 Device Front Panel Device Front Panel allows you to see LED status of the switch. You can see LED and link status of the Power, Alarm, R.S. and Ports. Feature On / Link UP Off / Link Down Other Green Black Green...

  • Page 125: Save To Flash

    4.14 Save to Flash Save Configuration allows you to save any configuration you just made to the Flash. Powering off the switch without clicking on Save Configuration will cause loss of new settings. After selecting Save Configuration, click on Save to Flash to save your new configuration.

  • Page 126: Logout

    4.15 Logout The switch provides 2 logout methods. The web connection will be logged out if you don’t input any command after 30 seconds. The Logout command allows you to manually logout the web connection. Click on Yes to logout, No to go back the configuration page. Command Lines: Feature Command Line...

  • Page 127: Appendix

    5 Appendix 5.14 Pin Assignment of the RS-232 Console Cable The total cable length is 150cm.

  • Page 128: Korenix Sfp Family

    Korenix certificated SFP transceivers when you constructing your network. Korenix will keep on certificating and updating the certificated SFP transceivers in Korenix web site and purchase list. You can refer to the web site to get the latest information about SFP transceivers.
  • Page 129 SFPGLX10B13-w 1000Base-LX single-mode, TX 1310nm/ RX 1550nm,10Km, -40℃ - 85℃ SFPGLX10B15 1000Base-LX, single-mode, TX 1550nm/ RX 1310nm,10Km, -10~70℃ SFPGLX10B15-w 1000Base-LX single-mode, TX 1550nm/ RX 1310nm,10Km, -40℃ - 85℃ SFPGLX20B13 1000Base-LX, single-mode, TX 1310nm/ RX 1550nm,10Km, -10~70℃ SFPGLX20B13-w 1000Base-LX single-mode, TX 1310nm/ RX 1550nm, 10Km, -40℃ - 85℃ SFPGLX20B15 1000Base-LX, single-mode, TX 1550nm/ RX 1310nm, 20Km, -10~70℃...
  • Page 130 Single mode 100Mbps 80Km Fiber Transceiver, wide operating temperature. SFP100SM80-w -40~85℃ SFP100SM100 Single mode 100Mbps 100KM Fiber Transceiver -10~70℃. Single mode 100Mbps 100Km Fiber Transceiver, wide operating temperature. SFP100SM100-w -40~85℃ SFP100SM120 Single mode 100Mbps 120KM Fiber Transceiver -10~70℃. Single mode 100Mbps 120Km Fiber Transceiver, wide operating temperature. SFP100SM120-w -40~85℃...
  • Page 131 Single mode 100Mbps, TX 1550nm/RX 1310nm, 60Km Fiber Transceiver, SFP100SM60B15-w -40~85℃...

  • Page 132: Korenix Private Mib

    SNMP. But, since some commands can’t be found in standard MIB, Korenix provides Private MIB to meet up the need. Compile the private MIB file by your SNMP tool. You can then use it. Private MIB can be found in product CD or downloaded from Korenix Web site.

  • Page 133: Revision History

    5.17 Revision History Edition Date Modifications V1.0 Aug. 10, 2010 The first version...

  • Page 134: About Korenix
