Korenix JetNet 5210G User Manual

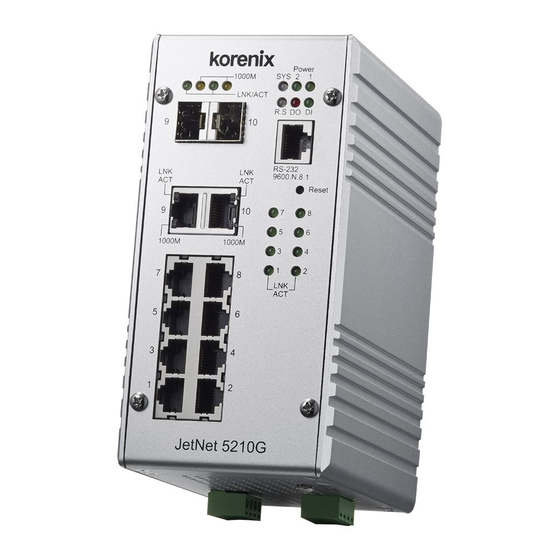

Industrial 8 + 2 gigabit rj/sfp din rail managed switch, -40-75 degrees c
Hide thumbs Also See for JetNet 5210G:
Table of Contents

Advertisement

Quick Links

JetNet 5210G User Manual
Korenix JetNet 5210G
Industrial 8 + 2 Gigabit RJ / SFP
DIN Rail Managed Switch, -40~75°C
User Manual
Ver. 1.0, Apr-2019
Firmware V1.2
www.korenix.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 5210G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Korenix JetNet 5210G

Summary of Contents for Korenix JetNet 5210G

  • Page 1 JetNet 5210G User Manual Korenix JetNet 5210G Industrial 8 + 2 Gigabit RJ / SFP DIN Rail Managed Switch, -40~75°C User Manual Ver. 1.0, Apr-2019 Firmware V1.2 www.korenix.com...
  • Page 2 Korenix JetNet 5210G Industrial 8 + 2 Gigabit RJ / SFP DIN Rail Managed Switch, -40~75°C User’s Manual Copyright Notice Copyright  2016 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
  • Page 3 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Save to Flash ........................128 4.15 Logout ..........................129 Appendix ........................130 JetNet 5210G Product Specifications ................130 Pin assignment of RS-232 serial console cable ............. 135 Korenix Private MIB ......................136 Revision History ......................137 About Korenix ........................138...

  • Page 5: Introduction

    100/1000Mbps DDM SFP transceiver for High Quality Monitoring The SFP sockets of the JetNet 5210G supports 100Mbps and 1000Mbps SFP type fiber transceiver with speed detection and independent indication. Moreover, it supports DDM (Digital Diagnostic Monitoring) type SFP transceivers allowing users to diagnose optical cable transmission problem through maintenance and debugging of the optical signal quality by DDM without the need of an extra optical cable analyzer, as a result greatly saving time and system costs.
  • Page 6 JetNet 5210G User Manual various new technologies for different network redundancy applications and structures. The supported MSR allows JetNet 5210G aggregating up to 5 Rapid Super rings includes 4 Fast Ethernet plus 1 Gigabit Ethernet rings into one switch. With the MSR technology, a node can be configured to multiple rings with the failover time.

  • Page 7: Major Features

    Outstanding Management and Enhanced Security The JetNet 5210G provides various network control and security features to ensure the reliable and secure network connection. To optimize industrial network environment the switch supports advanced network features, such as Tag VLAN, IGMP Snooping, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Rate Control, etc.
  • Page 8 JetNet 5210G User Manual  Friendly Device and Network Topology recovery utility – Korenix View, Korenix NMS  Layer 2 Network Performance – IEEE802.1Q VLAN, Private VLAN, Trunk, Packet Filtering, DHCP Server/Client, Traffic Prioritize, Rate Control  Advanced Security system by Port Security, Access IP list, SSH, HTTPS Login, TACACS+ Event Notification through E-mail, SNMP trap and SysLog ...

  • Page 9: Package List

    JetNet 5210G User Manual Package List Korenix JetNet 5210G is shipped with following items: JetNet 5210G One DIN-Rail clip (attached to the switch) One RS-232 DB-9 to RJ-45 console cable Quick Installation Guide (QIG) DB-9 to RJ-45 JetNet 5210G Cable...

  • Page 10: Hardware Installation

    JetNet 5210G User Manual Hardware Installation This chapter includes hardware introduction, installation and configuration information. Following topics are covered in this chapter: 2.1 Hardware Introduction Dimension Panel Layout Bottom View Rear Side 2.2 Wiring Power Inputs 2.3 Wiring the Relay Output (DO) 2.4 Wiring the Digital Input (DI)

  • Page 11: Hardware Introduction

    JetNet 5210G User Manual Hardware Introduction Dimension – JetNet 5210G w/o DIN Rail mounting kit: 80(W) x 127 (D)x 160(H) JetNet 5210G w/ DIN Rail mounting kit: 95(W) x 136.2 (D)x 160(H)

  • Page 12: Wiring Power Inputs

    JetNet 5210G User Manual Panel Layout The front panel includes 8 x 10/100Mbps RJ-45 ports, 2 x Gigabit Ethernet RJ-45/SFP socket ports, 1 RJ-45 for RS232 console, System diagnostic LEDs, Port LEDs. Bottom view The bottom side includes 2 4-pin terminal block connectors and 1 chassis grounding screw.

  • Page 13: Wiring The Relay Output (Do)

    JetNet 5210G User Manual For the safety issue, turn off AC power input source before connecting the AC/DC Power supply module and the terminal block connectors. Besides, don’t turn-on the source of AC/DC power module and make sure all connections were well done then power on the AC source to powering the Switch device.

  • Page 14: Wiring The Digital Input (Di)

    JetNet 5210G User Manual Wiring the Digital Input (DI) The Digital Input (D.I.) contacts are in the bottom side of the device as shown in below figure. It accepts one external DC type signal input and can be configured to send alert message through Ethernet when the signal is changed.

  • Page 15: Din Rail Mounting Installation

    JetNet 5210G User Manual Gigabit Ethernet /SFP combo port The JetNet 5210G provides 2 Gigabit RJ-45/ SFP combo ports that with different link speed – 10Mbps, 100Mbps, 1000Mbps, and compliant with the standards of IEEE 802.3 10Base-T, IEEE 82.3u 100Base-TX, IEEE 8023.u 100Base-FX, IEEE 802.3ab 1000Base-T, and IEEE 802.3z Gigabit fiber.
  • Page 16 JetNet 5210G User Manual Follow the steps below to mount JetNet Managed Switch to the DIN-Rail track: First, insert the DIN-Rail track upper side into the upper end of DIN-Rail clip. Lightly push the bottom of DIN-Rail clip into the track.

  • Page 17: Preparation For Management

    3.3 Preparation for Telnet console Preparation for Serial Console In the unit package, Korenix attached one RJ-45 to RS-232 DB-9 console cable. Please attach RS-232 DB-9 connector to your PC’s COM port, connect RJ-45 connector to the Console port of the JetNet Managed Switch. If the serial cable is lost, please follow the serial console cable PIN assignment to find one.

  • Page 18: Preparation For Web Interface

    Web Interface 3.2.1 Korenix web management page is developed by CGI (Common Gateway Interface). It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozilla, to configure and interrogate the switch from anywhere on the network.
  • Page 19 Secured Web Interface 3.2.2 Korenix web management page also provides secured management HTTPS login. All the configuration commands will be secured and will be hard for the hackers to sniff the login password and configuration commands.

  • Page 20: Preparation For Telnet Console

    Telnet 3.3.1 Korenix JetNet managed Switch supports Telnet console. You can connect to the switch by Telnet and the command lines are the same as what you see by RS232 console port. Below are the steps to open Telnet connection to the switch.
  • Page 21 JetNet 5210G User Manual In the Session configuration, enter the Host Name (IP Address of your JetNet switch) and Port number (default = 22). Choose the “SSH” protocol. Then click on “Open” to start the SSH session console. 2. After click on Open, then you can see the cipher information in the popup screen.

  • Page 22: Feature Configuration

    IP address. Then you can remotely connect to its embedded HTML web pages or Telnet console. Korenix web management page is developed by CGI (Common Gateway Interface. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozilla, to configure and interrogate the switch from anywhere on the network.

  • Page 23: Command Line Interface Introduction

    JetNet 5210G User Manual 4.3 Port Configuration 4.4 Power over Ethernet 4.5 Network Redundancy 4.6 VLAN 4.7 Private VLAN 4.8 Traffic Prioritization 4.9 Multicast Filtering 4.10 SNMP 4.11 Security 4.12 Warning 4.13 Monitor and Diag 4.14 Device Front Panel 4.15 Save 4.16 Logout...
  • Page 24 JetNet 5210G User Manual Type configure terminal to enter next mode, exit to leave. ? to see the command list Switch# archive Manage archive files clear Reset functions clock Configure time-of-day clock configure Configuration from vty interface copy Copy from one file to another...
  • Page 25 JetNet 5210G User Manual Global Configuration Mode: Press configure terminal in privileged EXEC mode. You can then enter global configuration mode. In global configuration mode, you can configure all the features that the system provides you. Type interface IFNAME/VLAN to enter interface configuration mode, exit to leave. ? to see the command list.
  • Page 26 JetNet 5210G User Manual You can then enter interface configuration mode. In this mode, you can configure port settings. The port interface name for fast Ethernet port 1 is fa1,… fast Ethernet 7 is fa7, fast Ethernet port 8 is fa8.. Gigabit Ethernet port 9 is gi9 and port 10 is gi10. Type the interface name accordingly when you want to enter certain interface configuration mode.
  • Page 27 JetNet 5210G User Manual Switch(config)# interface vlan 1 Switch(config-if)# description Interface specific description End current mode and change to enable mode exit Exit current mode and down to previous mode Interface Internet Protocol config commands list Print command list Negate a command or set its defaults...
  • Page 28 JetNet 5210G User Manual Interface configure port related IFNAME in global configuration settings. configuration mode. Exit: Type exit or Ctrl+Z to global configuration mode. Type end to privileged EXEC mode. VLAN In this mode, you can Enter: Type interface Switch(config-vlan)#...

  • Page 29: Basic Setting

    JetNet 5210G User Manual Alert message when multiple users want to configure the switch. If the administrator is in configuration mode, then the Web users can’t change the settings. JetNet Managed Switch allows only one administrator to configure the switch at a time.
  • Page 30 JetNet 5210G User Manual System Name: You can assign a name to the device. The available characters you can input is 64. After you configure the name, CLI system will select the first 12 characters as the name in CLI system.
  • Page 31 JetNet 5210G User Manual Name: You can key in new user name here. The default setting is admin. Privilege: You can choose 0 or 15 for user access. 0 for read only. 15 for read and write. New Password: You can key in new password here. The default setting is admin.
  • Page 32 JetNet 5210G User Manual Figure 4.2.2.2 Popup alert window for Incorrect Username. IP Configuration 4.2.3 This function allows users to configure the switch’s IP address settings. Below figure is the UI of IP configuraation. DHCP Client: You can select to Enable or Disable DHCP Client function. When DHCP Client function is enabled, an IP address will be assigned to the switch from the network’s...
  • Page 33 JetNet 5210G User Manual stands for 255.255.255.0. Default Gateway: You can assign the gateway for the switch here. The default gateway is 192.168.10.254. Note: In CLI, we use 0.0.0.0/0 to represent for the default gateway. Once you finish configuring the settings, click on Apply to apply your configuration.
  • Page 34 JetNet 5210G User Manual The system will update IPv6 Neighbor Table automatically, and user also can click the icon “Reload” to refresh the table. Time Setting 4.2.4 Time Setting source allow user to set the time manually or through NTP server. Network Time Protocol (NTP) is used to synchronize computer clocks on the internet.
  • Page 35 JetNet 5210G User Manual client service. NTP client will be automatically enabled if you Enable NTP client update. The system will send request packet to acquire current time from the NTP server you assigned. IEEE 1588: With the Precision Time Protocol IEEE 1588 there is now, for the first time, a...
  • Page 36 JetNet 5210G User Manual 27 (GMT+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna 28 (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague 29 (GMT+01:00) Brussels, Copenhagen, Madrid, Paris 30 (GMT+01:00) Sarajevo, Skopje, Sofija, Vilnius, Warsaw, Zagreb 31 (GMT+01:00) West Central Africa 32 (GMT+02:00) Athens, Istanbul, Minsk...
  • Page 37 JetNet 5210G User Manual Daylight Saving Time: click the check box to enable the Daylight Saving Function as the setting of start and end time or disable it. Daylight Saving Start and Daylight Saving End: the time setting allows user to selects the week that monthly basis, and sets the End and Start time individually.
  • Page 38 JetNet 5210G User Manual Excluded Address: You can type a specific address into the IP Address field for the DHCP server reserved IP address. The IP address that is listed in the Excluded Address List Table will not be assigned to the network device.
  • Page 39 JetNet 5210G User Manual DHCP Relay Agent You can select to Enable or Disable DHCP relay agent function in Option 82 Information. Helper Address: there are 4 fields for the DHCP server’s IP address. You can filll the field with prefered IP address of DHCP Server, and then click “Apply” to activate the DHCP relay agent function.
  • Page 40 JetNet 5210G User Manual Backup and Restore 4.2.6 With Backup command, you can save current configuration file saved in the switch’s flash to admin PC or TFTP server. This will allow you to go to Restore command later to restore the configuration file back to the switch. Before you restore the configuration file, you must place the backup configuration file in the PC or TFTP server.
  • Page 41 Firmware Upgrade 4.2.7 You can update the latest firmware for your device. Korenix provides the latest firmware on Korenix Web site. Updated firmware may include new features, bug fixes, or other software changes, please check the release notes for the information. We suggest you use the latest firmware before installing the switch to the customer site.
  • Page 42 JetNet 5210G User Manual There are 3 modes for users to backup/restore the configuration file, Local File mode, TFTP Server , and SFTP mode. Local File This section allows you to upload a firmware image that is stored locally on your computer.
  • Page 43 JetNet 5210G User Manual Factory Default In this section, you can reset all the configurations of the switch to default setting. Click on Reset the system will then reset all configurations to default setting. The system will show you popup message window after finishing this command. Default setting will work after rebooting the switch.
  • Page 44 Product Name : JetNet5210G Serial Number : SN15330528 MAC Address : 001277FF1533 Manufacturing Date : 2010/05/28 Software Information : Loader Version : 1.0.0.4 Firmware Version : 0.1.32-20100830-16:10:40 Copyright 2006-2009 Korenix Technology Co., Ltd.Switch# Switch# show hardware mac MAC Address : 00:12:77:FF:01:B0...
  • Page 45 JetNet 5210G User Manual Admin Password SWITCH(config)# administrator User Name and NAME Administrator account name Password SWITCH(config)# administrator orwell PASSWORD Administrator account_name account_password SWITCH(config)# administrator orwell orwell Change administrator account orwell and password orwell success. SWITCH# show administrator Display Administrator account information name: orwell&richard...
  • Page 46 JetNet 5210G User Manual weekday> <end month> <end Hour:Min> Start week of month: 1~5 Start weekday: 0 (Sunday) ~6 (Saturday) Month: 1 (Jan) ~12 (Dec) IEEE 1588 Switch(config)# ptpd run <cr> preferred-clock Preferred Clock slave Run as slave SWITCH# sh ntp associations...
  • Page 47 JetNet 5210G User Manual (list excluded address) Manual Binding List IP Address MAC Address --------------- -------------- (list IP & MAC binding entry) Leased Address List IP Address MAC Address Leased Time Remains --------------- -------------- -------------------- (list leased Time remain information for each entry) Backup and Restore Switch# copy startup-config tftp: 192.168.10.33/default.conf...

  • Page 48: Port Configuration

    JetNet 5210G User Manual Port Configuration Port Configuration group enables you to enable/disable port state, or configure port auto- negotiation, speed, and duplex, flow control, rate limit control and port aggregation settings. It also allows you to view port status and aggregation information.
  • Page 49 JetNet 5210G User Manual Fast Ethernet Port 1~8 (fa1~fa8): AutoNegotiation, 10M Full Duplex (10 Full), 10M Half Duplex (10 Half), 100M Full Duplex (100 Full) and 100M Half Duplex (100 Half). Gigabit Ethernet Port 9~10: (gi9~gi10): AutoNegotiation, 10M Full Duplex (10 Full), 10M Half Duplex (10 Half), 100M Full Duplex (100 Full), 100M Half Duplex (100 Half), 1000M Full Duplex (1000 Full), 1000M Half Duplex (1000 Half).
  • Page 50 Note: 1. Most of the SFP transceivers provide vendor information which allows your switch to read it. The UI can display vendor name, wave length and distance of all Korenix SFP transceiver family. If you see Unknown info, it may mean that the vendor doesn’t provide their information or that the information of their transceiver can’t be read.
  • Page 51 The aggregated ports can interconnect to the other switch which also supports Port Trunking. Korenix Supports 2 types of port trunking. One is Static Trunk, the other is 802.3ad. When the other end uses 802.3ad LACP, you should assign 802.3ad LACP to the trunk.
  • Page 52 JetNet 5210G User Manual Aggregation Status This page shows the status of port aggregation. Once the aggregation ports are negotiated well, you will see following status. Group ID: Display Trunk 1 to Trunk 5 set up in Aggregation Setting. Type: Static or LACP set up in Aggregation Setting.
  • Page 53 JetNet 5210G User Manual Negotiation Switch(config-if)# auto-negotiation Auto-negotiation of port 1 is enabled! Port Control – Force Switch(config-if)# speed 100 Speed/Duplex Port1 Link Change to DOWN set the speed mode ok! Switch(config-if)# Port1 Link Change to UP Switch(config-if)# duplex full...
  • Page 54 JetNet 5210G User Manual unicast frames multicast Limit Broadcast and Multicast frames Switch(config-if)# rate-limit ingress mode broadcast Set the ingress limit mode broadcast ok. Switch(config-if)# rate-limit ingress bandwidth Rate Control - <0-100> Limit in magabits per second (0 is no limit)

  • Page 55: Network Redundancy

    Multiple Super Ring (MSR) technology is Korenix’s 3 generation Ring redundancy technology. This is patented and protected by Korenix and is used in countries all over the world. MSR ranks the fastest restore and failover time in the world, 0 ms for restore and about 5 milliseconds for failover for copper.
  • Page 56 JetNet 5210G User Manual STP Configuration 4.4.1 This page allows select the STP mode and configuring the global STP/RSTP Bridge Configuraiton. The STP mode includes the STP, RSTP, MSTP and Disable. Please select the STP mode for your system first. The default mode is RSTP enabled.
  • Page 57 JetNet 5210G User Manual Bridge Configuration Bridge Address: This shows the switch’s MAC address. Priority (0-61440): RSTP uses bridge ID to determine the root bridge, the bridge with the highest bridge ID becomes the root bridge. The bridge ID is composed of bridge priority and bridge MAC address.
  • Page 58 JetNet 5210G User Manual STP Port Configuration 4.4.2 This page allows you to configure the port parameter after enabled STP or RSTP. Port Configuration Select the port you want to configure, and you will be able to view current setting and status of the port.
  • Page 59 JetNet 5210G User Manual STP Infomation 4.4.3 This page allows you to see the information of the root switch and port status. Root Information: You can see root Bridge ID, Root Priority, Root Port, Root Path Cost and the Max Age, Hello Time and Forward Delay of BPDU sent from the root switch.
  • Page 60 JetNet 5210G User Manual MSTP (Multiple Spanning Tree Protocol) Configuration 4.4.4 MSTP is the abbreviation of Multiple Spanning Tree Protocol. This protocol is a direct extension of RSTP. It can provide an independent spanning tree for different VLANs. It simplifies network management, provides for even faster convergence than RSTP by limiting the size of each region, and prevents VLAN members from being segmented from the rest of the group (as sometimes occurs with IEEE 802.1D STP).
  • Page 61 JetNet 5210G User Manual The figure shows the CST large network. In this network, a Region may have different instances and its own forwarding path and table; however, it acts as a single Brige of CST. To configure the MSTP setting, the STP Mode of the STP Configuration page should be changed to MSTP mode first.
  • Page 62 JetNet 5210G User Manual MSTP Region Configuration This page allows configure the Region Name and its Revision, mapping the VLAN to Instance and check current MST Instance configuration. The network can be divided virtually to different Regions. The switches within the Region should have the same Region and Revision leve.
  • Page 63 JetNet 5210G User Manual MSTP Port Configuration 4.4.5 This page allows configure the Port settings. Choose the Instance ID you want to configure. The MSTP enabled and linked up ports within the instance will be listed in this table. Note that the ports not belonged to the Instance, or the ports not MSTP activated will not display.
  • Page 64 JetNet 5210G User Manual shared-medium LAN segment). This function allows link status of the link to be manipulated administratively. “Auto” means to auto select P2P or Share mode. “P2P” means P2P is enabled; the 2 ends work in full duplex mode. While “Share” is enabled, it means P2P is disabled;...
  • Page 65 Ring ID. The maximum Ring number one switch can support is half of total port volume. For example, the JetNet 5210G is a 10 port Ethernet Switch design, which means maximum 5 Rings (4 100Mbps + 1 Gigabit Rings) can be aggregated in one.
  • Page 66 Ring Port2: Assign another port for ring connection Path Cost: Change the Path Cost of Ring Port2 Rapid Dual Homing: Rapid Dual Homing is an important feature of Korenix 3 generation Ring redundancy technology. When you want to connect multiple RSR or form redundant topology with other vendors,RDH could allow you to have maximum 7 multiple links for redundancy without any problem.
  • Page 67 JetNet 5210G User Manual Note: Always remember to go to Save page to save the settings. Otherwise, the settings you made will be lost when the switch is powered off. Super Chain Configuration Ring ID: The Ring Identifier referring to this Ring (Chain).
  • Page 68 JetNet 5210G User Manual This page shows the RSR information. ID: Ring ID. Version: which version of this ring, this field could be Rapid Super Ring, Super Ring, or Any Ring Role: This Switch is RM or nonRM Status: If this field is Normal which means the redundancy is approved. If any one of the link in this Ring is broken, then the status will be Abnormal.
  • Page 69 JetNet 5210G User Manual ERPS: Enable or Disable ERPS on the switch. Version: The ERPS version. This switch supports version 1. Node State: Whether the switch's ERPS state is in Disabled, Idle, or Protection mode. Node Role: If the switch is the owner of the Ring Protection Link (RPL) of the ring, set this to RPL Owner.
  • Page 70 JetNet 5210G User Manual Ring Port1: The firt port of the ring. Ring Port2: The second port of the ring. RPL Port: The blocking port of the ring ports. Revertive Mode: "Revertive" will take the reversion action, when ring nodes recover,...
  • Page 71 JetNet 5210G User Manual 4.4.11 Loop Protection Since firmware version 1.2b, the JetNet 5010G supports loop eliminate function that based on per port or system configure. It prevents any communicate looping caused by RSTP and MSR ring when ring topology change. The following figure shows the WEB UI of Loop Protection.
  • Page 72 JetNet 5210G User Manual Enter the MSTP Switch(config)# spanning-tree mst Configuration Tree MSTMAP the mst instance number or range configuration enter mst configuration mode forward-time the forward dleay time hello-time the hello time max-age the message maximum age time max-hops...
  • Page 73 JetNet 5210G User Manual Configuration Pending MST configuration Name (->The name is removed by no name) Revision 65535 Instance Vlans Mapped -------- -------------------------------------- 1,3-4094 (->Instance 2 is removed by no instance 2) ------------------------------------------------ Config HMAC-MD5 Digest: 0x3AB68794D602FDF43B21C0B37AC3BCA8 ------------------------------------------------ Apply the setting and...
  • Page 74 JetNet 5210G User Manual Link Type - P2P Switch(config-if)# spanning-tree link-type point-to-point Link Type – Share Switch(config-if)# spanning-tree link-type shared Edge Port Switch(config-if)# spanning-tree edge-port enable Switch(config-if)# spanning-tree edge-port disable MSTP Port Switch(config-if)# spanning-tree mst MSTMAP cost Configuration <1-200000000> the value of mst instance port cost Switch(config-if)# spanning-tree mst MSTMAP port-priority <0-240>...
  • Page 75 JetNet 5210G User Manual MSTP Configuraiton Switch# show spanning-tree mst configuration Current MST configuration (MSTP is Running) Name [korenix] Revision 65535 Instance Vlans Mapped -------- -------------------------------------- 1,4-4094 ------------------------------------------------ Config HMAC-MD5 Digest: 0xB41829F9030A054FB74EF7A8587FF58D ------------------------------------------------ Display all MST Switch# show spanning-tree mst...
  • Page 76 JetNet 5210G User Manual MSTP Port Switch# show spanning-tree mst interface fa1 Information Interface fastethernet1 of MST00 is Designated Forwarding Edge Port : Edge (Edge) BPDU Filter : Disabled Link Type : Auto (Point-to-point) BPDU Guard : Disabled Boundary : Internal(MSTP)
  • Page 77 JetNet 5210G User Manual Role : Disabled Ring Status : Abnormal Ring Manager : 0000.0000.0000 Blocking Port : N/A Giga Copper : N/A Configuration : Version : Rapid Super Ring Priority : 128 Ring Port : fa1, fa2 Path Cost...

  • Page 78: Vlan

    JetNet 5210G User Manual VLAN A Virtual LAN (VLAN) is a “logical” grouping of nodes for the purpose of limiting a broadcast domain to specific members of a group without physically grouping the members together. That means, VLAN allows you to isolate network traffic so that only members of VLAN could receive traffic from the same VLAN members.
  • Page 79 JetNet 5210G User Manual Management VLAN ID: The switch supports management VLAN. The management VLAN ID is the VLAN ID of the CPU interface so that only member ports of the management VLAN can ping and access the switch. The default management VLAN ID is Static VLAN: You can assign a VLAN ID and VLAN Name for new VLAN here.
  • Page 80 JetNet 5210G User Manual Figure 4.6.2-4 Configure Egress rule of the ports. -- : Not available U: Untag: Indicates that egress/outgoing frames are not VLAN tagged. T : Tag: Indicates that egress/outgoing frames are to be VLAN tagged. Steps to configure Egress rules: Select the VLAN ID. Entry of the selected VLAN turns to light blue.
  • Page 81 JetNet 5210G User Manual PVID: The abbreviation of the Port VLAN ID. Enter port VLAN ID here. PVID allows the switches to identify which port belongs to which VLAN. To keep things simple, it is recommended that PVID is equivalent to VLAN IDs.

  • Page 82: Pvlan

    JetNet 5210G User Manual Only mode means that the port can only accept tagged packets. Ingress Filtering: Ingress filtering helps VLAN engine to filter out undesired traffic on a port. When Ingress Filtering is enabled, the port checks whether the incoming frames belong to the VLAN they claimed or not.
  • Page 83 JetNet 5210G User Manual Private VLAN Type: None: The VLAN is not included in the Private VLAN. • Primary: The VLAN is the Primary VLAN. The member ports can communicate • withthe secondary VLANs Isolated: The member ports of the VLAN are isolated.
  • Page 84 JetNet 5210G User Manual Note: Always remember to go to Savepage to save the settings. Otherwise, the settings you made will be lost when the switch is powered off. Private VLAN Association Secondary VLAN: After the isolated and community VLANs are configured in the Private VLAN Configuration page, the VLANs belonging to the second VLAN are displayed.
  • Page 85 JetNet 5210G User Manual GVRP Protocol: Allow user to enable/disable GVRP globally. State: After enable GVRP globally, here still can enable/disable GVRP by port. Join Timer: Controls the interval of sending the GVRP Join BPDU. An instance of this timer is required on a per-Port, per-GARP Participant basis Leave Timer: Control the time to release the GVRP reservation after received the GVRP Leave BPDU.
  • Page 86 JetNet 5210G User Manual CLI Commands of the VLAN 4.6.4 Command Lines of the VLAN port configuration, VLAN configuration and VLAN table display Feature Command Line VLAN Port Configuration Port Switch# conf ter Interface Switch(config)# interface gi5 Configuration Switch(config-if)# VLAN Port PVID...
  • Page 87 JetNet 5210G User Manual Create VLAN (2) Switch(config)# vlan 2 vlan 2 success Switch(config)# interface vlan 2 Switch(config-if)# Note: In CLI configuration, you should create a VLAN interface first. Then you can start to add/remove ports. Default status of the created VLAN is unused until you add member ports to it.
  • Page 88 JetNet 5210G User Manual 0, missed 0 output packets 959, bytes 829280, dropped 0 output errors 0, aborted 0, carrier 0, fifo 0, heartbeat 0, window 0 collisions 0 GVRP configuration GVRP enable/disable Switch(config)# gvrp mode disable Disable GVRP feature globally on the switch...
  • Page 89 JetNet 5210G User Manual Switch(config-vlan)# private-vlan primary Isolated Type <cr> Switch(config-vlan)# private-vlan isolated Community Type <cr> Switch(config-vlan)# private-vlan community <cr> Private VLAN Port Configuraiton Go to the port Switch(config)# interface (port_number, ex: gi9) configuraiton Switch(config-if)# switchport private-vlan host-association Set the private VLAN host association...
  • Page 90 JetNet 5210G User Manual PVLAN Type Switch# show vlan private-vlan type Vlan Type Ports ---- ----------------- ----------------- primary gi10 isolated community community fa7,gi9 primary Host List Switch# show vlan private-vlan port-list Ports Mode Vlan ----- ----------- ---- normal normal normal...

  • Page 91: Traffic Prioritization

    JetNet 5210G User Manual interface gigabitethernet9 switchport access vlan add 2,5 switchport trunk native vlan 5 switchport mode private-vlan host switchport private-vlan host-association 2 3 interface gigabitethernet10 switchport access vlan add 2,5 switchport trunk native vlan 2 switchport mode private-vlan promiscuous switchport private-vlan mapping 2 add 3-5 ………...
  • Page 92 JetNet 5210G User Manual QoS Setting 4.7.1 Queue Scheduling You can select the Queue Scheduling rule as follows: Use an 8,4,2,1 weighted fair queuing scheme. This is also known as WRR (Weight Round Robin). JetNet will follow 8:4:2:1 rate to process the packets in a queue from the highest priority to the lowest.
  • Page 93 In JetNet, users can freely assign the mapping table or follow the suggestion of the 802.1p standard. Korenix uses 802.p suggestion as default values. You can find CoS values 1 and 2 are mapped to physical Queue 0, the lowest queue. CoS values 0 and 3 are mapped to physical Queue 1, the low/normal physical queue.
  • Page 94 JetNet 5210G User Manual This page is to change DSCP values to Physical Queue mapping table. Since the switch fabric of JetNet only supports 4 physical queues, Lowest, Low, Middle and High. Users should therefore assign how to map DSCP value to the level of the physical queue. In JetNet, users can freely change the mapping table to follow the upper layer 3 switch or routers’...
  • Page 95 JetNet 5210G User Manual The default port CoS value is set 7 ok. Note: When change the port setting, you should Select the specific port first. Ex: fa1 means fast Ethernet port 1. Port Setting – Trust Switch(config)# interface fa1...
  • Page 96 JetNet 5210G User Manual Map CoS 1 to Queue 0 Switch(config)# qos cos-map 1 0 The CoS to queue mapping is set ok. Map CoS 2 to Queue 0 Switch(config)# qos cos-map 2 0 The CoS to queue mapping is set ok.

  • Page 97: Multicast Filtering

    JetNet 5210G User Manual Multicast Filtering For multicast filtering, JetNet Switch uses IGMP Snooping technology. IGMP (Internet Group Management Protocol) is an Internet Protocol that provides a way for internet device to report its multicast group membership to adjacent routers. Multicasting allows one computer on the internet to send data to a multitude of other computers that have identified themselves as being interested in receiving the originating computers data.
  • Page 98 JetNet 5210G User Manual The IGMP querier periodically sends query packets to all end-stations on the LANs or VLANs that are connected to it. For networks with more than one IGMP querier, a switch with the lowest IP address becomes the IGMP querier.
  • Page 99 JetNet 5210G User Manual IGMP Snooping Global Setting Select Enable/Disable IGMP Snooping. After enabling IGMP Snooping, you can then enable IGMP Snooping for specific VLAN using the IGMP Snooping VLAN Setting table. IGMP Snooping VLAN Setting VLAN: Refers to the VLAN number that was configured using the VLAN Configuration page.
  • Page 100 JetNet 5210G User Manual GMRP Global Setting Select Enable or Disable GMRP protocol. Click Apply to apply the settings. GMRP Port Setting State: The state of the GMRP operation on a selected port. Click Apply to apply the settings. CLI Commands of the Multicast Filtering 4.8.4...
  • Page 101 JetNet 5210G User Manual Switch# sh ip igmp snooping IGMP snooping is globally enabled Vlan1 is IGMP snooping enabled Vlan2 is IGMP snooping enabled Vlan3 is IGMP snooping disabled Display – IGMP Table Switch# sh ip igmp snooping multicast all...

  • Page 102: Snmp

    JetNet 5210G User Manual SNMP Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. JetNet Manageed Switch support SNMP v1 and v2c and V3.
  • Page 103 JetNet 5210G User Manual SNMP V3 Profile 4.9.2 SNMP v3 can provide more security functions when the user performs remote management through SNMP protocol. It delivers SNMP information to the administrator with user authentication; all of data between JetNet Switch and the administrator are encrypted to ensure secure communication.
  • Page 104 Community name, and trap Version V1 or V2. After configuration, you can see the change of the SNMP pre-defined standard traps and Korenix pre-defined traps. The pre- defined traps can be found in Korenix private MIB, that included in the CD-manual or download from Korenix Web-site.
  • Page 105 JetNet 5210G User Manual CLI Commands of the SNMP 4.9.4 Command Lines of the SNMP configuration Feature Command Line SNMP Community Read Only Community Switch(config)# snmp-server community public ro community string add ok Read Write Community Switch(config)# snmp-server community private rw...

  • Page 106: Security

    JetNet 5210G User Manual Display Switch# sh snmp-server trap SNMP trap: Enabled SNMP trap community: public Switch# show running-config ..snmp-server community public ro snmp-server community private rw snmp-server enable trap snmp-server host 192.168.10.33 version 2 admin snmp-server host 192.168.10.33 version 1 admin ……..
  • Page 107 JetNet 5210G User Manual 4.10.1 Port Security Port Security feature allows you to stop the MAC address learning for specific port. After stopping MAC learning, only the MAC address listed in Port Security List can access the switch and transmit/receive traffic. This is a simple way to secure your network environment and not to be accessed by hackers.
  • Page 108 JetNet 5210G User Manual Once you finish configuring the settings, click on Apply to apply your configuration. 4.10.3 IEEE 802.1x 4.11.3.1 802.1X configuration IEEE 802.1X is the protocol that performing authentication to obtain access to IEEE 802 LANs. It is port-base network access control. With the function, JetNet Switch could...
  • Page 109 JetNet 5210G User Manual System AuthControl: To enable or disable the 802.1x authentication. Authentication Method: Radius is a authentication server that provide key for authentication, with this method, user must connect switch to server. If user select Local for the authentication method, switch use the local user data base which can be create in this page for authentication.
  • Page 110 JetNet 5210G User Manual 4.11.3.2 802.1x Port Configuration After the configuration of Radius Server or Local user list, user also need configure the authentication mode, authentication behavior, applied VLAN for each port and permitted communication. The following information will explain the port configuration.
  • Page 111 JetNet 5210G User Manual Re-Auth Period: control the Re-authentication time interval, 1~65535 is available. Quiet Period: When authentication failed, Switch will wait for a period and try to communicate with radius server again. Tx period: the time interval of authentication request.
  • Page 112 JetNet 5210G User Manual CLI Commands of the Security Command Lines of the Security configuration Feature Command Line Port Security Add MAC Switch(config)# mac-address-table static 0012.7701.0101 vlan 1 interface fa1 mac-address-table unicast static set ok! Port Security Switch(config)# interface fa1...
  • Page 113 RADIUS Accounting Port number NOT given. (default=1813) Secondary RADIUS Server IP : 192.168.10.250 Secondary RADIUS Server Key : 5678 Secondary RADIUS Server Port : 1812 Secondary RADIUS Accounting Port : 1813 User name/password Switch(config)# dot1x username korenix passwd korenix for authentication vlan 1...

  • Page 114: Warning

    JetNet 5210G User Manual Warning 4.11 JetNet Switch provides several types of Warning features for you to remote monitor the status of end devices or the change of your network. The features include Fault Relay, System Log and SMTP E-mail Alert.
  • Page 115 JetNet 5210G User Manual The Fault relay configuration UI has shown as below: The relay supports multiple event trigger function; click and select type of evnt and setting the detail information, and then click the icon “Apply” to activte the replay alarm function.
  • Page 116 JetNet 5210G User Manual Click Apply to apply the settings. Click Cancel to clear the modification. Click Reload to reload the settings. Note: Always remember to go to Save page to save the settings. Otherwise, the settings you made will be lost when the switch is powered off.
  • Page 117 JetNet 5210G User Manual Device Warm Start Reboot the device by CLI or Web UI. Authentication failure An incorrect password, SNMP Community String is entered. Time Synchronize Failure Accessing to NTP Server is failure. Power 1/ 2 Failure The power input is failure.
  • Page 118 JetNet 5210G User Manual to remote E-mail server. The receiver can then receive notification by E-mail. The E-mail warning is conformed to SMTP standard. This page allows you to enable E-mail Alert, assign the SMTP Server IP, Sender E-mail, and Receiver E-mail. If SMTP server requests you to authorize first, you can also set up the username and password in this page.
  • Page 119 JetNet 5210G User Manual JetNet (Max. 40 characters) Once you finish configuring the settings, click on Apply to apply your configuration. CLI Commands 4.12.3 Command Lines of the Warning configuration Feature Command Line Relay Output Relay Output Switch(config)# relay 1...
  • Page 120 Switch(config)# smtp-server server 192.168.10.100 ACCOUNT SMTP server mail account, ex: admin@korenix.com Switch(config)# smtp-server server 192.168.10.100 admin@korenix.com SMTP Email Alert set Server: 192.168.10.100, Account: admin@korenix.com ok. Receiver mail Switch(config)# smtp-server receipt 1 korecare@korenix.com SMTP Email Alert set receipt 1: korecare@korenix.com ok.
  • Page 121 JetNet 5210G User Manual Authentication with Switch(config)# smtp-server authentication username admin username and password admin password SMTP Email Alert set authentication Username: admin, Password: admin Note: You can assign string to username and password. Disable SMTP Switch(config)# no smtp-server enable email-alert SMTP Email Alert set disable ok.

  • Page 122: Monitor And Diag

    JetNet 5210G User Manual Monitor and Diag 4.13 JetNet Switch provides several types of features for you to monitor the status of the switch or diagnostic for you to check the problem when encountering problems related to the switch. The features include MAC Address Table, Port Statistics, Port Mirror, Event Log and Ping.
  • Page 123 MAC Address Table 4.13.2 JetNet 5210G provides 8K entries in MAC Address Table. In this page, users can change the Aging time, add Static Unicast MAC Address, monitor the MAC address or sort them by different packet types and ports. Click on Apply to change the value.
  • Page 124 JetNet 5210G User Manual Port Statistics 4.13.3 In this page, you can view operation statistics for each port. The statistics that can be viewed include Link Type, Link State, Rx Good, Rx Bad, Rx Abort, Tx Good, Tx Bad and Collision. Rx means the received packet while Tx means the transmitted packets.
  • Page 125 JetNet 5210G User Manual Port Mirroring 4.13.4 Port mirroring (also called port spanning) is a tool that allows you to mirror the traffic from one or more ports onto another port, without disrupting the flow of traffic on the original port. Any traffic that goes into or out of the Source Port(s) will be duplicated at the Destination Port.
  • Page 126 JetNet 5210G User Manual Ping 4.13.6 This page provides Ping for users to ping remote device and check whether the device is alive or not. Type Target IP address of the target device and click on Start to start the ping. After few seconds, you can see the result in the Result field.
  • Page 127 JetNet 5210G User Manual VLAN VID interface interface_name Add Multicast MAC Switch(config)# mac-address-table multicast address 0100.5e01.0101 vlan 1 interface fa6-7 Adds an entry in the multicast table ok! Note: rule: mac-address-table multicast MAC_address VLAN VID interface_list interface_name/range Show MAC Address Switch# show mac-address-table Table –...
  • Page 128 JetNet 5210G User Manual ExcessiveCollision: 0, LateCollision: 0 Filtered: 0, FCSError: 0 Number of frames received and transmitted with a length 64: 2388, 65to127: 142, 128to255: 11 256to511: 64, 512to1023: 10, 1024toMaxSize: 42 Port Mirroring Enable Port Mirror Switch(config)# mirror en Mirror set enable ok.
  • Page 129 JetNet 5210G User Manual time=0.0 ms --- 192.168.10.33 ping statistics --- packets transmitted, 5 packets received, 0% packet loss round-trip min/avg/max = 0.0/0.0/0.0 ms...

  • Page 130: Device Front Panel

    JetNet 5210G User Manual Device Front Panel 4.14 Device Front Panel commands allows you to see LED status of the switch. You can see LED and link status of the Power, DO, R.M. and Ports. Feature LED On LED Blinking...

  • Page 131: Save To Flash

    JetNet 5210G User Manual Save to Flash 4.15 Save Configuration allows you to save any configuration you just made to the Flash. Powering off the switch without clicking on Save Configuration will cause loss of new settings. After selecting Save Configuration, click on Save to Flash to save your new configuration.

  • Page 132: Logout

    JetNet 5210G User Manual Logout 4.16 The switch provides 2 logout methods. The web connection will be logged out if you don’t input any command after 30 seconds. The Logout command allows you to manually logout the web connection. Click on Yes to logout, No to go back the configuration page.

  • Page 133: Appendix

    JetNet 5210G User Manual Appendix JetNet 5210G Product Specifications...
  • Page 134 JetNet 5210G User Manual Technology IEEE Standards IEEE 802.3 10 Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet IEEE 802.3u 100 Base-FX Fast Ethernet Fiber IEEE 802.3ab 1000 Base-T IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control and Back-pressure IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1p Class of Service (CoS)
  • Page 135 Support IPv4/IPv6, v1, v2c, v3 with SNMP trap function, trap station up to 4 and can be manually configured the trap server IP address. SNMP MIB MIBII, Bridge MIB, Ethernet-like MIB, VLAN MIB, IGMP MIB, Korenix Private Korenix Utility Supports Korenix View and Korenix NMS with IEEE 802.1AB Link Layer...
  • Page 136 JetNet 5210G User Manual Network Redundancy Multiple Super Ring New generation Korenix Ring Redundancy Technology, Includes Rapid (MSR) Super Ring, Rapid Dual Homing, TrunkRing , MultiRing SuperChain and backward compatible with legacy Super Ring Rapid Dual Homing Multiple uplink paths to one or multiple upper switch...
  • Page 137 JetNet 5210G User Manual IGMP Snooping IGMP Snooping v1/v2 /v3 for multicast filtering and IGMP Query mode; also support unknown multicasting process forwarding policies- drop, flooding and forward to router port Rate Control Ingress/Egress filtering for Broadcast, Multicast, Unknown DA or All...

  • Page 138: Pin Assignment Of Rs-232 Serial Console Cable

    JetNet 5210G User Manual IEC /EN61000-6-2, IEC/EN61000-6-4 EMI: FCC Class A, CE/ Class A EMS: IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8 Warranty 5 years Pin assignment of RS-232 serial console cable The RS-232 console cabl include in the unitbox, and the connectors are RJ-45 and DB-9 female.

  • Page 139: Korenix Private Mib

    MIB, you can directly use private MIB to manage /monitor the switch, no need to learn or find where the OIDs of the commands are. The path of the JetNet 5210G is 1.3.6.1.4.1.24062.2.3.9. Below is the Private MIB tree for your reference. (Below take JetNet5310G as an example.)

  • Page 140: Revision History

    JetNet 5210G User Manual Revision History Edition Date Modifications V1.0 2019/4/11 New edit and modify from JetNet 5310G user manual.
