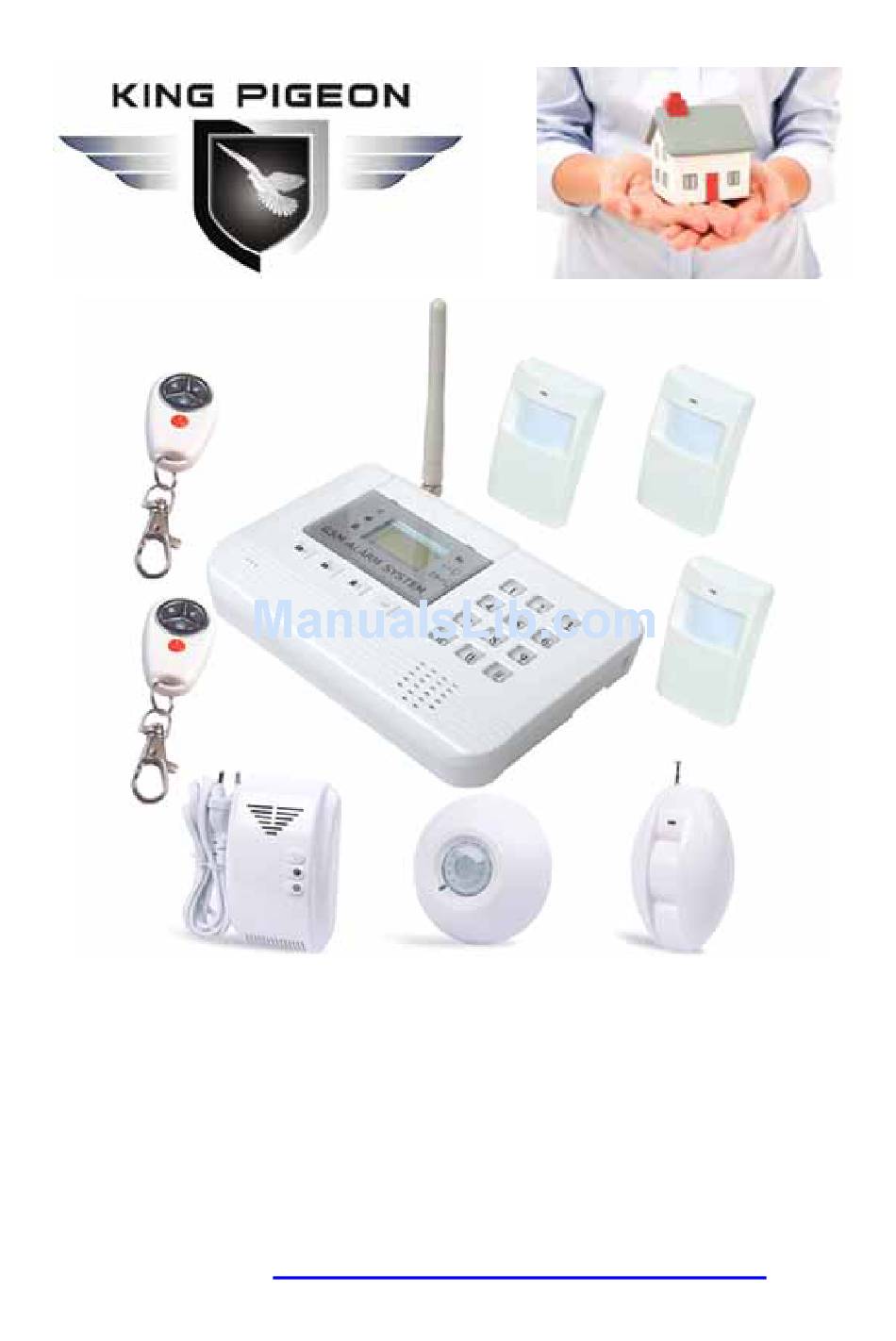

GSM House Alarm System
S100
User Manual
Ver 1.20 Date Issued: 2010-05-14
All rights reserved by King Pigeon Hi-Tech. Co., Ltd.
Website:
Http://www.GSMalarmsystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S100 and is the answer not in the manual?

Questions and answers

Related Manuals for King Pigeon S100

Summary of Contents for King Pigeon S100

  • Page 1 GSM House Alarm System S100 User Manual Ver 1.20 Date Issued: 2010-05-14 All rights reserved by King Pigeon Hi-Tech. Co., Ltd. Website: Http://www.GSMalarmsystem.com...

  • Page 2: Table Of Contents

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! Table of Contents Brief introduction -----------------------------------2 Safety Directions ------------------------------------2 Standard Packing list ------------------------------3 Physical Layout -------------------------------------3 Features ----------------------------------------------5 Settings -----------------------------------------------7 Operating Instructions --------------------------17 Installation -------------------------------------------20 Add wireless sensors ----------------------------24 Technical specifications ------------------------26 Important information ---------------------------27 Maintenance-----------------------------------------27 Quality Warranty -----------------------------------28...

  • Page 3: Brief Introduction

    A Top Safety and Protection Solution In The Worldwide! 1. Brief introduction The GSM Alarm System S100 is a new security protection solution special for home, house and office and other applications. It based on Wireless GSM Communication network, integrated Lcd Menu display and Computer technology.

  • Page 4: Standard Packing List

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! Reasonable Use Please install the product at suitable places as described in the product documentation. Avoid signal screening by covering the mainframe. Use Qualified Maintenance Service Maintenance can be carried out only by qualified maintainer. Waterproofness The product is not waterproof.
  • Page 5 PIN5 GSM Antenna,Gain:2.0dB, (Gain: 2.5dB for 3m GSM ANT ) 4.2 Working Principle Drawing The S100 works with wireless detectors only. It can switch on or off one appliance by SMS command. Please see below: King Pigeon Hi-Tech. Co., Ltd.

  • Page 6: Features

    A Top Safety and Protection Solution In The Worldwide! 5. Features 5.1 The advantages of the GSM Alarm System S100 Two-way Voice communication or wiretap are available; LCD displays the entire setup menu; Armed, Partial Armed(At House or Stay), Disarmed, SOS are available;...
  • Page 7 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! User friendly Icons for LED indicators, LCD and functional Buttons. 5.2 Functions & Features of the GSM Alarm System GSM Frequency: Dual-Band(900/1800MHz), Quad-Band is optional(850/900/1800/1900Mhz) ; Supports armed, Partial armed(At House or Stay) or disarmed, SOS by remote control or mainframe keyboard;...

  • Page 8: Settings

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! 14) Supports wiretap through the internal microphone; 15) Supports internal Speaker to special user for two-way voice communication; 16) It is Compatible with PT2262/2264 and PT2242 wireless IC; 17) Standby internal rechargeable battery which can last 12 hours; 18) Based on the GSM communication network and Operation Menu Display technology, apply to wide range situations.
  • Page 9 6.1 Key-Function Descriptions. 6.1.1 Led indicator Description The S100 uses the icons to descript the function; it will be more user friendly to user. Stay Mode indicator, on is in stay mode; Arm Mode indicator, on is in arm mode, off is in disarm mode;...
  • Page 10 SMS, otherwise, it will not display. 6.1.3 Keyboard functions The S100 uses the icons to mark the buttons; it will be more user friendly to user. : Disarm, Exit, and Backspace button. : Arm, Stay, and Up towards button.
  • Page 11 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! 6.2 Main Menu In standby mode, press the button, you can see the Menu. ---To check the settings and event records of the 1. View system ---To setup the system functions, requires password, 2.
  • Page 12 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! 1. Add/Del RF Parts ---To add or remove wireless sensors or remote controls and edit their attributes. ---To setup basic parameters of the system. 2.Basic Setting ---To setup the advanced parameters of the 3.
  • Page 13 Then following the instruction to add the new wireless sensor to the S100. For Remote control, it will display VVVV if the unit has been assigned remote control. Both of them you can press Enter to re-assign new wireless sensor or remote control to replace the existence one.
  • Page 14 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! Intrusion from Behind Balcony Normal Intrusion from 1F Window Normal Intrusion from 2F Window Normal Intrusion from Left Fence Normal Intrusion from Right Fence Normal 24-Hour zones, This attribute can not be Medical Button Alarm Gas Leakage Alarm modified.
  • Page 15 GSM Operator with different communication protocols. Our system is with the international communications protocols. The Auto-dial Tel. Number can dial to the S100, 6 tones later, can wiretap the system site. Before 6 tones, if somebody answers the calling, then can create two-way voice communication.

  • Page 16: Advanced Setting

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! For example: In China, the country code is 0086, please note, do not write +86. The user cell phone number is 13570810254 and has been assigned as a SMS Alert number, the simcard number in the panel is 13512345678.
  • Page 17 60seconds and the link-output relay will close 4 minutes. 6.3 Modify the SMS Alert Content of the Zone (Zone or Sensor Name) The S100 accept SMS Command to modify the SMS Alert Content of the zone. The format is: Password+#+M+Zone Serial Number+#+New Zone Name+#, the Max.

  • Page 18: Operating Instructions

    SMS Content: 1234#M01# Front Door Opened by Intruder!# ,the 1234 is the password. Then send it to the S100 Simcard Number. 7. Operating Instructions Tips! The user can arm/disarm/Stay (Partial armed) by Remote controls, Keyboard, SMS, also, the user can cancel the alarm by Remote Controls, Keyboard, SMS to Disarm it.
  • Page 19 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! Press the button “ ” on the remote control or Press the Arm button on the keyboard then select Stay, the Control Unit enters Stay(Partial Armed) status, the ICON will be on. In this status, the sensors had been set as Stay Type triggered will alarm, but the sensors had been set as normal Type triggered will not alarm.
  • Page 20 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! xxxxBB Example “xxxx” stands for the password 1111BB (1-4 digits). Return SMS When the Password is 1111 System deactivated. 7.2.3 Switch On the independent output relay xxxxCC Example 1111CC “xxxx” stands for the password (1-4 digits).

  • Page 21: Installation

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! Notice: The Output relay status in the Return SMS is the independent output relay status. It is not the alarm link Output Relay Status. 8. Installation Before installing the control unit and sensors and sirens, please help to test the system firstly, including wireless sensor, power supply, gsm signal, etc.
  • Page 22 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! In some circumstances an Infrared beam fence is more appropriate than magnetic sensors. i.e. veranda, picture window balcony, boundary wall e.t.c. Wireless glass break sensor can also be used (see below) For a Scrolling Steel Door, a special Wireless Scroll Steel Door magnetic sensor must be used due to interference of the wireless signal caused by the steel door.
  • Page 23 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! 8.3 Install the wireless PIR Motion Sensor The PIR sensor will detect a person since human temperature is different to ambient temperature. When triggered, the PIR will signal the Control Unit. Apply the detection area illustration below when installing.
  • Page 24 Light Siren 8.7 Install output relays. The S100 with two output relays, one is for SMS Control, another is for alarm output. Please select the one you required. The SMS control output relay is useful while you’re not at house, then you can send SMS to switch on the light, and then switch it off if you need.

  • Page 25: Add Wireless Sensors

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! will escape at once. The connections please see the photo; also, you can use any other electric equipment to instead of the lights. 9. Add Wireless Sensors to the Control Unit Notice: Some wireless sensors must be coded by manual as below 9.1 step;...
  • Page 26 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! sensors to the control units, please help to see below: 9.1 Prepare the RF Sensors of PT2262 IC Code 1) Prepare the RF sensors, Open the back cover of the Wireless sensor carefully;...

  • Page 27: Technical Specifications

    6.3. 9.4 Add Remote Controls to the Control unit: Because of both of the S100 and its remote controls are with learning code, you can add the remote control to the S100 directly following the 6.2.2.1 Add/Del RF Parts Enter the Add/Del RF Parts menu;...

  • Page 28: Important Information

    6) This product was designed for the indoor use. 7) Opening the control unit cover will avoid the warranty. 8) More information will be available of the S100, we will not inform you again after we upgraded, please check with your dealers.

  • Page 29: Quality Warranty

    www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! 3) If the Control Unit can run and sensors work, but cannot send SMS texts, please change SIM Card to check it. 4) If the problem cannot be solved, please contact the distributor or manufacturer.
  • Page 30 www.GSMalarmsystem.com A Top Safety and Protection Solution In The Worldwide! incorrect Value; sensor; 3) Haven’t pull out 3) Please pull out the wireless sensor wireless antenna; antenna; 4) Electromagnetic 4) Please install the wireless sensors or interference; alarm panel away the electric 5) The wireless receiver equipments;...
