- Page 1 GSM 3G IOT M2M Solution GSM 3G M2M RTU User Manual Ver 1.0 S27x Date Issued: 2015-04-20 All rights reserved by King Pigeon Comm.Co.,Limited. www.GSM-M2M.com...
-
Page 2: Table Of Contents
We recommend that the advice of a registered electrician be sought before any Installation work commences. King Pigeon Communication.Co.,Limited. its employees and distributors, accept no liability for any loss or damage including consequential damage due to reliance on any material contained in this handbook. -
Page 3: Brief Introduction

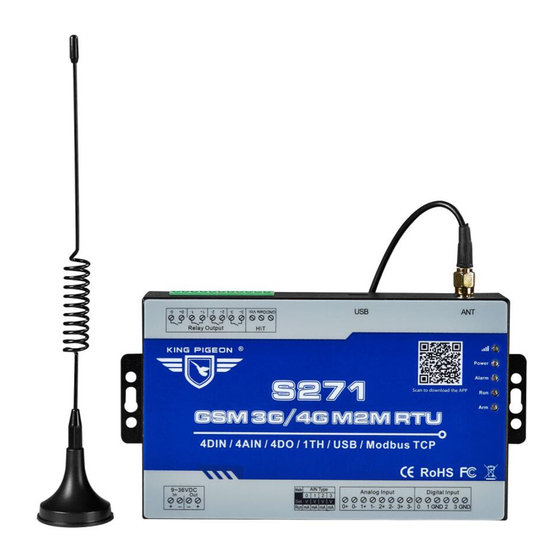

1. Brief Introduction The GSM 3G M2M RTU inbuilts ARM® Cortex™ 32 Bit RISC Core, 168 MHz inside, RTOS system. It is a multi I/O port remote terminal unit, through the RS232/485 port can extend up to 64 additional I/O or connect intelligent meters or PLC. - Page 4 GSM 3G M2M RTU Automation solution A GSM 3G DTU(GPRS 3G Data Transfer Unit). It can work with the supervisioning center, in the supervisioning center, the own can remote monitoring and control the remotely terminals by GPRS/3G/RJ45 LAN Network.This is very useful to Fuel tank monitoring, Oxygen in hospital, Flood level, street light control, wellhead control, BTS environment monitoring, power transmission system monitoring and other applications.
- Page 5 GSM 3G M2M RTU Automation solution A:I/O port connections, RS232/RS485 extend I/O ports, RS232/RS485 connects Air-Conditioners, intelligent meters, Diesel Generator, Power System, and Battery Groups via transparent protocol or Modbus RTU protocol. Under this condition, the RTU performs Modbus RTU Master;...
-
Page 6: Safety Directions
GSM 3G M2M RTU Automation solution Class 4 (2W) at EGSM 900 and EGSM 850 Transmit power Class 1 (1W) at GSM 1800 and GSM 1900 GPRS connectivity GPRS multi-slot class 10 GPRS data downlink transfer: max. 85.6 kbps GPRS Data Transmission GPRS data uplink transfer: max. -
Page 7: Physical Layout
GSM 3G M2M RTU Automation solution 3. Physical Layout LED Indicator Power The Power status indicator, when power on the LED will turn normally on. Signal GSM/3G signal indicator, GPRS Connective successful will slowly flick. Alarm Alarm Indicator, on is alarming, off is normally;... -
Page 8: Settings
4. Setting The GSM 3G M2M RTU is user-friendly design. The user can setup it or export historic data by the PC Configurator through USB cable, and upgrade firmware by USB port. The GSM 3G M2M RTU also can be configured some parameters by SMS Commands or Android APPs. -
Page 9: Sms Commands & App
2. Click Write the RTU time 3. Click Read the RTU time 5. SMS commands & APP The user can send SMS commands to setup or operate the GSM 3G M2M RTU, also can use the APP to control it easier. Page 9 of 15... - Page 10 GSM 3G M2M RTU Automation solution The SMS commands are below: 1) Commands error return SMS Event Return SMS Content Any incorrect Command SMS Format Error, Please check Caps Lock in Command! 2) External DC Status Event Return SMS Content...
- Page 11 GSM 3G M2M RTU Automation solution 6) Inquiry Current Status SMS Command SMS Command Return SMS Content password+EE Armed/Disarmed Model: Version: IMEI: GSM Signal Value: External DC Power Goes OFF/ON 7) Setup 10 User number(Alarm Number&Access Control Number), max 21digits. ( Return 0~4 or 5~9 separately while setting.)
- Page 12 GSM 3G M2M RTU Automation solution 11) Setup AIN Name(For recovery alert then the SMS will plus “Recovery”) SMS Command Return SMS Content Set AIN Name password+AIN+channel number+T+AIN Name AINx:xxxx Notice: channel number= 0~5, AIN Name max 40 characters; E.g.: 1234AIN0TDoor alarm Inquiry AIN Name password+AIN+ channel number<nnnnnnnn>...
-
Page 13: Communication Protocol
GSM 3G M2M RTU to the present HMI, OPC Server, SCADA directly. 6.1 Modbus RTU/Modbus TCP Protocol The GSM 3G M2M RTU supports standard Modbus RTU and Modbus TCP protocol, the user can use the standard Modbus RTU Server or Modbus TCP Server, e.g.: SCADA. The topological graphs please see... -
Page 14: Registers Assignment Table
PLC and so on. The user no need to create or change its present server protocol, and can use it directly. At this condition, the GSM 3G M2M RTU performs a SMS Alarm and SMS Controller and DTU and Modbus RTU Slave. The topological graphs please see below:... -
Page 15: Upgrade Firmware
Automation solution 8.Upgrade Firmware The GSM 3G M2M RTU supports upgrade firmware via USB port directly. If there any new requirements should update the firmware, the user can upgrade them directly by USB port. if you required upgrade, please contact us to modify the firmware according to you requirements, and we will provide the upgraded firmware to you to upgrade them.
