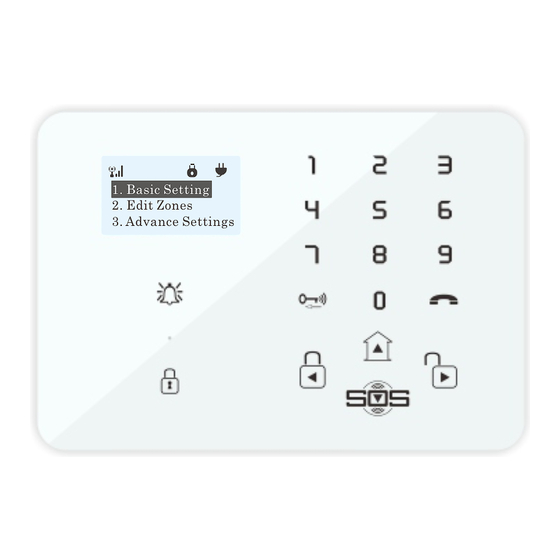

King Pigeon K9 Manual

Gsm/g wireless security alarm system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
Advantages & Features
◇ 2G/3G mobile frequency enable K9 works great in worldwide.
◇ 99 zones for security intrusion alarm, elderly care, SOS help, 7*24 hours safety,
door bell, on site alarm applications.
◇ 10 different zone types and zone name editable.
◇ Multiple status optional: Stay, Away, Bypass, Schedule Arm/Disarm.
◇ User friendly menu with more than 12 languages selectable.
◇ Visible information on big LCD screen, easy setting and operation by touch keypad.
◇ Two way voice communications, regular phone call as hand set supported.
◇ 2 wireless switch channel for remote control & door access (*works with WS1,WS2).
◇ Just simply dial in to the K9, change the status to Arm / Stay / Disarm by missed call,
or create two way talk automatically.
◇ Monitoring zone for take care of elderly daily life activities.
◇ Temperature monitoring alarm.
◇ Wireless sensors battery low power alarm SMS.
◇ Backup rechargeable battery inside, AC power lost alert available.
◇ Audible alarm inside, support wireless siren too.
◇ Ademco Contact ID protocol over GPRS/UMTS/HSDPA data supported.
◇ Fashion design of sleek panel with a classic elegant piano finish.
◇ Easy DIY--Smart phone APP for remote configuration & operation.
◇ Up to 999 alarm event logs and 99 operation logs for review.
GSM/3G Wireless
Security Alarm System
K9
1. Basic Setting
2. Edit Zones
3. Advance Settings
All rights reserved King Pigeon. www.GsmAlarmSystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K9 and is the answer not in the manual?

Questions and answers

Related Manuals for King Pigeon K9

Summary of Contents for King Pigeon K9

  • Page 1 ◇ 2 wireless switch channel for remote control & door access (*works with WS1,WS2). ◇ Just simply dial in to the K9, change the status to Arm / Stay / Disarm by missed call, or create two way talk automatically.

  • Page 2: Temperature Monitoring

    How the system works for your family? How the system works for your family? Elderly Daily Life Care Security Protection System sends alert SMS text if no activities detected by the 5th zone's PIR/Door sensor Press to arm the system when leaving home. during the monitoring time period.

  • Page 3: Control Panel Layout

    Key Buttons Control Panel Layout Away Arm Button LCD Display Setting Menu Touch Keypad Stay Arm Button All the sensors are Armed except the sensors in Inner zones which disarmed so that users can move freely at home. 1. Basic Setting 2.

  • Page 4: Bottom View

    Bottom View Wiring Connections SIM Card Slot Power Switch Mount Socket Speaker Terminal cover Alarm Interlock Reset button Wired Zone 1/2 Relay Output Temperature Sensor Tamper Switch DIN1 DIN2 NC COM NO Screw hole Alarm Output Mounting Bracket 1A 2B Install the bracket on the wall by using screws, after wiring connection and power on, plug the socket to the bracket tightly, make the tamper IP Camera...

  • Page 5: Basic Settings

    Easy Setting by Keypad Basic Settings Start: 1. View ◇ Put the mobile SIM Card to the slot. 1. Basic Setting 2. Setup 2. Edit Zones ◇ Connect the power supply, Switch ON. 3. Advance Settings ◇ On Setup mode, below buttons used for: Select Language Menu, Enter, OK 1.
  • Page 6 Setup Alert Number (Alarm Receiver) Temperature Alarm Threshold 1. Setup Language 1. Setup Language 01. Empty 1. High:99 2. Setup Time 2. Setup Time 2. Low:99 3. Setup Alert Number 3. Setup Alert Number 4. Temperature Alert 4. Temperature Alert 5.
  • Page 7 Arm Delay Time Alarm Sound Time 1. Setup Language 1. Setup Language Armed Delay Time Alarm Sound Time 2. Setup Time 2. Setup Time 3. Setup Alert Number 3. Setup Alert Number 4. Temperature Alert 4. Temperature Alert 5. Armed Alert by Sound 5.

  • Page 8: Add Remote Control

    Add Remote Control Edit Wired Zone 1 & 2 1.Basic Setting 1. Edit Remote 1. Edit Remote 1' SOS Button 2. Edit Zones 2. Edit Wired Zones 2. Edit Wired Zones Type: 24Hr Silent Zone 3. Advance Settings 3. Edit RF Detector 3.

  • Page 9: Add Wireless Sensors

    Zone Type Explanation Add Wireless Sensors When sensor triggered, Zone Type Used for Sensors the alarm system will 1. Edit Remote 1. Delete All When you arm system: 30 seconds delay enter to arm mode, so you 2. Edit Wired Zones 2.
  • Page 10 Bypass Zone Function Unique Monitoring Zone (the 5th zone) Bypass definition: A bypassed zone will not set off the alarm no matter how The special zone type for take care of elderly, FIXED in the 5th zone only. often it is tripped. With this function, you can bypass an upstairs window so that you can leave it open during the day without having to worry about it setting off your alarm.

  • Page 11: Advance Settings

    Advance Settings Remote Access Control Interlock 1. AC Loss Alert 1. Interlock Armed by call 2. RF Opener Interlock 1.Basic Setting 2. Interlock Stay by call 3. Timer 2. Edit Zones 3. Not Interlock 4. CID Protocol Over GPRS 3. Advance Settings 5.

  • Page 12: Modify Password

    Contact ID Protocol over GPRS/3G Data Wireless Switch Code 1. AC Loss Alert 1. AC Loss Alert 1. Coding 1 Please Setup it by 2. RF Opener Interlock 2. RF Opener Interlock 2. Coding 2 SMS command 3. Timer 3. Timer 3.

  • Page 13: Operation Logs

    1234CC Make audible alarm on Operation Logs Alarm sound OFF 1234DD Make audible alarm off K9 sends back the current status: AC/DC power status GSM Value: xx (01~31, less than 17 Inquiry status 1234EE means mobile signal weak.) Arm/Disarm status 1.
  • Page 14 (00~99) To reboot the alarm system by SMS. time remotely and then press the SOS(D) button immediately, K9 system will enter to Arm status without any delay. System sends “Arm by xxx”,“Disarm Arm notify 1234 # by xxx” to the 1st receiver when Armed/ Disarmed by SMS command.

  • Page 15: Alarm Process

    SMS Content list GPRS Data Function (for engineer only) Event SMS Content Remarks For engineer and remote server system only. AC/DC power lost AC Power Goes off Default: AC Power Goes off 30minutes Please ignore this part if the total quantity of the alarm system deployed less than 200pcs. AC/DC power recovery AC Power Goes on Remote Control SOS...

  • Page 16: Specifications

    Connect with Wireless Switch Connect with Wireless Siren 1. Coding 1 2. Coding 2 1. Coding 1 3. Coding 3 2. Coding 2 3. Coding 3 Works with the wireless switch WS1 (optional), you can remote open your electronic The alarm system inbuilt audible alarm function, in addition, you can also connect with lock or other devices by pressing or control by incoming phone call.

  • Page 17: Troubleshooting

    Trouble Shooting Specifications No GSM signal Safe Startup 1) Backup battery low voltage. 2) GSM Module connection loose in transportation. Do not use the alarm system when GSM/3G equipment is 3) GSM Signal is too weak. prohibited or might bring disturbance or danger. Solution 1) Plug the AC/DC Power adapter.
