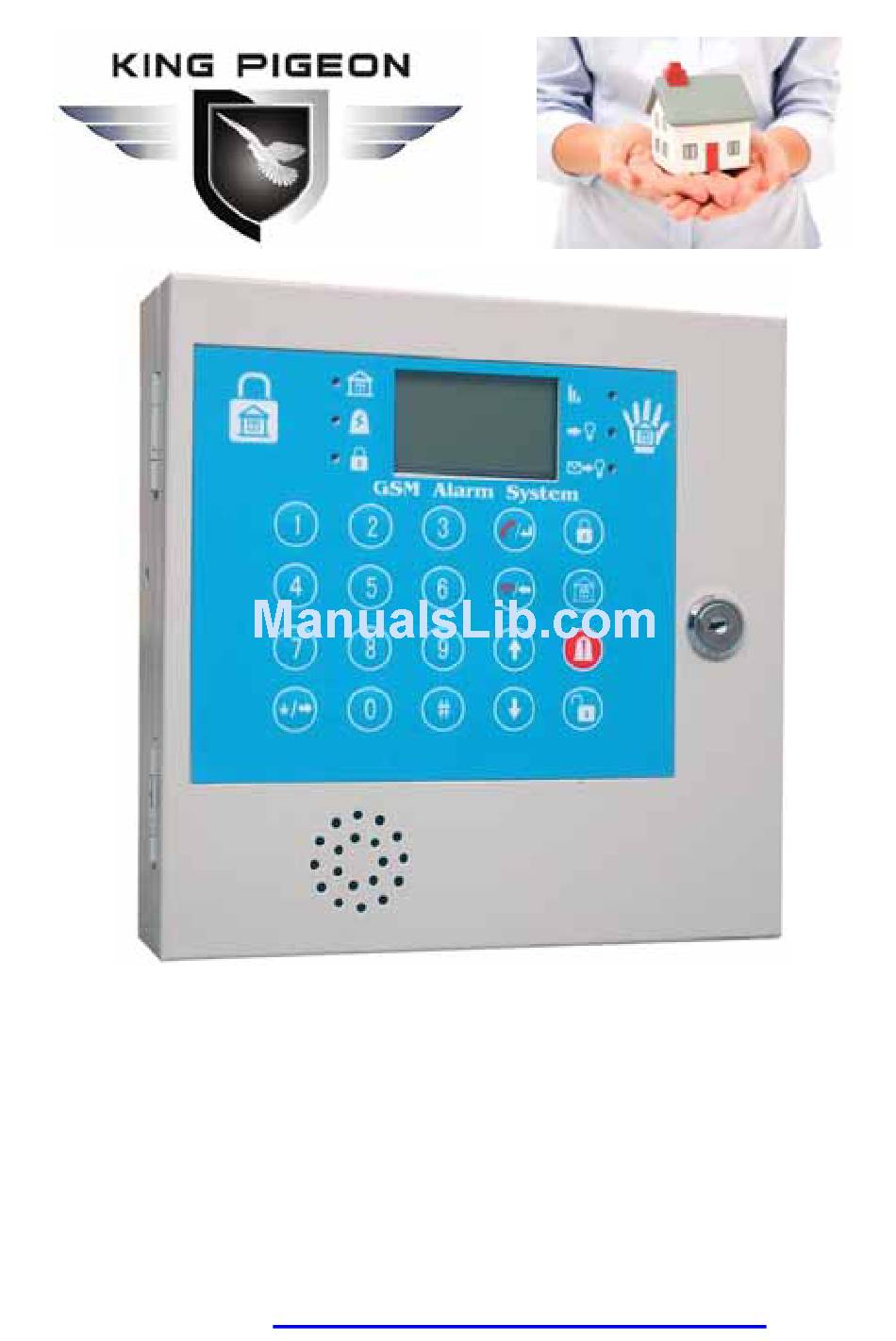

GSM Alarm System

S120

User Manual

Ver 1.00 Date Issued: 2010-09-01

Website:

Http://www.GSMalarmsystem.com

Table of Contents

Need help?

Do you have a question about the S120 and is the answer not in the manual?

Questions and answers

Summary of Contents for King Pigeon S120

Page 2: Table Of Contents
Physical Layout -------------------------------------3 Features -----------------------------------------------6 Settings -----------------------------------------------8 Operating Instructions --------------------------18 Installation -------------------------------------------21 Add wireless sensors ----------------------------26 Technical specifications ------------------------28 Important information ---------------------------29 Maintenance-----------------------------------------29 Quality Warranty -----------------------------------29 Trouble Shooting Guide-------------------------30 King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 3: Brief Introduction
A Top Safety and Protection Solution In The Worldwide! www.GSMalarmsystem.com 1. Brief introduction The GSM Alarm System S120 is a new security protection solution special for factory, industry and other large applications. It based on Wireless GSM Communication network, integrated Lcd Menu display and Computer technology.
Page 4: Standard Packing List
In order to forbidden the intruder power off the alarm system, we equipped the power switch inside, it is nearby the SIMCard socket, please pay attention to it, and don’t tell others of this. Only authorized can open it by Key. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 5 +12VDC@1A power output for wired detectors. When AC power +12V off, the power source will from Backup battery. Digital input 1-20, connect to one wire of the wired Detector. IN1~20 King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 6 Built in 240VAC@3A rated relay output, connect to the device negative electrode. 4.2 Working Principle Drawing The S120 works with wireless detectors or Wired detectors. It can switch on or off one appliance by SMS command. Please see below: 5. Features 5.1 The advantages of the GSM Alarm System S120...
Page 7: Features
Supports Timer for automatically arm or disarm the system; Supports armed delay to give enough time to you go out the home, the delay time is editable by user; King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 8 Only disarm by keyboard and modify settings requires password, the other operation needn’t password. The default password is 1234. Enter password then press Enter King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 9: Settings
6 tones, if hasn’t been answered, will hang up. If you want to test the two way voice communication, please make sure the other phone is far from the S120, at least 500meters. Otherwise, the near-cross will make lots of noise interference. 6.1 Key-Function Descriptions.
Page 10 6.1.1 Led indicator Description The S120 uses the icons to stand for the function, it is visual and intuitive to users. Stay Mode indicator, on is in stay mode; Arm Mode indicator, on is in arm mode, off is in disarm mode;...
Page 11 ---To check the report time. 7.RF Code Query ---To check the RF sensor wireless code. 8.Wired Zone Name ---To check the SMS Alert Contents of the Wired Related Zones. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 12 Alarm Action: when Alarm occurrence, the system will Automatically dial the Pre-set Auto-Dial Tel. Numbers for 3 times one by one, and Send SMS to the Pre-set SMS Alert King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 13 Then following the instruction to add the new wireless sensor to the S120. For Remote control, it will display VVVV if the unit has been assigned remote control. Both of them you can press Enter to re-assign new wireless sensor or remote control to replace the existence one.
Page 14 Zones’ Attribute definition of the wired zone is the same as the wireless zone. The S120 can accept total 20 wired sensors to 8 wired zones; each zone can be assigned one wired sensor, and renamed it by SMS Command.
Page 15 In arm or disarm or stay SOS Help! mode, once the sensor in these zones triggered will alarm immediately. But not drive the siren. 6.2.2.3 Basic Setting King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 16 GSM Operator with different communication protocols. Our system is with the international communications protocols. The Auto-dial Tel. Number can dial to the S120, 6 tones later, can wiretap the system site. Before 6 tones, if somebody answers the calling, then can create two-way voice communication.
Page 17 30Min.” to the first SMS Alert numbers after the AC power failure 30minutes, if the power is recovery then will send SMS “AC Power is OK.”. Default is disabled. There’s no delay for Stay Mode. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 18 60seconds and the link-output relay will close 4 minutes. 6.3 Modify the SMS Alert Content of the Zone (Zone or Sensor Name) The S120 accept SMS Command to modify the SMS Alert Content of the zone. For Wireless Zone Name, the format is:...
Page 19: Operating Instructions
Front Door Opened by Intruder! should edit a SMS Content: 1234#M01# Front Door Opened by Intruder!# ,the 1234 is the password. Then send it to the S120 Simcard Number. For Wired Zone Name, the format is: Password+#+Z+Zone Serial Number+#+New Zone Name+#, the Max.
Page 20 Unit receive this SMS command. 7.2.1 Armed xxxxAA Example “xxxx” stands for the password 1234AA (1-4 digits). Return SMS When the Password is 1234 All Armed Mode activated. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 21 Armed or At House or Disarmed AC Power is Ok or AC Power is failed GSM Value is 17 or other value Output Relay is Closed or Output Relay is opened Notice: King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 22: Installation
1.5 to 3.0cm. In some circumstances an Infrared beam fence is more appropriate than magnetic sensors. i.e. veranda, picture window balcony, boundary wall e.t.c. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 23 The PIR sensor will detect a person since human temperature is different to ambient temperature. When triggered, the PIR will signal the Control Unit. Apply the detection area illustration below when installing. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 24 3) If you setup the input type as EOL, then please contact a 2.2K Resistor in series with every inputs, if you don’t connect the sensor to the inputs, please connect a 2.2K King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 25 +12VDC. The 12VDC power is from external power, not from backup battery. So please note: When AC power failure, the +12VDC point will no power supply. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 26 Connect the Siren to the Control Unit and fix them in appropriate locations. Tips! The Siren should be at least 1.5meters away from the GSM SMS Controller unit, if possible, King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 27: Add Wireless Sensors
4) Also, please check the Resistors value is 3.3M Ohm, there’re 3 Jumpers, 1.5M,3.3M, and 4.7M. if you select incorrect value, the wireless distance usually very short or can not learn to the alarm panel. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 28 6.3. 9.3 Add Remote Controls to the Control unit: Because of both of the S120 and its remote controls are with learning code, you can add the remote control to the S120 directly following the 6.2.2.1 Add/Del RF Parts Enter the Add/Del RF Parts menu;...
Page 29: Technical Specifications
2) When the Backup battery is lower than 8V, the buzzer will sounds and then the control unit will power off to protect the backup battery. King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0...
Page 30: Maintenance
8) This product was designed for the indoor use. 9) Opening the control unit cover will avoid the warranty. 10) More information will be available of the S120, we will not inform you again after we upgraded, please check with your dealers.
Page 31 Watchdog zone. incorrect activated; 3) NC/NO/EOL is 3) Please check the detector NC/NO type and NC/NO/EOL Correctly, and you’re incorrect. sure connect a 2.2K Resistor in series King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
Page 32 4) Also, please help to change another command the SMS Commands. GSM Operator SIMCard to test it. The End! Any questions please help to contact us feel free. Email Us: Sales@Kingpigeon.com.cn Http://www.GSMalarmsystem.com Http://www.KingPigeon.com.cn King Pigeon Hi-Tech. Co., Ltd. Page of 32 Ver 1.0 File No.: S1200010...
