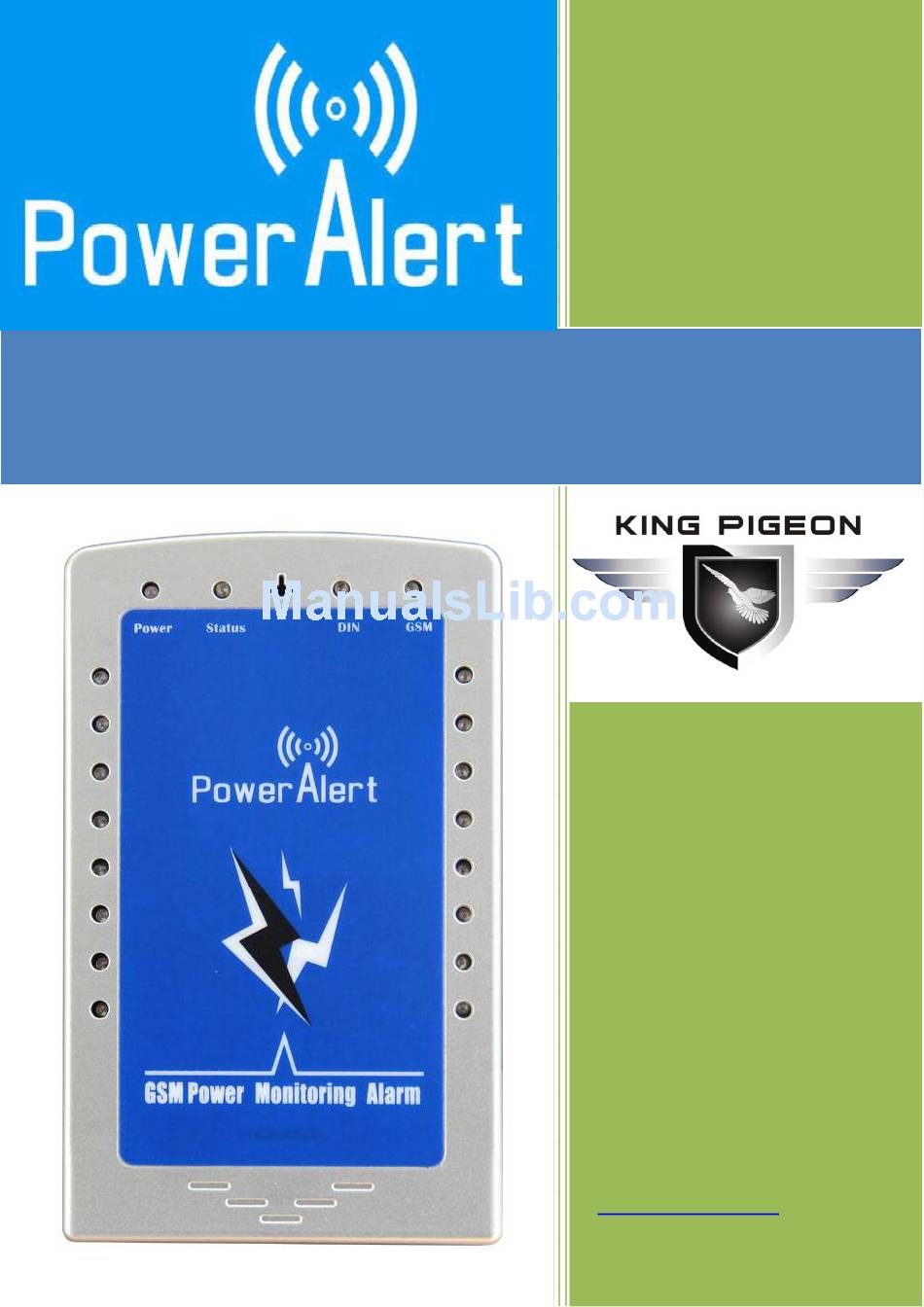

GSM SMS Alarm & Dialer
GSM SMS Voice Alarm Dialer
GSM Power Monitoring Alarm
-- Ultra Version!
Inquiry Onsite AC
Power Status with a
SMS!
Cost-Effective GSM
Dialer Solution In
The Worldwide!
User Manual
RTU5012
Ver 1.1
Date Issued: 2013-11-12
All rights reserved by King
Pigeon Hi-Tech.Co.,Ltd.
www.GSM-M2M.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for King Pigeon RTU5012
Summary of Contents for King Pigeon RTU5012
- Page 1 GSM SMS Alarm & Dialer Cost-Effective GSM -- Ultra Version! Dialer Solution In The Worldwide! GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm User Manual RTU5012 Ver 1.1 Date Issued: 2013-11-12 All rights reserved by King Pigeon Hi-Tech.Co.,Ltd. www.GSM-M2M.com...
-
Page 2: Table Of Contents
If you need the AC power monitoring function only, please read the chapter 5.7~ 5.8, 6.2, 6.14, 6.16 and chapter 7.3 to get the quickly settings to save you time. After you setup, please remove the RTU5012 AC/DC Adaptor to check if you can get SMS alert according to the 6.16 preset time. -
Page 3: Brief Introduction
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm 1. Brief introduction The GSM Dialer is an Ultra Version of GSM Alarm, includes multi-functions and ultra low cost and high reliability special for Residential areas, business area, commercial area, office, factory, industrial area and other Varity applications. -
Page 4: Standard Packing List
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm Use Qualified Maintenance Service Maintenance can be carried out only by qualified maintainer. 3. Standard Packing List GSM DialerX1 User Manual X1 Optional Accessories: (Wired detectors) PIR Motion Sensor, Glass Break Sensor, Magnetic Window Sensor, Temperature Sensor, Infrared Beam Fence, Vibration sensor, AC power status detectors. -
Page 5: Installation And Connection Diagram
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm Standby internal large capacity rechargeable battery which can standby upto 8hours after AC Power failure, also can provide power to wired siren after AC power failure; Secure - Using caller ID for identification, unknown callers are ignored; ... -
Page 6: Making The Outlets For Wires
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm Slide the SIM card completely into the slot. Make sure the SIM card goes through the 2 “guides” on the SIM card slot. Close the SIM card holder and then slide it in the opposite direction of “OPEN” to lock it. See above photo. - Page 7 GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm If the wired detectors are NC type, then the connection must be in series, see below: if the wired detectors are NO type, then the connection must be in parallel, see above. 2) Contacting the IP Camera or CCTV DVR to GSM Dialer The user can connect the IP Camera or CCTV DVR Alarm Output to the GSM Dialer’s digital input as a wired detector, once the IP camera detected intrusion or CCTV DVR alarming, the GSM...
-
Page 8: Contacting The Siren, Hooter
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm 3) Contacting the other alarm panel output to GSM Dialer The user can connect the other Alarm panel’s digital output to the GSM Dialer’s Digital Input as a wired detector, so the user can update its alarm panel as GSM SMS Alarm. The connection please reference the DVR or IP Camera. -
Page 9: Contacting The External Gsm Antenna
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm 5.6 Contacting the External GSM Antenna The GSM Dialer equips internal GSM Antenna, usually the GSM Signal is enough to register gsm network properly. But if the GSM signal is not enough, please replace it by external GSM Antenna from your distributors or agents. -
Page 10: Settings
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm The GSM Dialer should be installed in a place where the intruders cannot discover it. And the GSM Signal covered well. Also, the user can see the LED easily to know what happened and what is the status of the GSM Dialer. -
Page 11: Setup New Password
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm different functions. see the below settings: For example: In China, the country code is 0086, or +86. The user cell phone number is 13500001111 and has been assigned as a SMS Alert number, the simcard number in the panel is 13512345678. -
Page 12: Setup Authorized Number
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm 6.2 Setup Authorized number(If you GSM Operator use different number format for SMS and Dial out, then please see Notice 6, must setup as includes country code and not includes country code two formats.) Pwd+Serial Number+A+Function 1 Code+#+Function 2 code+#+Telephone Number+# Pwd is the password, default is 1234. -
Page 13: Remove The Authorized Number
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm After received this command,the GSM Dialer will return the SMS as abovementioned. E.g.: If you want to know the authorized number list, and the password is 1234, then you can send 1234A# to check it. -
Page 14: Setup The Siren Sound Time
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm =1, stands for outer zones , in Armed or Stay mode, when triggered will cause alarm. =2, stands for inner zones, in Stay mode if triggered will not cause alarm; in Armed mode, if triggered will cause alarm. -
Page 15: Enable To Alert The First Authorized Number
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm Only the zone attribute code setup as 1,2,3 will delay to enter into Arm mode when Arm the GSM Dialer; If Armed the GSM Dialer by remote control, after press the Armed Button, and press its SOS button within 2 Seconds the GSM Dialer will enter into Armed Mode immediately, will not delay. -
Page 16: Operating Instructions
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm pwd+T+xx+# XX=00~99, unit is hour, stands for the interval time to report the GSM Dialer status to the first SMS Alert Number. default is 00, means disable report function. If no SMS number, this function will be invalid. The return SMS is the same as by 7.4 Inquiry Status and GSM Module IMEI Code 7. -
Page 17: Inquiry Status And Gsm Module Imei Code
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm xxxxAA Example “xxxx” stands for the password 1234AA (4 digits). Return SMS When the Password is 1234 Armed 7.2.2 Disarm xxxxBB Example “xxxx” stands for the password 1111BB (digits). Return SMS When the Password is 1111 Disarmed 7.2.3... -
Page 18: Technical Specifications
GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm 8. Technical specifications Rated Voltage: 12VDC 2 A (12V~14VDC) Standby Consumption: 30~35mA (Not charging battery) Working Consumption: 400mA(Siren working) Working temperature: -10℃～+60℃ Storage temperature: -20℃～+60℃ Relative humidity: 10-90%, No condensation GSM frequency: 900/1800MHz(Default) or 850/1900Mhz (Optional) Communication protocol: GSM PHASE 2/2+ (include data service) Wired Zones: 1 (Dry Contact, NC or NO) - Page 19 GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm GSM Dialer Authorized Number Schedule SIMCard Number in the GSM Dialer: ___________________ Authorized Type Serial User Name Phone Number Alert when Alarm Occurrence Access the GSM Dialer Number SMS&Call Call Stay/Arm listen Refuse Notice: Please mark V if for enable and X for disable.
- Page 20 GSM SMS Voice Alarm Dialer GSM Power Monitoring Alarm AC Power Goes OFF Alert at once pwd+M+00+# AC Power Goes OFF Alert after Default is 30minutes pwd+M+xx+# 01~99 minutes Siren Response to Arm Operation pwd+ON+# Default Siren NOT Response to Arm pwd+OFF+# Operation 00～99hours,default is 00,...
