Installation Instructions
INSTALLATION BY A HVAC PROFESSIONAL IS RECOMMENDED

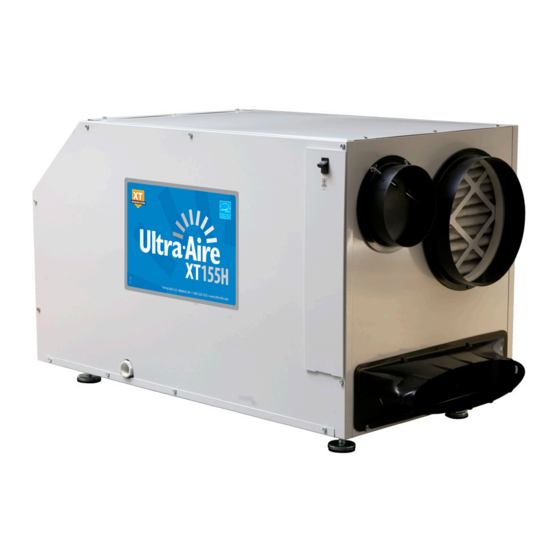

The Ultra-Aire XT155H is a whole house ventilating dehumidifier
that is integrated into the heating and cooling system to provide
the ultimate in comfort, health and property protection through:
• Dehumidification
• Fresh Air Ventilation (Optional)
• Air Filtration
HVAC Installer: Please Leave Manual for Homeowner
P/N: 4031070
Serial No.:
Sold by:
PATENTS:
D570,988
8,069,681
9,052,132
Install Date:
TS-693 3/24/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor Ultra-Aire XT155XT
Summary of Contents for Therma-Stor Ultra-Aire XT155XT
- Page 1 PATENTS: D570,988 8,069,681 9,052,132 Installation Instructions INSTALLATION BY A HVAC PROFESSIONAL IS RECOMMENDED The Ultra-Aire XT155H is a whole house ventilating dehumidifier that is integrated into the heating and cooling system to provide the ultimate in comfort, health and property protection through: •...
-
Page 2: Table Of Contents
Service ..................21 Troubleshooting ................... 22 Warranty ..................24 Ultra-Aire is committed to manufacturing quality products. To maintain our standards, product specifications may change without notice. 4201 Lien Rd. Madison, WI 53704 1-800-533-7533 www.Thermastor.com | www.Ultra-Aire.com © 2015 Therma-Stor LLC... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS READ THE INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND OPERATING THIS DEVICE. PROPER ADHERENCE TO THESE INSTRUCTIONS IS ESSENTIAL TO OBTAIN MAXIMUM BENEFIT FROM YOUR ULTRA-AIRE WHOLE HOUSE VENTILATING DEHUMIDIFIER. WARNING! THIS SYMBOL MEANS IMPORTANT INSTRUCTIONS. FAILURE TO HEED THEM CAN RESULT IN SERIOUS INJURY OR DEATH. -
Page 4: Specifications
SPECIFICATIONS Part Number: 4031070 Blower: 391 CFM @ 0.0" WG 363 CFM @ 0.2" WG 337 CFM @ 0.4" WG Power: 920 Watts @ 80°F and 60% RH Supply Voltage: 115 VAC – 1phase – 60 Hz Current Draw: 8.0 Amps Circuit Requirement: 15 Amp Dedicated Energy Factor:... -
Page 5: Optional Accessories
OPTIONAL ACCESSORIES 4028539 DEH 3000 Control 4028407 DEH 3000R Control (with remote) 4021475 MERV 11 Filter (16"x20"x2") 4027420 MERV 11 Filters 4-Pack 4027424 MERV 11 Filters 12-Pack 4028614 Pump Kit 4036685 Hang Kit 4025287 MERV 14 Filter Housing 4024370 MERV 14 Filter (20"x24"x4") 4029087 MERV 14 Filters 3-Pack 4023672... -
Page 6: Dehumidifier Set Up
DEHUMIDIFIER SET UP Important Precautions • The device is designed to be installed indoors in a space that is protected from rain and flooding. • Install the unit with enough space to access one of the side panels for maintenance and service. •... -
Page 7: Attaching Duct Collars
ATTACHING DUCT COLLARS Duct Collar Installation Remove the two round ducts, oval duct, and oval duct seal and small bag of mounting hardware from inside the rectangle opening. Fresh Air Ventilation Duct Fresh air ventilation is optional. Attach 6" diameter duct to the unit using the screws provided. The 6" duct should be capped if fresh air is not desired. -
Page 8: Electrical Requirements
ELECTRICAL REQUIREMENTS The Ultra-Aire XT155H plugs into a common grounded 115 VAC outlet. The device draws 8.0 Amps at 80°F and 60% RH. Locate the dehumidifier in an area where the cord’s length (9') easily reaches a 115 VAC electrical outlet with a minimum of 15 Amp circuit capacity. If used in an area that may become wet, a GFCI protected circuit is recommended. -
Page 9: Drain Installation
DRAIN INSTALLATION The Ultra-Aire XT155H generates condensate. Place a secondary drain pan under the dehumidifier if it is suspended above a finished area or above an area where water leakage could cause damage. A drain trap is required for the dehumidifier to drain properly. Install a 3/4" threaded male NPT adapter to the drain pan. -
Page 10: Ducting To Hvac Systems
DUCTING TO HVAC SYSTEMS The recommended installation creates a separate return for the Ultra-Aire XT155H in a central area of the structure. Duct the supply of the unit to the air supply of the existing HVAC system. Connect an insulated duct from outside to the 6"... -
Page 11: Recommended Hvac System Installations
DUCTING TO HVAC SYSTEMS Recommended HVAC System Installation The recommended installation draws air from a dedicated indoor air return and ducts the supply of the dehumidifier to the air supply of the existing HVAC system. Utilize the optional fresh air ventilation duct to provide outside air. -
Page 12: Alternative Hvac System Installations
DUCTING TO HVAC SYSTEMS Alternative HVAC System Installations If the Recommended Dedicated Ultra-Aire Return to HVAC Supply Installation is not possible, there are several alternative installation options available. • DO NOT locate return in a bathroom or kitchen. Dedicated Ultra-Aire 90 Return to A/C Return •... -
Page 13: Recommended Multiple Hvac Systems Installation
DUCTING TO HVAC SYSTEMS Recommended Multiple HVAC Systems Installation The Ultra-Aire XT155H can be installed on multiple HVAC systems. Dehumidified air will be provided to both HVAC systems for distribution throughout the structure. • Backdraft dampers are required in the supply ducts. •... -
Page 14: No Existing Ductwork Installation
DUCTING TO HVAC SYSTEMS No Existing Ductwork Installation When installing the Ultra-Aire XT155H in a structure that does not have a forced air HVAC system, a single return for the Ultra Aire XT155H should be installed in a central location. Install an insulated duct from outside to the 6"... -
Page 15: Fresh Air Ventilation
FRESH AIR VENTILATION Fresh air ventilation is optional. Fresh air may be brought into the structure by connecting an insulated duct from outside the structure to the 6" inlet of the Ultra-Aire XT155H. A ventilation control is needed to program the time and frequency that the unit introduces outside air. -
Page 16: Determine Ventilation Requirements
FRESH AIR VENTILATION Determine Ventilation Requirements The MINIMUM ventilation requirement is calculated using ASHRAE 62.2-2010. Use one or both of the options below to determine your ventilation requirement. Follow all local and national building and safety codes. Option 1: Calculating Airflow Requirement Using ASHRAE 62.2-2010 Airflow Equation ASHRAE Airflow in CFM = [House Area in Sq.Ft. -
Page 17: Controls
CONTROLS A control must be used with the Ultra-Aire XT155H. Ultra-Aire offers the DEH 3000 proprietary control. The DEH 3000 allows homeowners to monitor and control relative humidity and proper ventilation levels in their home. This control is also available with a remote sensing option. Note: The DEH 3000 is sold seperately and can be purchased through your local dealer or online. - Page 18 CONTROLS A low voltage control must be used with the Ultra-Aire XT155H. Five Color Coded Wires Control Operation Green (or brown) Fan control Blue Dehumidification (fan and compressor) control 24 VAC power transformer neutral side (common with white) White 24 VAC power transformer neutral side (common with red) Yellow Transformer high side Between the red/white lead and the yellow lead is a 40VA transformer.
-
Page 19: Air Filtration
AIR FILTRATION The Ultra-Aire XT155H is equipped with a MERV-11 filter. An optional MERV-14 filter and filter housing is available at www.UltraAireFilters.com. The filter should be checked and replaced every three to six months. Operating the unit with a dirty filter will reduce dehumidifier capacity and efficiency. DO NOT operate the unit without the recommended filter. -
Page 20: Merv Rating Chart
AIR FILTRATION MERV Rating Chart Standard 52.5 Minimum Typical Controlled Typical Applications and Efficiency Reporting Dust Spot Value Typical Air Filter/Cleaner Type Efficiency Arrestance Contaminant Limitations >99.999% eff. On .10-.20 pm < 0.30 pm particle size Cleanrooms Particles Virus (unattached) Particles Radioactive Materials Carbon Dust... -
Page 21: Service
SERVICE Service Parts List Item Part No. Description 4021475 Air Filter 16”x20”x2” MERV-11 4026221 Foot, Leveling, 5/16-18 4031085 Condenser Coil 4031086-02 E-coat Evaporator Coil 4029510 Filter/Drier 4025741 Thermostat, Defrost Control 4032225 Compressor Replacement Kit 4029714 Compressor Overload 4026657 Impeller 4033023-05 Compressor Capacitor, 45 MFD, 370V, Oil 4035235-07 Blower Capacitor, Run, 15 MFD, 370V, Dry... -
Page 22: Troubleshooting
SERVICE Troubleshooting CAUTION! TROUBLESHOOTING SHOULD BE PERFORMED BY A QUALIFIED HVAC TECHNICIAN. Symptom Possible Reason Troubleshooting Procedure Neither fan nor 1. Dehumidifier unplugged WARNING! compressor or no power to outlet. running. 2. Humidity control set ELECTRICAL SHOCK HAZARD: Dehumidification ELECTRICAL POWER MUST BE PRESENT too high. - Page 23 SERVICE Troubleshooting (Continued) Symptom Possible Reason Troubleshooting Procedure Fan is not running. 1. Loose connection in WARNING! Dehumidification fan circuit. or fan is being 2. Obstruction prevents ELECTRICAL SHOCK HAZARD: called for. ELECTRICAL POWER MUST BE PRESENT fan impeller rotation. TO PERFORM SOME TESTS.
-
Page 24: Warranty
Product is included, abuse, lack of normal care, failure to follow written instructions, tampering, improper repair, or freezing, corrosion, acts of nature or other causes not arising out of defects in Therma-Stor’s workmanship or material. If a Product or Component is replaced while under warranty, the applicable limited warranty period shall not be extended beyond the original warranty time period. - Page 25 www.Ultra-Aire.com | 1-800-533-7533 Ultra-Aire XT155H Installation Instructions...
- Page 26 Ultra-Aire XT155H Installation Instructions www.Ultra-Aire.com | 1-800-533-7533...
- Page 27 www.Ultra-Aire.com | 1-800-533-7533 Ultra-Aire XT155H Installation Instructions...
- Page 28 1-800-533-7533 www.Ultra-Aire.com...
