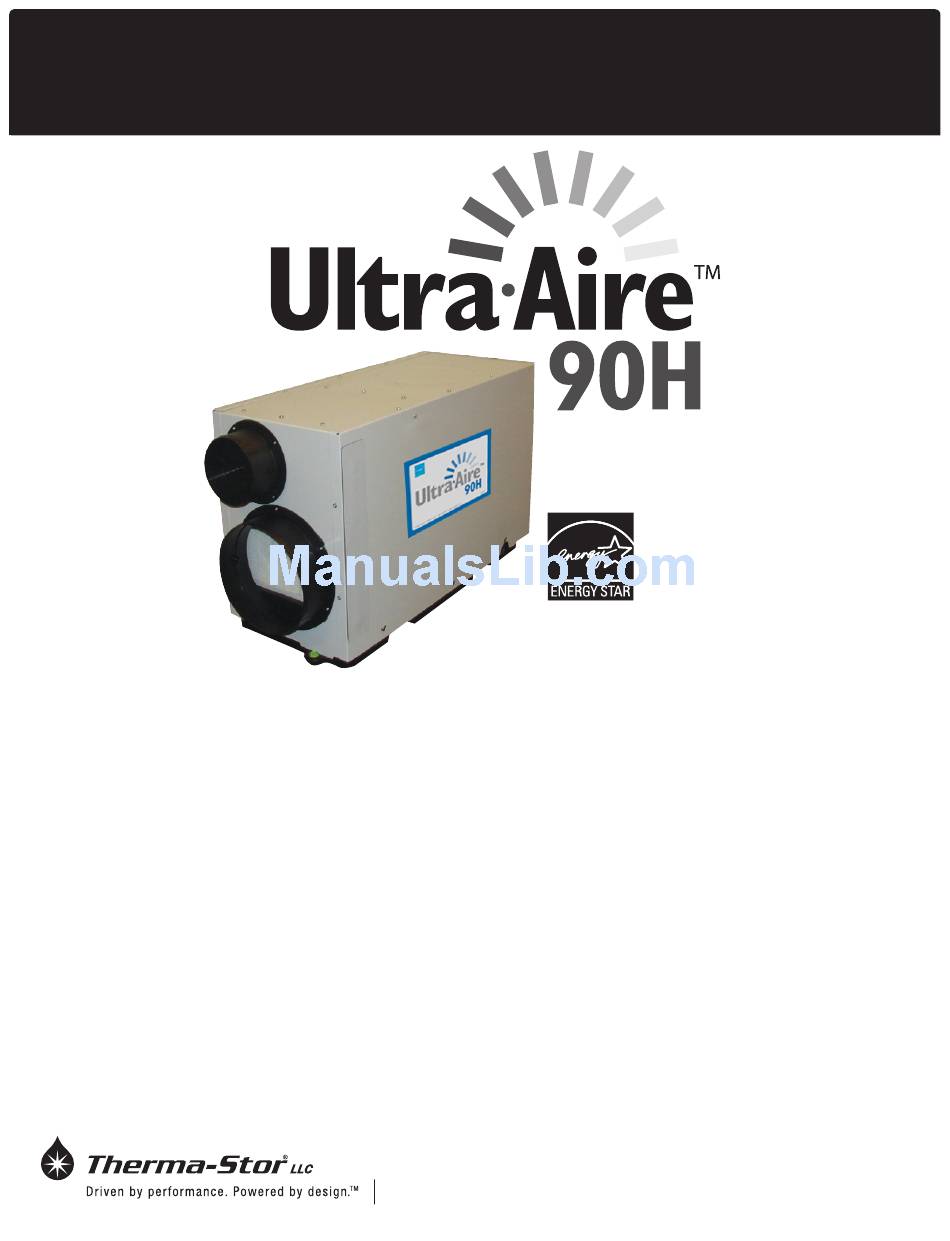

INSTALLER'S & OWNER'S MANUAL
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER

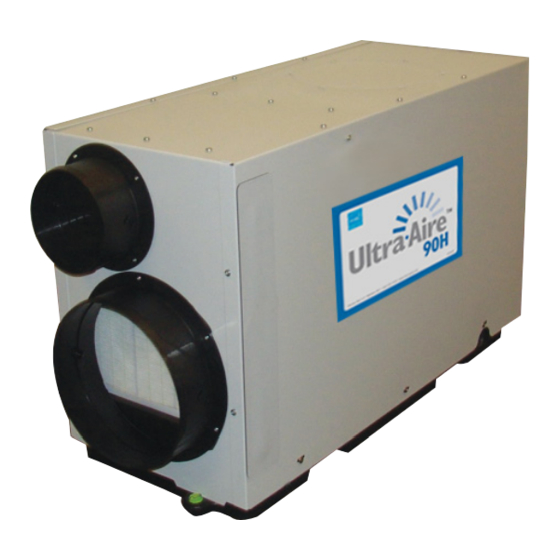

The Ultra-Aire 90H dehumidifier performs multiple functions in
a compact enclosure; high-capacity dehumidification, fresh air
ventilation, and particulate filtration.
Dehumidification
The highly efficient UA-90H dehumidifier utilizes refrigeration to cool
the incoming air stream below its dew point. This cooled and drier
air is used to pre-cool the incoming air stream resulting in increased
overall efficiency. After the pre-cooling stage the processed air is
reheated by passing through the condenser coil. The heat removed
by the evaporator coil is then returned to the air stream.
P/N 4029820 • Serial No.________________________ Install Date:___________
Sold by:
Fresh Air Ventilation (optional)
Fresh air may be ducted to the unit and regulated by a variety of
controls in order to provide desired ventilation rates.
Air Filtration
The UA-90H includes particulate filtration to improve the indoor
air quality of your living/working space. MERV-11 media filter is
standard.
4201 Lien Rd. Madison, WI 53708
TOLL-FREE 1-800-533-7533
•
www.thermastor.com
sales@thermastor.com
•
•
© 2009 Therma-Stor LLC • Manual P/N TS-591

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra-Aire 90 and is the answer not in the manual?

Questions and answers

Related Manuals for Therma-Stor Ultra-Aire 90

Summary of Contents for Therma-Stor Ultra-Aire 90

  • Page 1: Introduction

    P/N 4029820 • Serial No.________________________ Install Date:___________ Sold by: 4201 Lien Rd. Madison, WI 53708 TOLL-FREE 1-800-533-7533 www.thermastor.com sales@thermastor.com • • • © 2009 Therma-Stor LLC • Manual P/N TS-591...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ................1 10. Service ................14 Features & Benefits ..............3 10.1 Technical Description ..........14 Safety Precautions ..............3 10.2 Troubleshooting ............14 1. Intended Application ............3 10.3 Refrigerant Charging ..........15 2. Registrations ...............3 10.4 Compressor/Capacitor Replacement ......15 3. Specifications ..............3 10.5 Electric Ventilation Damper ........15 4 .

  • Page 3: Features & Benefits

    SAFETY PRECAUTIONS 3. Specifications Read the installation, operation and maintenance instructions carefully before installing and operating this device. Proper Part Number: 4029820 adherence to these instructions is essential to obtain maximum Blower: 245 CFM @ 0.0" WG benefit from your Ultra-Aire 90H indoor air quality system. 220 CFM @ 0.4"...

  • Page 4: B Space

    4.3A Lifting Condensate An optional condensate pump kit may be installed if a lift is Therma-Stor LLC offers a family of control devices for use with the required to dispose of the condensate. The condensate pump can UA-90H. The controls are to be located remotely from the unit and be ordered direct from the factory.

  • Page 5: Ducting

    FOR HVAC INSTALLER ONLY pump cover. This switch should be installed in series with the field Remove knock out using side cutters. (Discard) wire that connects the blue (#5) lead from the UA-90H to the the control panel. If the pump fails, this switch opens the compressor control circuit and stops water production before the reservoir overflows.
  • Page 6 FOR HVAC INSTALLER ONLY Step 3. Choose desired orientation for second 10” diameter exhaust duct collar: -OR- A. Straight through (180°) flow B. Upward, out of the top (90°) flow Attach the second 10" duct collar as you did the first. Use six #8 Remove the 10"...

  • Page 7: A Fresh Air/Supply Air

    FOR HVAC INSTALLER ONLY 4.4A Fresh Air/Supply Air 4.4B Ducting for Fresh Air — Option Fresh air may be brought into the structure by connecting an CAUTION! insulated duct from outside the structure to the 6" inlet of the UA- DO NOT draw air directly from the kitchen, laundry, or isolated 90H.

  • Page 8: C Installation In A Basement Or Crawlspace

    FOR HVAC INSTALLER ONLY 4.4C Installation in a Basement or Crawlspace with an blue (#5) lead on the control panel. If overflow occurs, this switch Existing Forced Air HVAC System. opens the compressor control circuit and stops water production before the catch pan overflows. The UA-90H will continue to ventilate or circulate air as normal, but will not dehumidify until this switch closes.

  • Page 9: F Ducting For High Efficiency Filtration

    FOR HVAC INSTALLER ONLY 4.4F Ducting for High Efficiency Filtration The standard filter included with the UA-90H is a very effective MERV 11 media filter. Additional filtering options, including charcoal filtration and 95% efficient filtration, are available with an optional external filter housing that may be installed with the UA-90H.

  • Page 10: Controls

    FOR HVAC INSTALLER ONLY 4.6 Controls Between the red/white lead and the yellow leads is a 40VA trans- The Ultra-Aire can be equipped with various accessories to former. This low voltage power source powers the relay coils which enhance its operation. A remote control must be used with the control the fan and compressors.

  • Page 11: Deh 3000/Deh 3000R Digital Control

    DEH 3000 DEH 3000R (remote) Auto Reboot Operating Voltage: 24 VAC Remote Sensor (DEH 3000R Only) Max Current To order call Therma-Stor at DMP, COMP, FAN: 1 AMP each ± Humidity Range/Accuracy: 10 – 95% RH, 1-800-533-7533 Auxillary Relay Capacity:...

  • Page 12: Maintenance

    FOR HVAC INSTALLER AND HOMEOWNER 6. Maintenance 6.2 High Efficiency Air Filter Most filters are labeled with a MERV rating number, which 6.1 Standard Air Filter measures a filter’s ability to trap particles ranging in size from 3.0 The UA-90H is equipped with a MERV 11 media filter. This filter microns to 10.0 microns.

  • Page 13: Optional Parts List

    FOR HVAC INSTALLER ONLY 8. Optional Parts List: UA-90H Indoor Air Quality System Item Part No. Description 4028539 DEH 3000 Digital Controller 4028407 DEH 3000R Digital Controller 4025287 Filter Box 4026161 14"x14"x1" Standard UA 90-H Filter 4024369 2"x20"x24" Filter (not shown) Use only with Filter Box 4024370 4"x20"x24"...

  • Page 14: Service

    FOR HVAC INSTALLER ONLY 10. Service 10.2 Troubleshooting Neither fan nor compressor running. Dehumidification is being CAUTION! called for. No fan call. 1. Unit unplugged or no power to outlet. CAUTION: Servicing the UA-90H with its high pressure 2. Humidity control set too high. refrigerant system and high voltage circuitry presents a 3.

  • Page 15: Refrigerant Charging

    FOR HVAC INSTALLER ONLY FOR HVAC INSTALLER ONLY Unit removes some water, but not as much as expected. 10.4 Compressor/Capacitor Replacement 1. Air temperature and/or humidity have dropped. This compressor is equipped with a two terminal external overload and 2. Humidity meter and or thermometer used are a run capacitor.
  • Page 16 CONDENSATE PUMP INSTALLATION: FOR HVAC INSTALLER ONLY Available accessory: P/N 4026451 CONDENSATE PUMP KIT INSTALLATION. This condensate pump kit must be installed with leveling feet. Do not use casters. Step 1. Lay the unit on it's side. Make sure the filter door Step 3.
  • Page 17 CONDENSATE PUMP INSTALLATION: FOR HVAC INSTALLER ONLY Step 5. Turn the unit upright onto the leveling feet and remove Step 8. Attach the 20' drain hose to the condensate pump the screw shown. Keep this screw. You will use it in Step 6. and route it to a floor drain.

  • Page 18: Warranty

    Miscellaneous. If any term or condition of this Limited Warranty of nature or other causes not arising out of defects in Therma-Stor’s workmanship or material. If a Product or Component is replaced...
  • Page 19 Phone: 608-222-5301 • Fax: 608-222-1447 electronic or mechanical, for any purpose, without the express written permission Web: www.thermastor.com • Email: sales@thermastor.com of Therma-Stor LLC. © 2008 Therma-Stor LLC. All rights reserved. Ultra-Aire 90H Installer’s & Owner’s Manual...
