Installation and Operation Manual
SS 8.1 II
Eight Input, Single Output Stereo Switcher/Router
Firmware Version 1.6 or above
Manual Revised 08/27/13
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
Copyright„ 1989 - 2013 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools SS 8.1 II
Summary of Contents for Broadcast Tools SS 8.1 II
- Page 1 Manual Revised 08/27/13 Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
-
Page 2: Table Of Contents
SS 8x1 II Installation and Operation Manual Table of Contents Section Title Page # Introduction ..........3 Safety Information . -
Page 3: Introduction

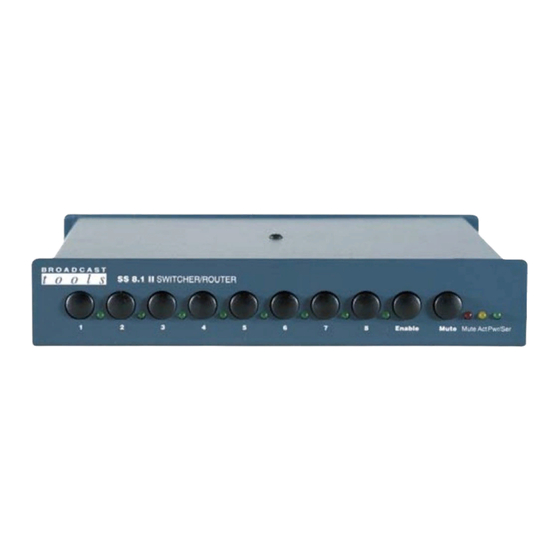

SS 8x1 II Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a Broadcast Tools® SS 8.1 II, Eight Input, Broadcast Tools® Single Output Stereo Switcher/Router (referred to as the SS 8.1 II throughout Products, as with any this manual). -
Page 4: Product Description
• Non-selected sources are terminated with 10K Ω, load resistors. • The SS 8.1 II may be set on a desktop, mounted on a wall or as part of the new RA-1, “Rack-Able” mounting shelf. • Optional RA-1 rack shelf for mounting up to two units in 1-RU. -
Page 5: Front Panel Description
SS 8.1 II. Pulsing the “MUTE” input to ground (low) would turn off the output of the SS 8.1 II until a front panel source switch is pressed, a remote control input is activated or the unit is powered up. -
Page 6: Installation Guidelines
SS 8x1 II Installation and Operation Manual INSTALLATION GUIDELINES CAUTION! It is recommended that all cables connected to the SS 8.1 II be looped through fer- Installation of the SS rite cores to suppress RF. Surge protection with RF filtering such as the Tripp Lite 8.1 II in high RF envi-... - Page 7 Note: After changing any dipswitch, please repower the unit. Note: * Denotes factory setting. STEP 4: MOUNTING Mount the unit on a rack shelf, such as the Broadcast Tools RA-1, allowing adequate airflow for cooling. The RA-1 is furnished with filler panels to cover open spaces. INSTALLATION e-mail: support@broadcasttools.com...
-
Page 8: Rear Panel Connectors
The front panel functions are brought out through the rear panel “REMOTE” con- nectors TB 6 & 7, providing a means of controlling the SS 8.1 II from a remote point. The digital inputs may be connected to any remote pair of switch contacts, such as external relays, switches, etc. - Page 9 The supplied reversed modular cable and 9-pin (S9) D-sub adapters may be con- nected to the SS 8.1 II’s rear panel modular connector. Plug in the D-sub adapter into your computer’s serial port. Plug the supplied wall transformer into a source of 117 vac and the cable end of the transformer into the power receptacle on the SS 8.1...
- Page 10 1 through 8. The open collector status outputs may be set for: Follow or 1-second pulse. Broadcast Tools® SS 8.1 II v 1.8 Setup Menu 1 - Set PIP Minimum (0 - 2.55 sec) - Now: 1.00 2 - Set Remote Mode Open Collector Mode - Now: "Follow"...
-
Page 11: Specifications
SS 8x1 II Installation and Operation Manual SPECIFICATIONS Inputs/Outputs: Any input level and impedance can be used. Inputs may be balanced or unbalanced. Output levels, impedance, distor- tion, noise and balancing will match that of the selected input. Switching Method: Passive. -
Page 12: Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned in to Broadcast Tools in accordance with Broadcast Tools’... -
Page 13: Ce Conformance/Hazard/Warning Labels
SS 8x1 II Installation and Operation Manual CE Conformance I Hazard I Warning Labels CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE ANY COVER OR PANEL. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUAUFIED PERSONNEL. WARNING: To reduce the risk of electrical shock. DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE WARNING –...
