Page 1: Gigabit Ethernet

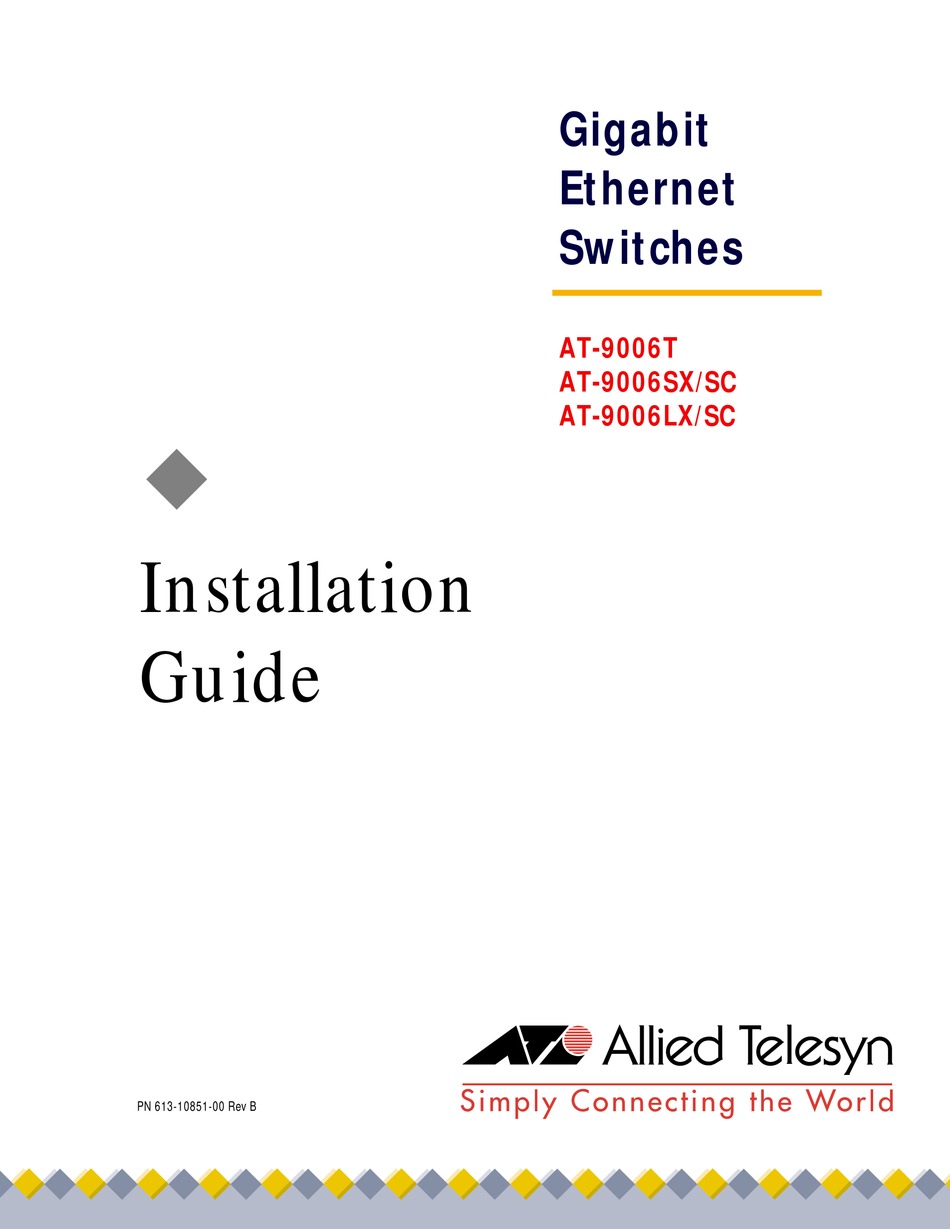

Gigabit ® Ethernet Switches AT-9006T AT-9006SX/SC AT-9006LX/SC Installation Guide PN 613-10851-00 Rev B... - Page 2 Copyright 2000 Allied Telesyn International, Corp. 960 Stewart Drive Suite B, Sunnyvale, CA 94085 USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. CentreCom is a registered trademark of Allied Telesyn International, Corp.
- Page 3 Electrical Safety and Emission Statement Standards: This product meets the following standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
-
Page 5: Table Of Contents
Summary of Features ......................................16 Switch Models ........................................17 Features and Components ....................................18 Six Twisted Pair 100/1000 Mbps Ports (AT-9006T).......................... 18 Six Fiber Optic 1000 Mbps Ports (AT-9006SX/SC and AT-9006LX/SC) ..................19 RS232 Connector ......................................19 System and Port LEDs ....................................19 Reset Button........................................ - Page 6 Table of Contents Chapter 2 Installation ........................................... 29 Verifying the Package Contents ..................................30 Reviewing Safety Precautions ..................................31 Selecting a Site for the Switch ..................................32 Planning the Installation ....................................33 Installing the Switch on a Desktop ................................34 Installing the Switch in a Rack ..................................
-
Page 7: Preface
Preface This guide contains instructions on how to install the AT-9006T, AT-9006SX/SC, and AT-9006LX/SC Gigabit Ethernet Switches. Audience This guide is intended for network administrators who are responsible for installing and managing the switches. Network administrators should be familiar with Ethernet switches, Ethernet and Fast Ethernet technology, bridging, and the Spanning Tree Protocol (STP). -
Page 8: Document Conventions
Preface Document Conventions This document uses several conventions that you should become familiar with before you begin to install the product. Note Notes provide additional information. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. -
Page 9: Where To Find Web-Based Guides
You will need the following manual in addition to this guide in order to manage the Gigabit Ethernet switch. The manual contains instructions on how to use the AT-S26 management software to manage and configure the switch. The manual is available from the Allied Telesyn web site: AT-S26 Management Software User’s Guide,... -
Page 10: Contacting Allied Telesyn
Preface Contacting Allied Telesyn There are several ways that you can contact Allied Telesyn technical support: online, telephone, fax and e-mail. Online Support You can request technical support online by filling out the Online Technical Support Form at www.alliedtelesyn.com/forms/support.htm. Telephone and... -
Page 11: Returning Products
Returning Products Products for return or repair must first be assigned a Return Materials Authorization (RMA) number. A product sent to Allied Telesyn without a RMA number will be returned to the sender at the sender’s expense. To obtain an RMA number, contact Allied Telesyn’s Technical Support at... -
Page 12: Ftp Server
Preface FTP Server If you need management software for an Allied Telesyn device and you know the name of the management software file, you can download the software by connecting directly to our FTP server at ftp://gateway.centre.com. At login, enter ‘anonymous’. Enter your e-mail address for the password... -
Page 13: For Sales Or Corporate Information
AT-9006 Series Installation Guide For Sales or Corporate Information Allied Telesyn International, Corp. Allied Telesyn International, Corp. 19800 North Creek Parkway, Suite 200 960 Stewart Drive, Suite B Bothell, WA 98011 Sunnyvale, CA 94085 Tel: 1 (425) 487-8880 Tel: 1 (800) 424-4284 (USA and Canada) -
Page 14: Tell Us What You Think
Preface Tell Us What You Think If you have any comments or suggestions on how we might improve this or other Allied Telesyn documents, please fill out the Send Us Feedback Form at www.alliedtelesyn.com/forms/feedback.htm. -
Page 15: Product Description
Chapter 1 Product Description The AT-9006 Series Gigabit Ethernet Switches allow you to build a flexible network topology suited to the demands of your network environment. The switches provide non-blocking architecture and full- wire speed performance on all ports. They can serve as high speed workgroup switches with dedicated links to workstations, printers, and servers, or as links to additional hubs and switches to form a high speed infrastructure for large networks. -
Page 16: Summary Of Features
Product Description Summary of Features # Six 100Base-T/1000Base-TX ports with RJ-45 connectors (AT-9006T) # Six 1000Base-SX ports with dual SC connectors (AT-9006SX/SC) # Six 1000Base-LX ports with dual SC connectors (AT-9006LX/SC) # 12 K MAC address table with automatic aging... -
Page 17: Switch Models
Table 1 lists the switch models. Table 1 AT-9006 Series Switches Number of Type of Model Type of Port Maximum Distance Ports Connector AT-9006T 100Base-T / RJ-45 100 m (328 ft) 1000Base-TX AT-9006SX/SC 1000Base-SX Dual SC 550 m (1804 ft) -
Page 18: Features And Components
Connector Figure 2 Back Panel Six Twisted Pair The AT-9006T Gigabit Ethernet Switch features six twisted pair ports 100/1000 Mbps with RJ-45 connectors. Each port can operate at either 100 Mbps or 1000 Mbps and, when operating at 100 Mbps, in either half- or full-duplex Ports mode. -
Page 19: Six Fiber Optic 1000 Mbps Ports (At-9006Sx/Sc And At-9006Lx/Sc)
AT-9006 Series Installation Guide Six Fiber Optic The AT-9006SX/SC and AT-9006LX/SC Gigabit Ethernet Switches feature 1000 Mbps Ports six fiber optic ports with dual SC connectors. The ports operate at 1000 Mbps in full-duplex mode. (The ports can be configured as half-duplex, (AT-9006SX/SC but since all 1000 Mbps network devices operate at full-duplex, there should be no reason to set one of the ports to half-duplex.) -
Page 20: Reset Button
AT-9006LX/SC Switches connects the units to a redundant power supply (RPS), such as the AT-RPS8000 Redundant Power Supply from Allied Telesyn. Contact your Allied Telesyn representative for more information on available RPS units. Note The AT-9006T Switch does not support an RPS unit. -
Page 21: Expansion Slots
Note For a list of the Allied Telesyn expansion modules supported by your AT-9006 Gigabit Ethernet Switch and the AT-S26 management software, refer to the Preface in the AT-S26 Management Software User’s Guide. -
Page 22: At-S26 Management Software And Omega Management Interface
Instructions on how to use the AT-S26 management software and the Omega management interface are in the AT-S26 Management Software User’s Guide, available from the Allied Telesyn web site. There are four different ways that you can manage an AT-9006 Series Switch using the AT-S26 software and the Omega management interface. -
Page 23: Ieee 802.3U Auto-Negotiation
MIBs with a MIB complier. The MIBs for the AT-9006 Series Gigabit Ethernet Switch are available from the Allied Telesyn web site. MIBs supported by the switch include: # MIB II # Bridge MIB (RFC 1493) -
Page 24: Quality Of Service (Qos)
Product Description STP addresses this problem by ensuring that there is only one path between the end nodes. Where multiple paths exist, STP places the extra paths in a redundant or standby mode, leaving only one main active path. The redundant paths can be activated by STP if the main path goes down. -
Page 25: Bootp And Dynamic Host Configuration Protocol (Dhcp)
AT-9006 Series Installation Guide The ratio used by the switch in handling packets in the two queues is adjustable. There are eight possible settings. The settings allow you to adjust the level of importance given to tagged packets in the high priority queue as compared to packets in the normal priority queue. - Page 26 Product Description # With VLAN tagging, the ability to group workstations into logical work groups is more versatile. Network servers or other network resources can be shared without loss of data isolation or security. # With VLAN tagging, one port on a switch can be configured to be an uplink to another 802.1Q-compatible switch.
-
Page 27: Network Topologies
AT-9006 Series Installation Guide Network Topologies Figure 3 shows a network topology that uses an AT-9006SX/SC switch and an AT-9006LX/SC switch to form a Gigabit Ethernet infrastructure. AT-9006LX/SC with AT-A15/SX fiber uplink 10BASE-T/100BASE-TX NETWORK PORTS POWER AT-8224XL 10BASE-T/100BASE-TX NETWORK PORTS POWER with AT-A15/LX fiber uplink... -
Page 28: Where To Go Next
Product Description Where to Go Next Proceed to Chapter 2 for details on how to install the switch. -
Page 29: Chapter 2 Installation
Chapter 2 Installation This chapter contains the installation procedures for the switch. The chapter contains the following sections: # Verifying the Package Contents # Reviewing Safety Precautions # Selecting a Site for the Switch # Planning the Installation # Installing the Switch on a Desktop # Installing the Switch in a Rack # Installing an Expansion Module... -
Page 30: Verifying The Package Contents
Make sure the following hardware components are included in your switch package. If any of the items are missing or damaged, contact your Allied Telesyn sales representative. # One AT-9006T, AT-9006SX/SC or AT-9006LX/SC Gigabit Ethernet Switch # Two mounting brackets... -
Page 31: Reviewing Safety Precautions
AT-9006 Series Installation Guide Reviewing Safety Precautions Please review the following safety precautions before you begin to install the switch. Refer to Appendix C for translated safety statements in your language. Laser Class 1 laser product. " Laser Do not stare into the laser beam. " Warning Electric Shock Hazard: To prevent electric shock, do not remove the cover. -
Page 32: Selecting A Site For The Switch
Installation Selecting a Site for the Switch Be sure to observe the following requirements when choosing a site for your switch: # Make sure that the switch’s power is accessible and cables can be easily connected. # Air flow around the switch and through its vents on the side and rear must not be restricted. -
Page 33: Planning The Installation
For more information on 1000Base-SX and 1000Base-LX link characteristics, refer to the IEEE 802.3z, Section 38 specification. If you are installing an AT-9006T Switch, please observe the following rules and guidelines: # The ports on the AT-9006T Switch are IEEE 802.3ab compatible and are configured automatically as MDI or MDI-X when connected to an end node. -
Page 34: Installing The Switch On A Desktop
Installation Installing the Switch on a Desktop The switch can be installed in a standard 19-inch rack or on a table or desktop. To install the switch in a rack, go to the section Installing the Switch in a Rack on page 36. To install the switch as a table or desktop, perform the following steps: 1. - Page 35 AT-9006 Series Installation Guide As power is applied to the switch, the Fault LED (shown in Figure 5) flashes as the switch runs a series of internal self tests. After the switch has finished running its self tests, the Fault LED will stop flashing and will remain OFF.
-
Page 36: Installing The Switch In A Rack
Installation Installing the Switch in a Rack To install the switch in a standard 19-inch rack, perform the following steps: 1. Remove all components from the shipping package and store the packaging material in a safe location. 2. Place the unit on a level, secure surface. 3. - Page 37 AT-9006 Series Installation Guide 6. Mount the switch in the rack using standard screws (not provided). Caution Air vents must not be blocked and must have free access to the " room ambient air for cooling. 7. If you purchased a redundant power supply (RPS) unit for the switch, connect the RPS unit to the R.P.S.
-
Page 38: Installing An Expansion Module
This section contains instructions for installing an optional expansion module in the switch. Note For a list of the Allied Telesyn expansion modules supported by your AT-9006 Gigabit Ethernet Switch and the AT-S26 management software, refer to the Preface in the AT-S26 Management Software User’s Guide. - Page 39 AT-9006 Series Installation Guide Figure 8 Removing the Blank Panel If you are installing only one expansion module in the switch, you should install the module in slot A. While the module will work in slot B with slot A empty, the port numbering assignments will change if you later install a module in slot A.
- Page 40 Installation 4. Slide the expansion module into the empty slot making sure the board is aligned properly with the card guides. Refer to Figure 9. Card Guide A T- A 15 AC TIV ITY LIN K FU LL DU 10 00 B A S E -X HA LF DU CO L...
-
Page 41: Starting A Local Omega Management Session
AT-9006 Series Installation Guide Starting a Local Omega Management Session This procedure explains how to establish a local Omega management session with the switch. You must establish a local management session if you have just installed the switch in a TCP/IP environment. You must assign the switch an IP address and subnet mask or configure the switch to obtain its IP parameters from a BOOPT or DHCP server. -
Page 42: Warranty Registration
Installation Warranty Registration When you have finished installing the switch, you should register your product by completing the enclosed warranty card and sending it in, or by visiting our web site at www.alliedtelesyn.com/forms/warranty.htm and completing the on-line registration. -
Page 43: Where To Go Next
AT-9006 Series Installation Guide Where to Go Next Now that the switch is operational, you are ready to configure and monitor the unit as explained in the AT-S26 Management Software User’s Guide, which is available from Allied Telesyn’s web site at www.alliedtelesyn.com. -
Page 45: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting This chapter provides information on how to detect and resolve problems with your switch. This section includes the following sections: # At the First Sign of a Problem # How the Switch Reports Problems # Common Problems # Calling Technical Support... -
Page 46: At The First Sign Of A Problem
RESET; or power cycle the switch by disconnecting and reconnecting the power cord. # If problems still persist, for example, the Fault LED remains ON, call Allied Telesyn’s Technical Support or visit Allied Telesyn’s web site at www.alliedtelesyn.com. -
Page 47: How The Switch Reports Problems
AT-9006 Series Installation Guide How the Switch Reports Problems The switch detects and processes errors as follows: # The LEDs indicate problems with the ports and power. For information on the LEDs, refer to the section System and Port LEDs on page 19. # In a TCP/IP environment, if you have configured the software correctly, the management software triggers an SNMP trap message. -
Page 48: Common Problems
2. Ensure that the voltage is within the required levels in your region. 3. If possible, logon to Omega, run diagnostics ( Administration>Diagnostics ) and record any failures. 4. Contact Allied Telesyn’s Technical Support and report the results of the tests. -
Page 49: Fault Led Is On
AT-9006 Series Installation Guide Fault LED is ON This might indicate problems with the AT-S26 management software, such as: # An unsuccessful software download # A failure of the power-on diagnostics Perform the following steps in sequence; you need not proceed to the next step if the problem is resolved: 1. -
Page 50: Calling Technical Support
Troubleshooting Calling Technical Support When contacting Allied Telesyn for support on any of its products, you will need to provide Technical Support with the following information: # Model and serial number # Software version number # Description of the problem Refer to Contacting Allied Telesyn on page 10 or Allied Telesyn’s... -
Page 51: Technical Specifications
Dimensions 6.48 cm x 42.93 cm x 35.60 cm (2.55 in x 16.9 in x 14.0 in) (H x W x D) Weight AT-9006T: 7.14 (15.70 lbs) AT-9006SX/SC and AT-9006LX/SC: 6.12 kg (13.60 lbs) Required 19 cm (7.5 in) Ventilation on All... -
Page 52: Environmental Specifications
Technical Specifications Environmental Specifications Operating 0° C to 40° C (32° F to 104° F) Temperature Storage -25° C to 70° C (-13° F to 158° F) Temperature Operating 5% to 95% non-condensing Humidity Operating Up to 3,000 m (9,843 ft) Altitude Range... -
Page 53: Power Specifications
Maximum Power AT-9006T: 150 W Consumption AT-9006SX/SC and AT-9006LX/SC: 95 W AC Input Voltage AT-9006T: 85-254 VAC, 1.5-3.0A, 50/60 Hz AT-9006SX/SC and AT-9006LX/SC: 115-230 VAC 1.4-2.8A, 50/60 Hz 50/60 Hz ± 3 cycles of nominal input frequency Frequency DC Redundant +3.3 Vdc 13A... -
Page 54: Safety And Electromagnetic Emissions Certifications
Technical Specifications Safety and Electromagnetic Emissions Certifications Safety UL 1950, CSA 22.2 No. 950, EN 60950 (TUV) FCC Class A, EN55022 Class A, VCCI Class A Immunity EN50082-1 1997 Quality and MTBF > 50,000 hrs, MTTR < 1/2 hr DOA < 1% Reliability CE Compliant... -
Page 55: Pin Assignment
AT-9006 Series Installation Guide Pin Assignment Table 5 shows the pin assignments for the R.P.S. Input port on the back of the switch. (Pin numbers 1 through 8 are the bottom row of pins on the connector, with pin 1 in the bottom right corner. Pin numbers 9 through 16 are the top row, with pin 9 in the top right position on the connector.) Table 5 R.P.S. -
Page 57: Switch Default Settings
Appendix B Switch Default Settings This appendix lists the factory default settings for the switch. Settings Default IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway Address 0.0.0.0 Domain Name Server None Default Domain Name None Download Password (AT-S26 image file) ATS26 Config Download Password config (Configuration Files) - Page 58 Omega Omega Password No password Omega Time Out Value 5 minutes Local Access Enabled Remote Access (Telnet or SNMP) Enabled Web-based Access Enabled Twisted Pair Ports (AT-9006T) Status Enabled Duplex Mode Auto-Negotiation Speed Auto-Negotiation Backpressure Disabled Flow Control Disabled Broadcast Packets...
-
Page 59: Translated Electrical Safety And Emission Information
Appendix C Translated Electrical Safety and Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog. - Page 60 Translated Electrical Safety and Emission Information Standards: This product meets the following safety standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 61 AT-9006 Series Installation Guide " PLUGGABLE EQUIPMENT, the socket outlet shall be installed near the equipment and shall be easily accessible. " CAUTION: Air vents must not be blocked and must have free access to the room ambient air for cooling. "...
- Page 62 Translated Electrical Safety and Emission Information Standarder: Dette produkt tilfredsstiller de følgende standarder. " Radiofrekvens forstyrrelsesemission EN55022 Klasse A " ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage tilstrækkelige foranstaltninger.
- Page 63 AT-9006 Series Installation Guide Eisen: Dit product voldoet aan de volgende eisen. " RFI Emissie EN55022 Klasse A " WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen. " Immuniteit EN50082-1 1997 "...
- Page 64 Translated Electrical Safety and Emission Information Normes: ce produit est conforme aux normes de suivantes: " Emission d’interférences radioélectriques EN55022 Classe A " MISE EN GARDE : dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques. Auquel cas, l’utilisateur devra prendre les mesures adéquates.
- Page 65 AT-9006 Series Installation Guide Standardit: Tämä tuote on seuraavien standardien mukainen. " Radioaaltojen häirintä EN55022 Luokka A " VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin. " Kestävyys EN50082-1 1997 " Sähköturvallisuus EN60950, UL 1950, CSA 950 "...
- Page 66 Translated Electrical Safety and Emission Information Standard: Questo prodotto è conforme ai seguenti standard. " Emissione RFI (interferenza di radiofrequenza) EN55022 Classe A " AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare radio interferenza. In questo caso potrebbe richiedersi all’utente di prendere gli adeguati provvedimenti.
- Page 67 AT-9006 Series Installation Guide Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. " RFI stråling EN55022 Klasse A " ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. " Immunitet EN50082-1 1997 "...
- Page 68 Translated Electrical Safety and Emission Information Padrões: Este produto atende aos seguintes padrões. " Emissão de interferência de radiofrequência EN55022 Classe A " AVISO: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser necessário que o utente tome as medidas adequadas.
- Page 69 AT-9006 Series Installation Guide Estándares: Este producto cumple con los siguientes estándares. " Emisión RFI EN55022 Clase A " ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto. "...
- Page 70 Translated Electrical Safety and Emission Information Standarder: Denna produkt uppfyller följande standarder. " Radiostörning EN55022 Klass A " VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder. " Immunitet EN50082-1 1997 "...
