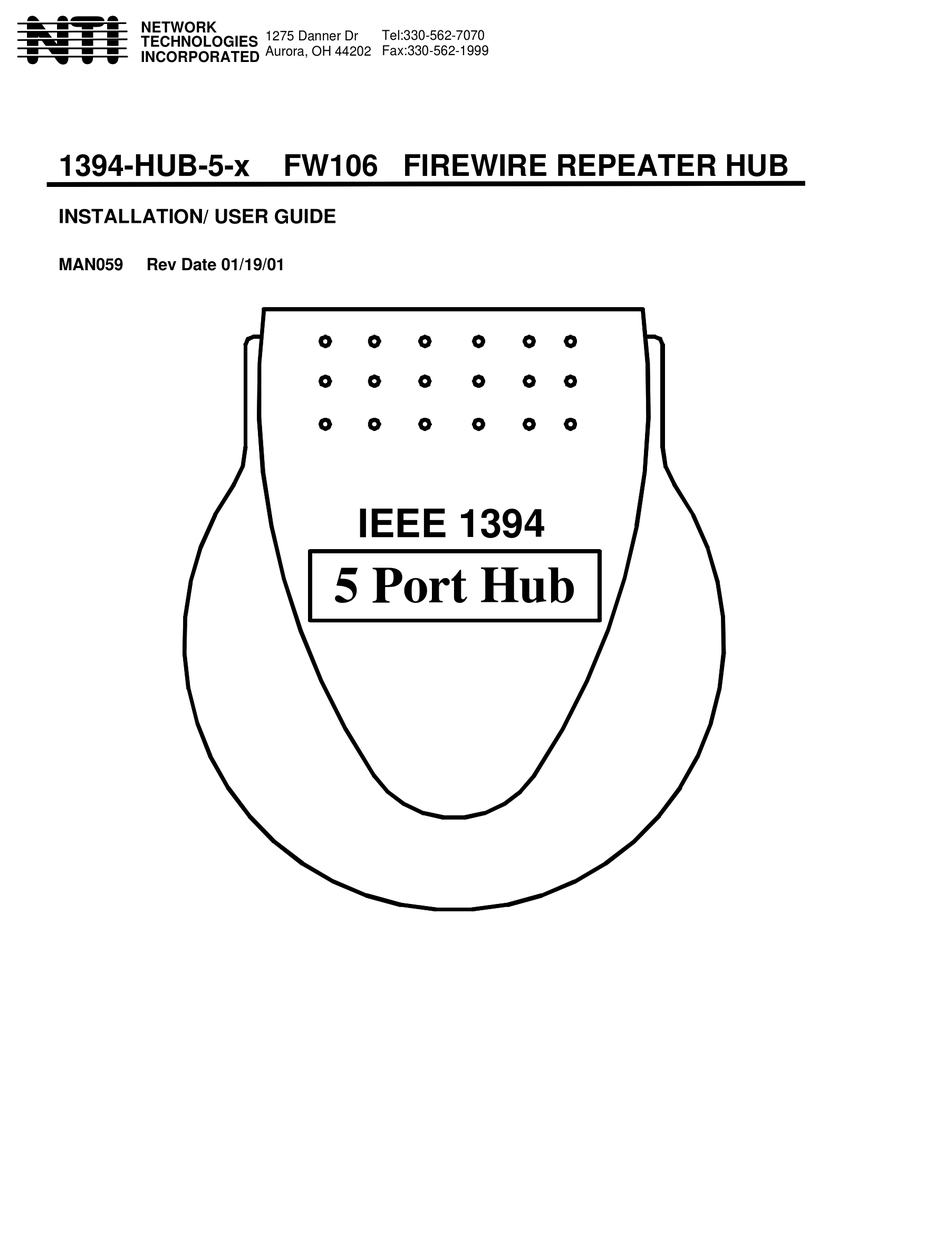

NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED 1394-HUB-5-x FW106 FIREWIRE REPEATER HUB INSTALLATION/ USER GUIDE MAN059 Rev Date 01/19/01 IEEE 1394 5 Port Hub... - Page 2 Materials Included: 1394-HUB-5-x FW106 FIREWIRE REPEATER HUB 1.8 meter (6 Foot) FireWire 4-pin male to 6-pin male Camera Cable 4.5 Meter (15 foot) FireWire 6-pin male to 6-pin male cable 12VDC (300mA) Power Adapter Introduction The FW106 FireWire Repeater Hub provides the electronic interface between IEEE 1394a compatible devices and a host computer.
- Page 3 Installation The FW106 FireWire Repeater Hub will make a connection between as many as 63 FireWire compatible peripheral devices and a host computer with a FireWire socket installed in a PC or MAC style computer. All devices can be hot-plugged so disconnecting power is not necessary.
-
Page 4: Technical Data
3. Connect any FireWire compatible device to any of the remaining 4 ports. (See Fig. 3) Fig. 3 Side View of Repeater Hub Fig. 3 4. (Optional) Daisy chain multiple FW106 Repeater Hubs to increase the number of devices to be connected or to increase the distance between the host computer and the peripheral device. -
Page 5: Warranty Information
A return authorization number is required for all repairs/returns. COPYRIGHT Copyright © 2001 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,...
