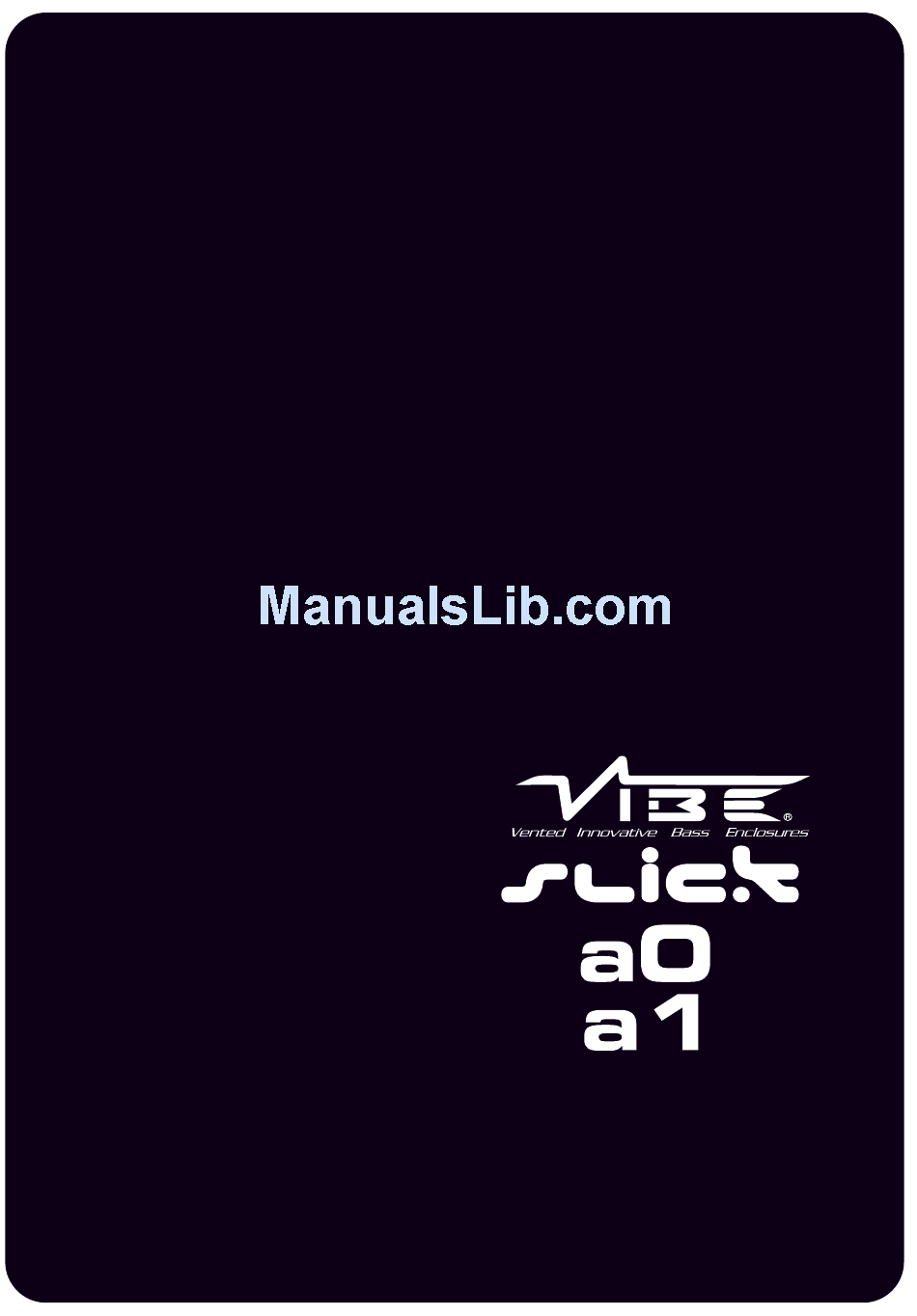

- Page 1 Power Amplifier Instruction Manual To ensure maximum performance and safety, please follow this manual. Please retain the manual for future reference after installation...
-
Page 2: Table Of Contents
OWNERS MANUAL Model: SLICK a0 & a1 Congratulations on purchasing your SLICK amplifier Please read this manual in order to fully understand how to get the best results from your amplifier. Please ensure that all advice on how to look after your amplifier is followed. -
Page 3: Mounting Guidelines
Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down, this will cause the amplifier to over heat and will eventually damage the amplifier. - Page 4 ● It is recommended that the RCA cables should be run on opposite sides of the car to the previously installed power cables if possible, to avoid the cable picking up interferance. Connections - SLICK a0...
- Page 5 Connections - SLICK a0 1. Low Level Output A daisy chain output For connection to another amplifier with a low level input using only a single RCA output from the source (headunit). 2. Low Level Input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit) Gain Control Used to match the input signal of the source to the amplifier.
- Page 6 Connections - SLICK a1...
- Page 7 Connections - SLICK a1 1. Low Level Input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit). In order to obtain a four channel output from a two channel input please set the switch to 4 channel and plug the RCA's into channel 3 and channel 4.
-
Page 8: Setup Section
By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer. -
Page 11: Applications
Check that the negative wire is connected to the ground terminal on the amplifier. ✓ Ensure that the correct rated fuse is fitted: VIBE SLICK a0 –15 amp x 2, VIBE SLICK a1 –25 amp x 2, Distorted Sound ✓... -
Page 12: Specification
Specification SLICK a0 SLICK a1 RMS Power @ 13.8v DC 4 x 75 WRMS Power @ 4 Ohms 2 x 75 WRMS Power @ 2 Ohms stereo 2 x 100 WRMS 4 x 100 WRMS Power @ 4 Ohms bridged... -
Page 13: Warranty
Limited Warranty All VIBE products carry a full twelve months warranty, valid from the date of the original receipt / proof of purchase. In order to validate this warranty, the warranty card should be returned to VIBE within seven days of the original purchase date. The original receipt and packaging should also be retained for this twelve month period. -
Page 15: Accessories
FLATBASS™ 13 SPK Bass speaker cable There are many powerful bass amplifiers on today’s market – the ever increasing power is putting huge strains on speaker wire – VIBE present a new breed of speaker cable specially developed for BASS applications – the VIBE FLATBASS speaker cable offers SolidCores™... -
Page 16: Accessories
The VIBE CriticalLink range of cabling has been developed to achieve the critical link between source (headunit), amplifier and speakers – VIBE audio equipment is high quality, using anything less than the VIBE CriticalLink™ range of cables will severely compromise your equipment and will not allow it to perform to its maximum potential.
