Summary of Contents for Vibe POWERBOX 60.2

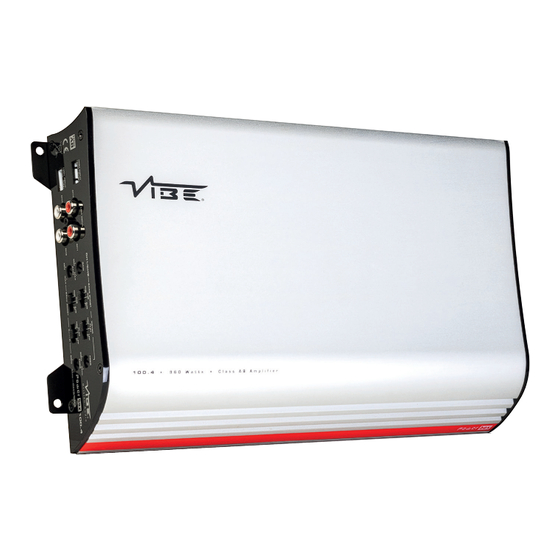

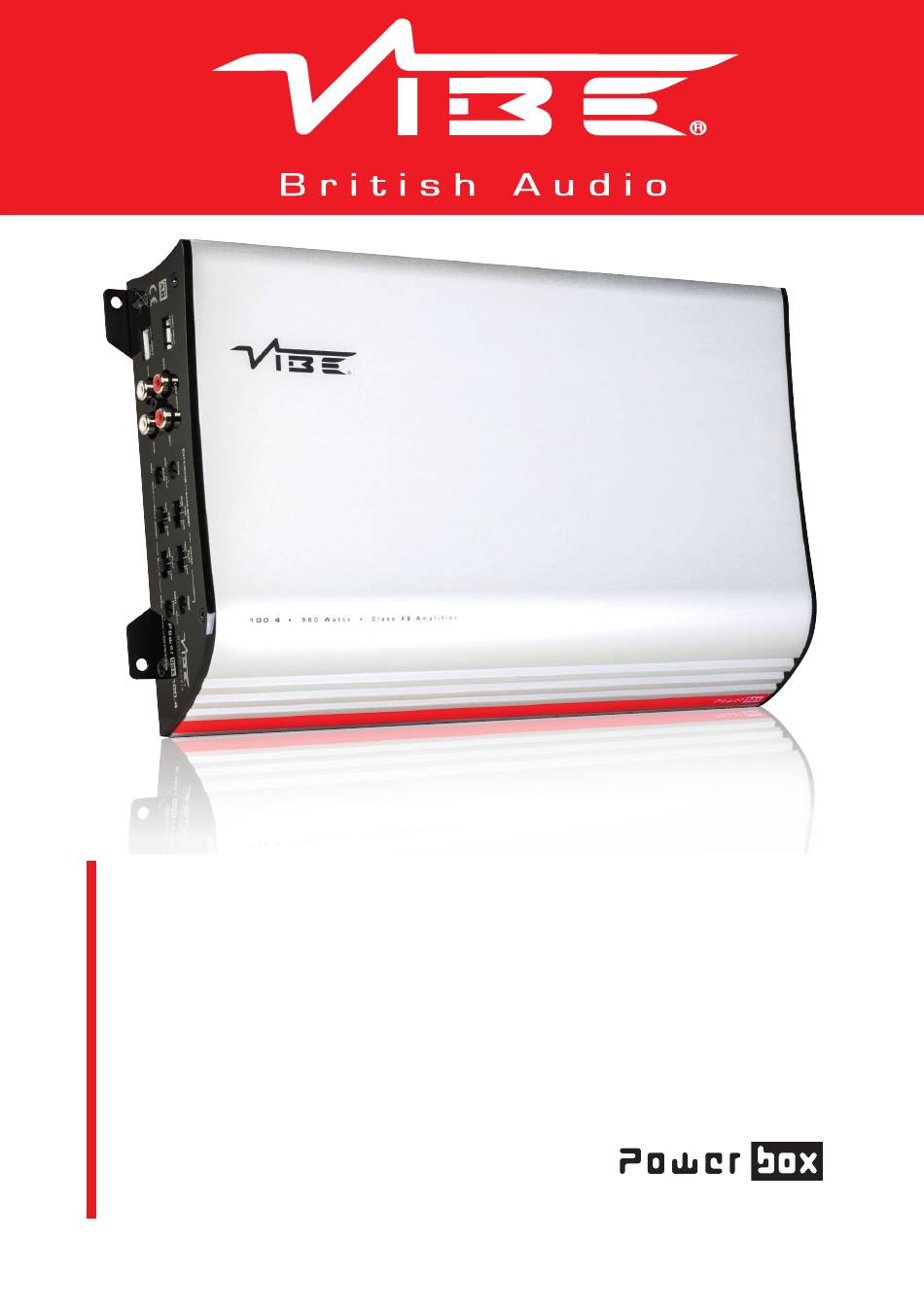

  • Page 1 POWERBOX 60.2 POWERBOX60.2-V7 POWERBOX 60.4 POWERBOX60.4-V7 POWERBOX 80.4 POWERBOX80.4-V7 POWERBOX 100.4 Power Amplifiers POWERBOX100.4-V7...
  • Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
  • Page 3: Limited Warranty

    (without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to...
  • Page 4: Mounting Guidelines

    Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down as this will cause the amplifier to over heat and will eventually damage the amplifier.
  • Page 5: Power Cable

    Power Cable • At least 8 gauge cable should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut.
  • Page 6 Powerbox 60.2 Terminals And Connections 1. High level input For connection to the speaker output of your source (head unit). This is to be used if the source (headunit) does not have a low level output. 2. Low level output RCA output used to connect an additional amplifier or audio device.
  • Page 7 Powerbox 60.2 Stereo Wiring Configuration 2Ω minimum impedance Bridged Wiring Configuration 4Ω minimum impedance...
  • Page 8 Powerbox 60.4 Terminals And Connections 1. CH1 / CH2 high level input For connection to the speaker output of your source (head unit). This is to be used if the source (headunit) does not have a low level output. 2. CH3 / CH4 high level input For connection to the speaker output of your source (head unit).
  • Page 9 Powerbox 60.4 4 Channel Wiring Configuration 2Ω minimum impedance 2Ω minimum impedance Bridged Wiring Configuration 2Ω minimum impedance NOTE: When using high level input, the REM terminal will now output a +12v feed that can be used to turn other devices in the system that do not have auto turn on.
  • Page 10 Powerbox 80.4 Terminals And Connections 1. CH1 / CH2 high level input For connection to the speaker output of your source (head unit). This is to be used if the source (headunit) does not have a low level output. 2. CH3 / CH4 high level input For connection to the speaker output of your source (head unit).
  • Page 11 Powerbox 80.4 4 Channel Wiring Configuration 2Ω minimum impedance 2Ω minimum impedance Bridged Wiring Configuration 2Ω minimum impedance NOTE: When using high level input, the REM terminal will now output a +12v feed that can be used to turn other devices in the system that do not have auto turn on.
  • Page 12 Powerbox 100.4 Terminals And Connections 1. CH1 / CH2 high level input For connection to the speaker output of your source (head unit). This is to be used if the source (headunit) does not have a low level output. 2. CH3 / CH4 high level input For connection to the speaker output of your source (head unit).
  • Page 13 Powerbox 100.4 4 Channel Wiring Configuration 2Ω minimum impedance 2Ω minimum impedance Bridged Wiring Configuration 2Ω minimum impedance NOTE: When using high level input, the REM terminal will now output a +12v feed that can be used to turn other devices in the system that do not have auto turn on.
  • Page 14: Specification

    Specification Model POWERBOX60.2-V7 Configuration 2 channel 2” x 9” x 7.6” Dimensions (H x W x D) (50mm x 229mm x 194mm) RMS @ 4Ω Stereo 2 x 60 watts RMS @ 2Ω Stereo 2 x 80 watts RMS @ 4Ω Mono 1 x 160 watts Maximum Power 320 watts...
  • Page 15 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG International Technical Enquiries For international technical support please contact the...
  • Page 16 Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
