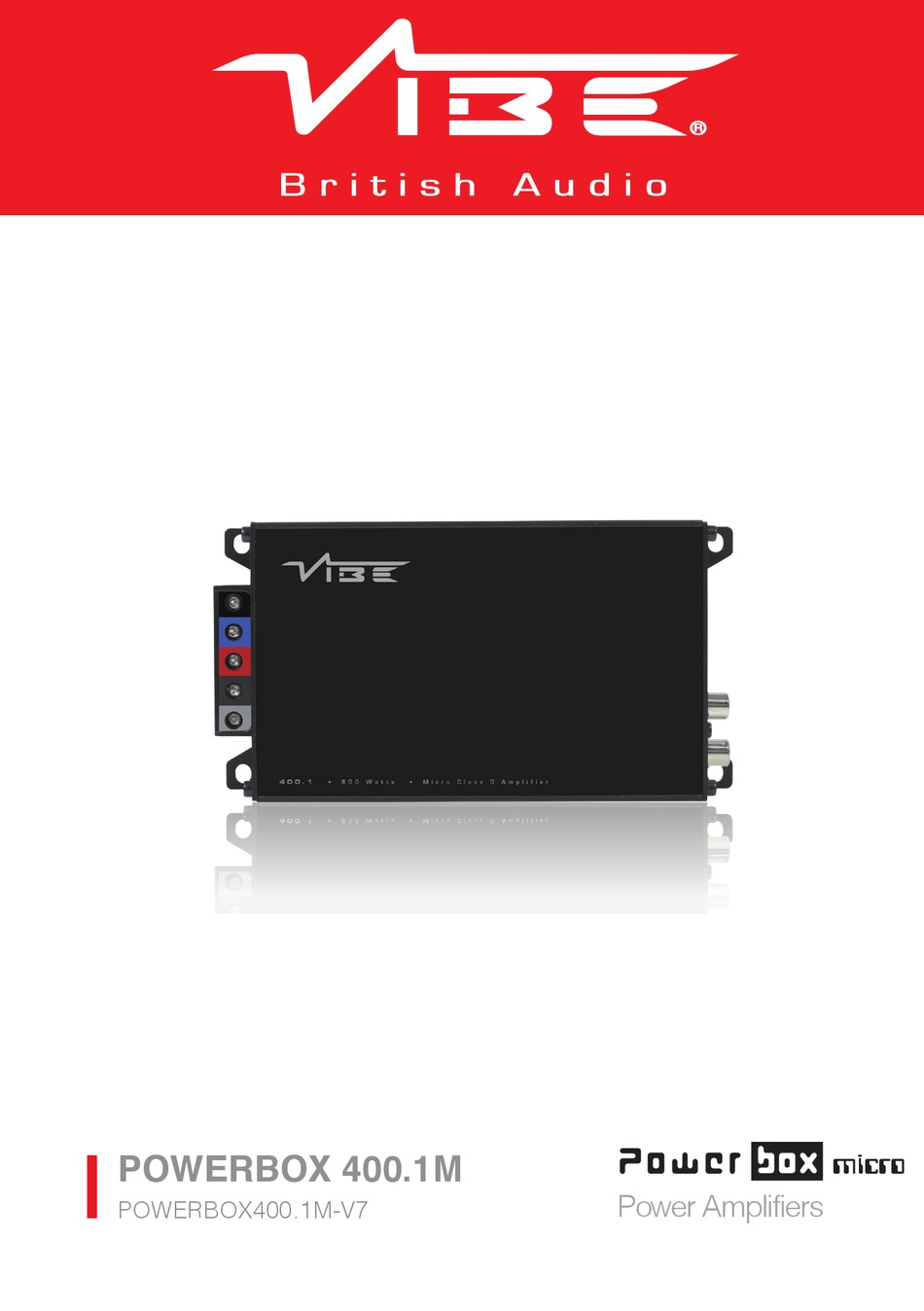

- Page 1 POWERBOX 400.1M micro Power Amplifiers POWERBOX400.1M-V7...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Mounting Guidelines
Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down as this will cause the amplifier to over heat and will eventually damage the amplifier. -
Page 5: Power Cable
Power Cable • At least 10 gauge cable should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut. - Page 6 Terminals And Connections 1. High / low level input For connection to either the speaker output of your source (head unit) this is to be used if the source (headunit) does not have a low level output or connection to any source (head unit) with a low level output.
- Page 7 Dual Subwoofer Wiring Configuration 1Ω minimum impedance Single Subwoofer Wiring Configuration 1Ω minimum impedance...
-
Page 8: Set Up Section
By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer. Recommended Installation Kits CLRAPAWK2.5M •... -
Page 9: Specification
Specification Model POWERBOX400.1M-V7 Configuration Monoblock 1.5” x 6.2” x 3.2” Dimensions (H x W x D) (37mm x 157mm x 82mm) RMS @ 4Ω Mono 170 watts RMS @ 2Ω Mono 250 watts RMS @ 1Ω Mono 400 watts Maximum Power 800 watts Recommended Fuse 35 Amps Frequency Response 10Hz - 500Hz Crossover Type Low pass... - Page 10 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG International Technical Enquiries For international technical support please contact the...
- Page 11 Notes :...
- Page 12 micro Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
