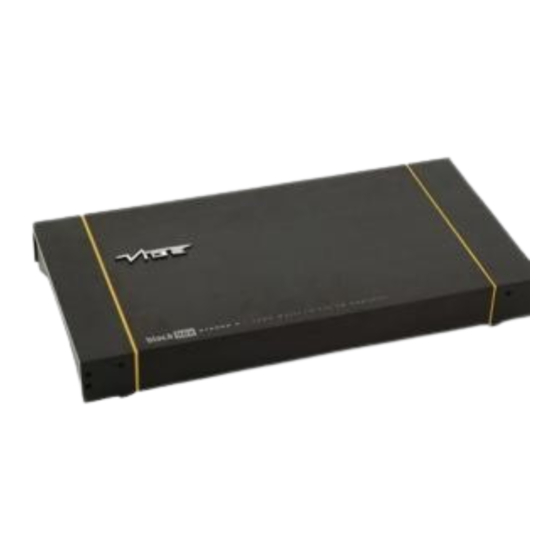

Power Amplifier Instruction Manual To ensure maximum performance and safety, please follow this manual. Please retain the manual for future reference after installation Models: SPACEBS4 -V1 DSPACEBB1-V1 www.vibeaudio.co.uk... -
Page 2: Owners Manual
OWNERS MANUAL Congratulations on purchasing your VIBE amplifier, please read this manual in order to fully understand how to get the best results from your amplifier and ensure that all advice on how to look after the amplifier is followed. Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. - Page 3 Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down, this will cause the amplifier to over heat and will eventually damage the amplifier.
- Page 4 Ground Cable ● At least 4 gauge cable (Deep SpaceBox Bass 1) 8 gauge cable ( SpaceBox Stereo 4) should be used for the ground connection to the amplifier. ● The amplifier ground should be connected directly to the chassis of the vehicle, to bare metal. ●...
- Page 5 Low level input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit) Slave input / output RCA input and output Connections used for amplifier strapping High level input To be used when no RCA's are available.
-
Page 6: Set Up Section
By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer. - Page 10 Terminals and controls : SpaceBox Stereo 4...
- Page 11 Low level input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit.) High level input To be used when no RCA's are available. Use the provided loom and connect to the closest speaker wires. The loom connector will only fit one way around.
- Page 12 SpaceBox Stereo 4 applications Diagram for a SpaceBox Stereo 4 running three channel connected to a pair of Space 5 component speakers and a single Space 12D2 wired for 4 ohms Diagram for a SpaceBox Stereo 4 running for channel connected to two pairs of Space 5 component speakers...
- Page 13 By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer.
-
Page 14: Troubleshooting
Troubleshooting ● Before removing the amplifier, refer to the list below and follow the suggested procedures. ● Always test the speakers and confirm that they are wired correctly first. ● If in any doubt please seek advice from your local authorized VIBE dealer. Amplifier Will Not Power Up Check for good ground connections. -
Page 15: Date Of Purchase
Specification Deep SpaceBox Bass 1 SpaceBox Stereo 4 RMS Power @ 13.8v DC Power @ 4 Ohms stereo 4 x 110 watts RMS Power @ 2 Ohms stereo 4 x 150 watts RMS Power @ 4 Ohms mono 750 watts RMS 2 x 300 watts RMS Power @ 2 Ohms mono 1500 watts RMS... - Page 16 NOTES:...
- Page 17 NOTES:...
-
Page 18: Limited Warranty
Limited Warranty All VIBE products carry a full twelve months warranty, valid from the date of the original receipt / proof of purchase. In order to validate this warranty, the warranty card should be returned to VIBE within seven days of the original purchase date. The original receipt and packaging should also be retained for this twelve month period. - Page 19 FLATBASS™ 13 SPK Bass speaker cable There are many powerful bass amplifiers on today’s market – the ever increasing power is putting huge strains on speaker wire – VIBE present a new breed of speaker cable specially developed for BASS applications – the VIBE FLATBASS speaker cable offers SolidCores™...
- Page 20 The VIBE CriticalLink range of cabling has been developed to achieve the critical link between source (headunit), amplifier and speakers – VIBE audio equipment is high quality, using anything less than the VIBE CriticalLink™ range of cables will severely compromise your equipment and will not allow it to perform to its maximum potential.
