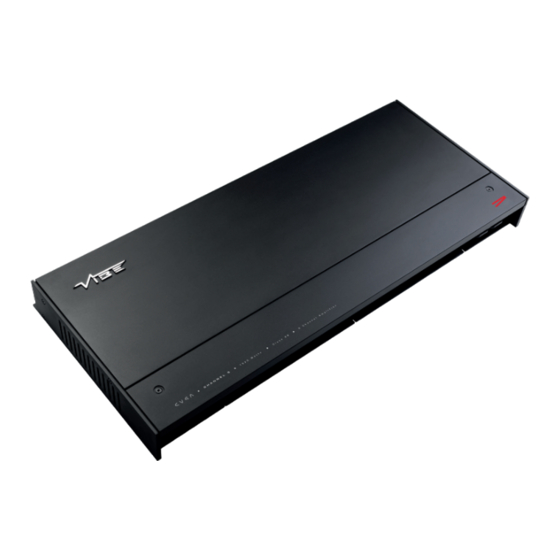

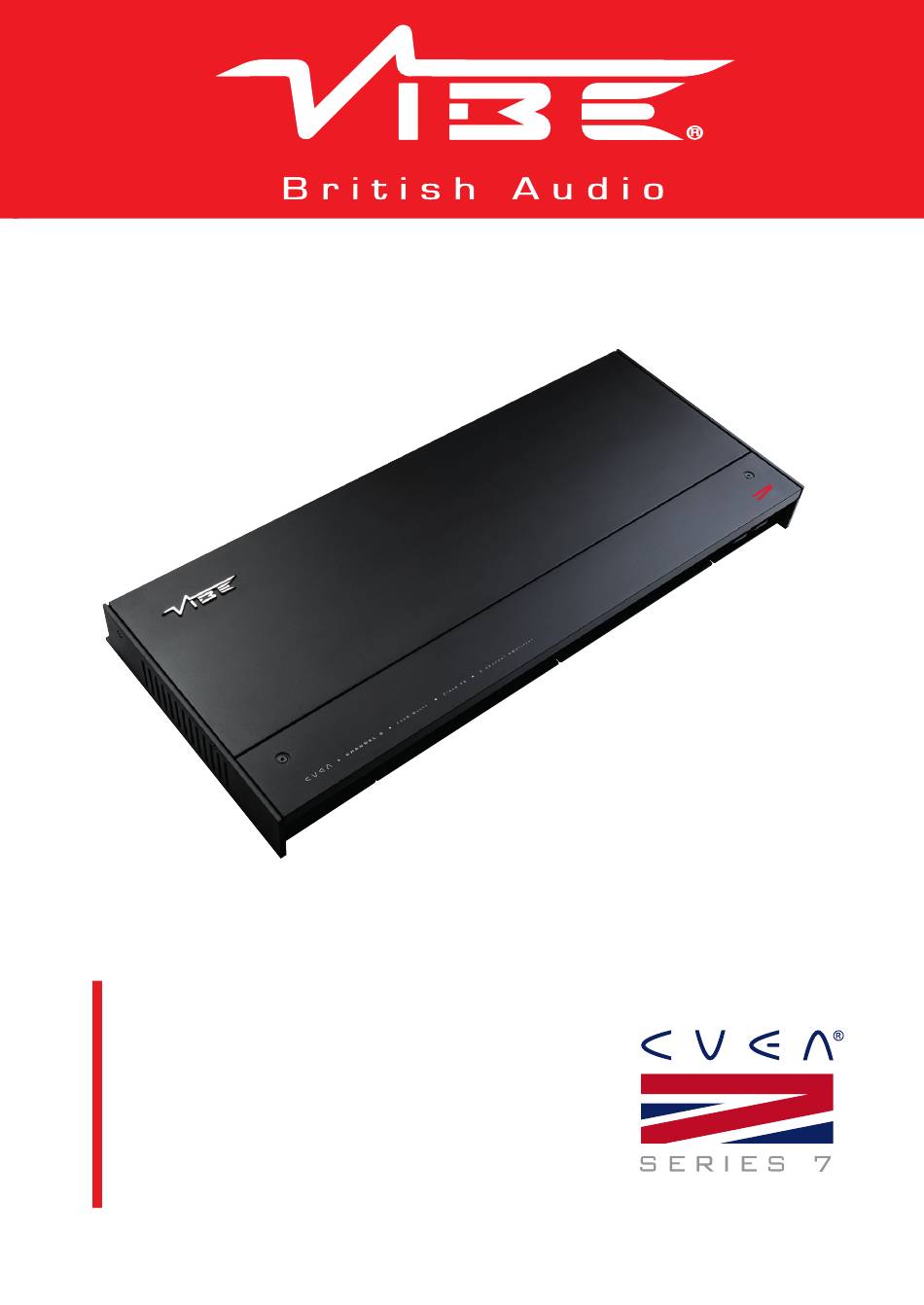

- Page 1 STEREO 2 CVENS2-V4 STEREO 4 CVENS4-V4 CHANNEL 6 Power Amplifiers CVENCH6-V4...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
(without limitation) compensatory, direct, indirect or consequential damages, loss of data, income or profit, loss of or damage to property and claims of third parties. For the avoidance of doubt, VIBE does not limit its liability for death or personal injury to... -
Page 4: Mounting Guidelines
Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down as this will cause the amplifier to over heat and will eventually damage the amplifier. -
Page 5: Power Cable
Power Cable • At least 4 gauge cable should be used for the power connection to the amplifier. • The power cable should be taken directly from the battery. Rubber grommets should be used when passing through any bulkheads to prevent the cable from becoming chaffed or cut. - Page 6 CVEN Stereo 2 Terminals And Connections 1. Gain control This control is used to match the input signal of the source to the amplifier. See the setup section for more details. 2. Bass boost control This control is used to add bass boost to the amplifier and is variable between 0dB and +12dB 3.
- Page 7 CVEN Stereo 2 Terminals And Connections 8. Crossover mode select switch This control is used to select the crossover mode of the amplifier. FLAT is for full range output, HPF is used to limit the amount of low frequency information passed to the speakers and LPF is used to limit the amount of high frequency information passed to the speakers.
- Page 8 CVEN Stereo 4 Terminals And Connections 11 12 1. CH 3/4 Gain control This control is used to match the input signal of the source to the amplifier for channels 3 and 4. See the setup section for more details. 2.
- Page 9 CVEN Stereo 4 Terminals And Connections 8. CH 3/4 High Pass Filter (HPF) select switch This switch is used to turn the HPF on or off for channels 3 and 4. 9. CH 3/4 High Pass Filter (HPF) frequency multiplier switch This switch is used to select the frequency multiplier for the high pass filter for channels 3 and 4.
- Page 10 CVEN Stereo 4 Terminals And Connections 18. Low level input For connection to any source (headunit) with a low level output. This is your RCA output from the source. 19. High level input For connection to the speaker output of your source (head unit). This is to be used if the source (head- unit) does not have a low level output.
- Page 11 CVEN Stereo 4 Wiring Configuration : 4 Channel 2Ω minimum impedance CVEN Stereo 4 Wiring Configuration : 4 Channel 2Ω minimum impedance 4Ω minimum impedance...
- Page 12 CVEN Channel 6 Terminals And Connections 16 17 18 19 1. CH 1/2 Gain control This control is used to match the input signal of the source to the amplifier for channels 1 and 2. See the setup section for more details. 2.
- Page 13 CVEN Channel 6 Terminals And Connections 8. CH 3/4 Gain control This control is used to match the input signal of the source to the amplifier for channels 3 and 4. See the setup section for more details. 9. CH 3/4 High Pass Filter (HPF) control This control is used to set the crossover frequency for channels 3 and 4 when HPF is selected.
- Page 14 CVEN Channel 6 Terminals And Connections 21. CH 5/6 Low Pass Filter (LPF) control This control is used to set the crossover frequency for channels 5 and 6 when LPF is selected. The frequency is adjustable between 40Hz and 1000Hz. 22.
- Page 15 CVEN Channel 6 Wiring Configuration : 6 Channel 2Ω minimum impedance CVEN Channel 6 Wiring Configuration : 5 Channel 2Ω minimum impedance 4Ω minimum impedance...
-
Page 16: Set Up Section
Note: By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer. -
Page 17: Specification
Specification Model CVENS4-V4 CVENCH6-V4 CVENS2-V4 Configuration 4 channel 6 channel 2 channel 2.4” x 18.5” x 11.4” 2.4” x 25.5” x 11.4” 2.4” x 25.5” x 11.4” Dimensions (H x W x D) (60mm x 470mm x 290mm) (60mm x 647mm x 290mm) (60mm x 647mm x 290mm) RMS @ 4Ω... - Page 18 UK Technical Enquiries Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG...
- Page 19 International Technical Enquiries For international technical support please contact the distribution agent for your country. www.vibeaudio.co.uk/contact Please visit more details.
- Page 20 Designed and engineered in England Designed and engineered in England www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.vibeaudio.co.uk www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.youtube.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.facebook.com/vibeaudio www.twitter.com/vibecaraudio www.twitter.com/vibecaraudio www.twitter.com/vibeaudio www.twitter.com/vibeaudio...
