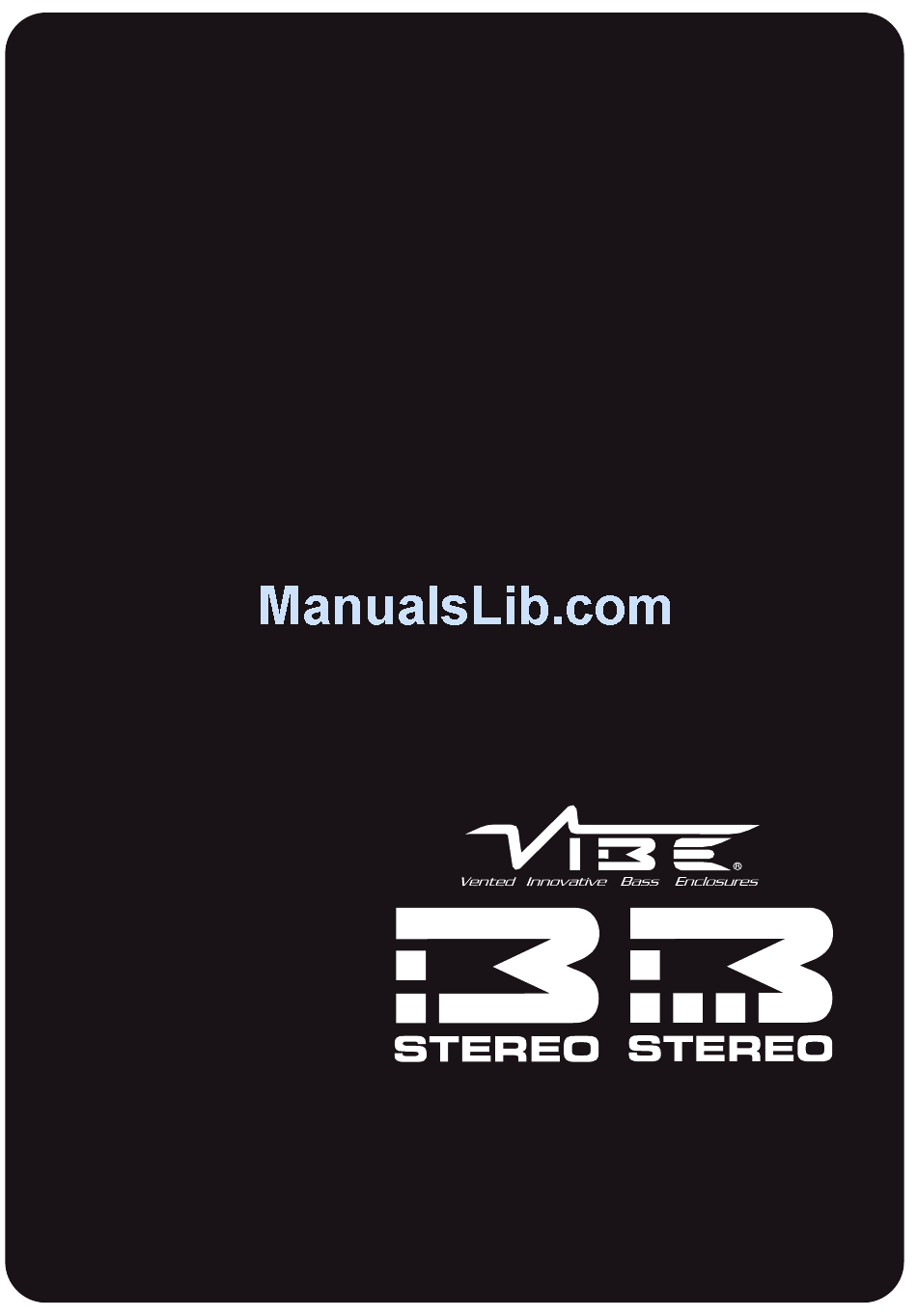

- Page 1 Power Amplifier Instruction Manual To ensure maximum performance and safety, please follow this manual. Please retain the manual for future reference after installation Models: STEREO2-V1 STEREO4-V1...
-
Page 2: Table Of Contents
Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it. VIBE R&D Division CONTENTS Mounting Guidelines...... -
Page 3: Mounting Guidelines
Mounting Guidelines Your VIBE amplifier is designed with a swift installation routine in mind. Please mount the amplifier in a dry location on a solid surface. NEVER mount the amplifier upside down, this will cause the amplifier to over heat and will eventually damage the amplifier. - Page 4 Ground Cable ● The ground cable needs to carry the same current as the power cable. At least an 8 gauge cable should be used. ● The amplifier ground should be connected directly to the chassis of the vehicle, to bare metal. ●...
-
Page 5: Connections
Low Level Input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit). High Level Input To be used when no RCA's are available. Use the provided loom and connect to the closest speaker wires. The loom connector will only fit one way around. - Page 6 Low Level Input For connection to any source (head unit) with a low level output. This is your RCA output from the source (headunit.) High Level Input To be used when no RCA's are available. Use the provided loom and connect to the closest speaker wires. The loom connector will only fit one way around.
- Page 7 Front Crossover frequency control This control is used to set the crossover point for the amplifier. The frequency ranges on the low pass filter are from 55 Hz to 330 Hz, The frequency ranges on the high pass filter are from 55 Hz to 330 Khz. Rear gain control Used to match the input signal of the source (headunit).
-
Page 8: Setup Section
By using the crossovers correctly you will not only lengthen the life of your speakers but you will also get better performance from them. To optimise your setup seek the advise of a professional installation engineer or visit your local VIBE audio dealer. -
Page 9: Applications
100Hz the coil must block treble at 100Hz. FIG.3 Min impedence 4 Ohms NOTE: Trimode crossovers must be perfectly matched, Min impedence VIBE recommends consulting 1 0 5 0 w a t t s 4 Ohms an authorized dealer for advice before installation. -
Page 10: Trouble Shooting
Check that the negative wire is connected to the ground terminal on the amplifier. ✓ Ensure that the correct rated fuse is fitted: The VIBE Stereo 2 amplifier uses 1 x 30 amp fuse The VIBE Stereo 4 amplifier uses 2 x 25 amp fuse Distorted Sound ✓... -
Page 11: Specification
Specification RMS Power @ 13.8v DC Power @ 4 Ohms 2 x 110 WRMS Power @ 2 Ohms stereo 2 x 175 WRMS Power @ 4 Ohms bridged 1 x 350 WRMS 700 watts Minimum speaker impendence 2 Ohms THD Distortion 0.02% IMD Distortion 0.08%... - Page 12 NOTES...
- Page 13 NOTES...
-
Page 14: Limited Warranty
If the store is unable to fix the product it may have to be returned to VIBE this process takes around 7 working days. A full description of VIBE's warranty information can be found on our website: www.vibeaudio.co.uk/warranty... -
Page 15: Accessories
VIBE BC10 level controller The VIBE BC10 gain level controller is a perfect addition to any subwoofer system, the BC10 allows the level of the amplifier to be controlled from the driver’s seat giving the user easy adjustment of gain level. Particularly useful for adjusting the gain level for amplifiers controlling subwoofers. - Page 16 FastPlug™ COMPATIBILITY This kit is compatible with the majority of amplifiers on the market – VIBE recommends this kit for all VIBE active bass enclosures new, current and old models. Model: Active Kit – Bass specific active enclosure wiring kit The VIBE 1.5 farad power capacitor is a must for any high performance audio system.
