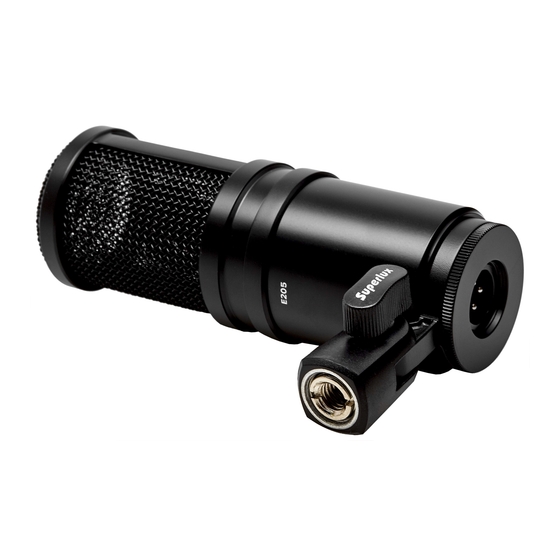

Superlux E205 Quick Start Manual

E205
STUDIO CONDENSER
MICROPHONE
Description
Designed for critical home/project/professional studio
applications and live performances, this side-address
supercardioid studio condenser microphone delivers
exceptional detail and low noise. Along with its rugged
construction and high-performance specifications, the
E205 provides an exceptional level of consistency from
model to model.
Features
• Large diaphragm for smooth, natural sound and low
noise
• High SPL handling and wide dynamic range provide
unmatched versatility
• Supercardioid polar pattern reduces pickup of sounds
from the sides and rear, improving isolation of desired
sound source.
Included
Pouch YA2 threaded
www.superlux.com.tw
HM85 pivoting
adapter stand mount
Specifications
Type
Polar Pattern
Frequency Response
Sensitivity
Output Impedance
Min. Load Impedance
S/N Ratio
Equivalent Output Noise
Max. SPL
Dynamic Range
Power Requirements
Finish
Connector
Dimensions
Net Weight
E205 Frequency Response (Superardioid)
Back Electret Condenser
Supercardioid
30 - 18,000 Hz
-38 dBV / Pa (12.6 mV)
200 Ω
1,000 Ω
72 dB
< 22 dB
> 135 dB
> 113 dB
12 – 52 V , 3.5 mm
Black
XLR3M
Ø54 × 150 mm
(Ø2.13" × 5.9")
400 g (14.1 oz)
EN
