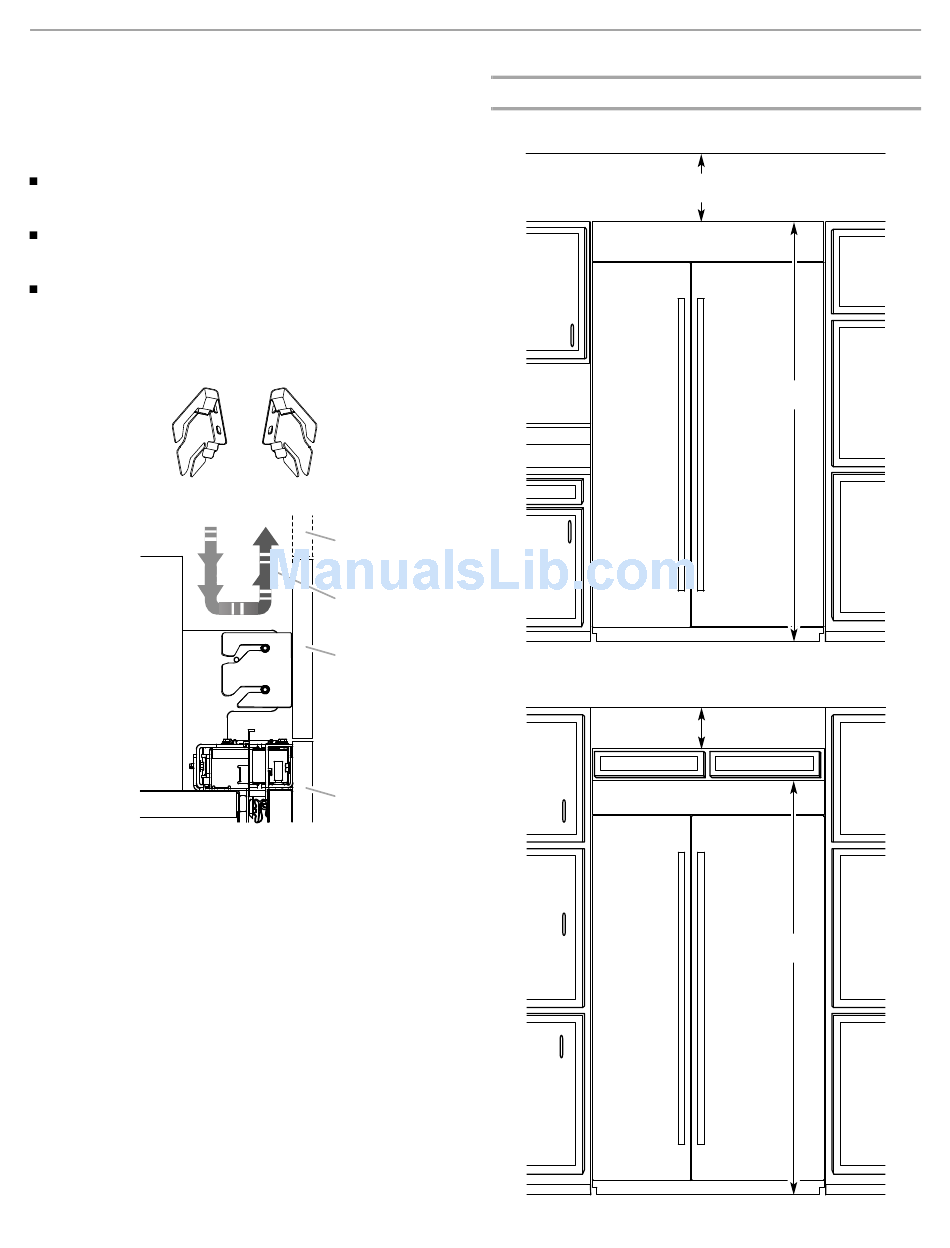

Fully Integrated Grille Installation Requirements

The refrigerator can be installed fully integrated if the adjacent
cabinetry meets the airflow venting requirements critical to
refrigerator performance. A Fully Integrated Grille installation has
no visible air gap because the grille extends upward to the soffit or
upper cabinet.
IMPORTANT:
A Fully Integrated Grille installation requires a minimum of 6"
(15.24 cm) of open space above the refrigerator. This space
must not be blocked in any way, including by soffits.
Both Standard and Fully Integrated Grille installations can be
achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep
opening.
A full height grille is used to achieve a Fully Integrated Grille
installation. Use the integrated bracket (provided with
refrigerator) to attach the full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket
Fully Integrated Grille Installation—Side View
A. False front (optional)
B. Airflow
A
B
C
D
C. Full height grille
D. Door panel
Fully Integrated Grille Installation Options
Option 1—Open to Ceiling
6" (15.24 cm)
Option 2—False Front (cabinet face only)
min.
84"
(213.4 cm)
6" (15.24 cm)
min.
84"
(213.4 cm)
11
