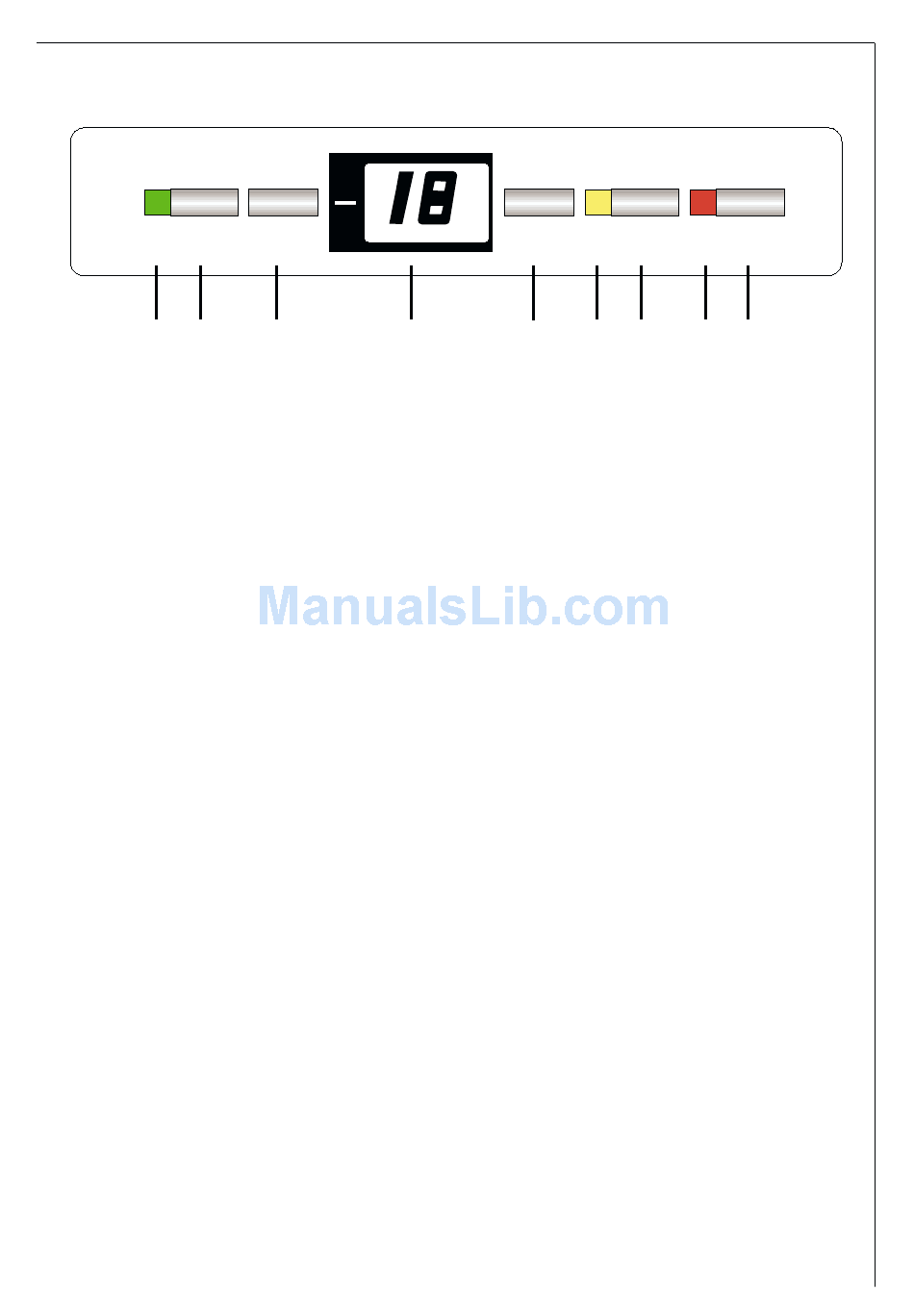

Operating and indicator panel

ON/OFF
B
A
A.
Mains pilot indicator (green)
B.
Freezer button ON/OFF
C.
Temperature setting button (+)
D.
Temperature display
E.
Temperature setting button (-)
F.
FROSTMATIC function "on" indicator (yellow)
G.
FROSTMATIC button
H.
Alarm reset light
I.
Alarm reset button
Temperature setting buttons
The temperature is adjusted using the "C" and "E" buttons. These buttons are
connected to the temperature display.
The temperature display is switched over from the display of the ACTUAL
temperature (Temperature display is illuminated) to the display of the DESI-
RED temperature (Temperature display flashes) by pressing one of the two
buttons, "C" or "E".
Each time one of the two buttons is pressed again the DESIRED temperatu-
re is adjusted by 1 °C. The DESIRED temperature must be reached within 24
hours.
If neither button is pressed, the temperature display automatically switches
back after a short period (approx. 5 sec.) to the display of the ACTUAL tem-
perature.
DESIRED temperature means:
The temperature that has been selected for inside the freezer. The DESIRED
temperature is indicated by flashing numbers.
°C
+
D
C
°C
FROSTMATIC ALARMOFF
-
G
F
E
I
H
7
