Brown Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings indentifying the terminals in
your plug, proceed as follows:
1. The wire coloured green and yellow must be connected to the termi-
nal marked with the letter „E" or by the earth symbol or coloured green
and yellow.
2. The wire coloured blue must be connected to the terminal „N" or
coloured black.
3. The wire coloured brown must be connected to the terminal marked
„L" or coloured red.
4. Upon completion there must be not cut, or stray strands of wire pre-
sent and the cord clamp must be secure over the outer sheat.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of
safely.

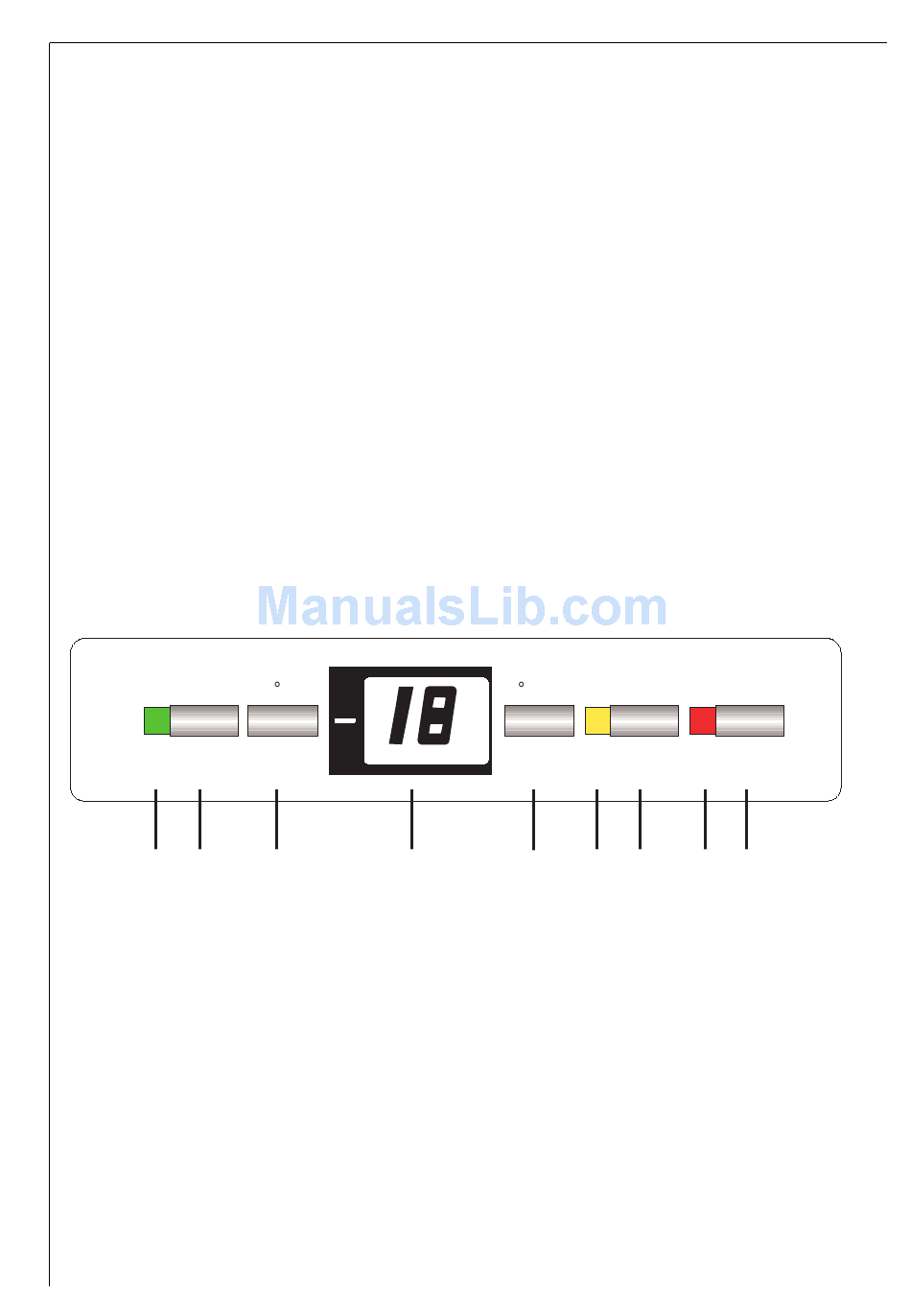

Operating and indicator panel

GEFRIEREN
EIN/AUS
B
A
A. On/OFF light
B Freezer button ON/OFF
C Temperature setting button (warmest)
D Temperature indicator
E Temperature setting button (coldest)
F Super freezing light
G Super freezing button
H Alarm reset light
I Alarm reset button
26
C
WÄRMER
C D
C
FROSTMATIC WARNUNG
KÄLTER
EIN
G
F
E
AUS
I
H
