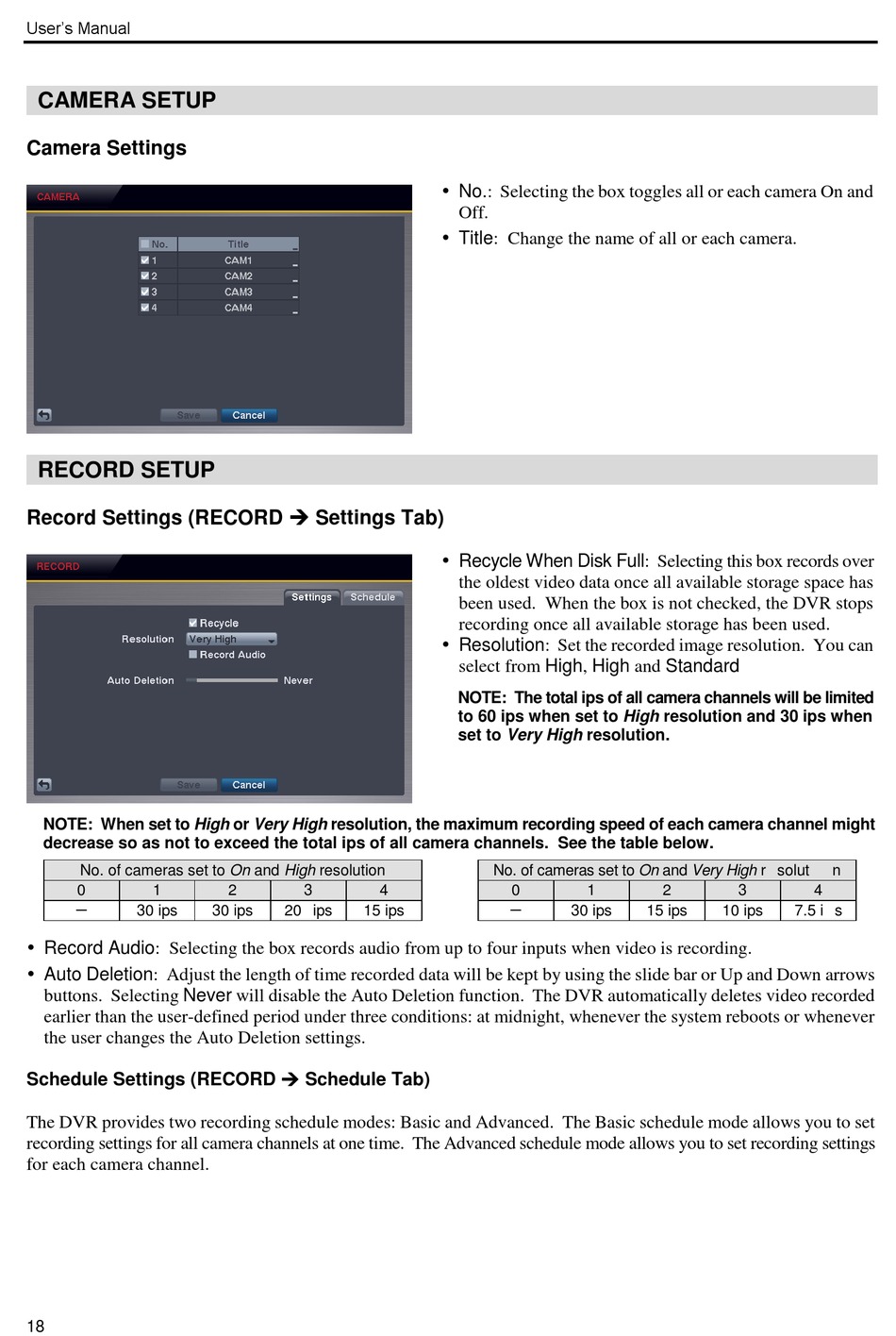

CAMERA SETUP

Camera Settings

RECORD SETUP

Record Settings (RECORD  Settings Tab)
NOTE: When set to High or Very High resolution, the maximum recording speed of each camera channel might
decrease so as not to exceed the total ips of all camera channels. See the table below.
No. of cameras set to On and High resolution
0 1
─
30 ips
 Record Audio: Selecting the box records audio from up to four inputs when video is recording.
 Auto Deletion: Adjust the length of time recorded data will be kept by using the slide bar or Up and Down arrows
buttons. Selecting Never will disable the Auto Deletion function. The DVR automatically deletes video recorded
earlier than the user-defined period under three conditions: at midnight, whenever the system reboots or whenever
the user changes the Auto Deletion settings.
Schedule Settings (RECORD  Schedule Tab)
The DVR provides two recording schedule modes: Basic and Advanced. The Basic schedule mode allows you to set
recording settings for all camera channels at one time. The Advanced schedule mode allows you to set recording settings
for each camera channel.
18
2 3 4
30 ips 20 ips 15 ips
 No.: Selecting the box toggles all or each camera On and
Off.
 Title: Change the name of all or each camera.
 Recycle When Disk Full: Selecting this box records over
the oldest video data once all available storage space has
been used. When the box is not checked, the DVR stops
recording once all available storage has been used.
 Resolution: Set the recorded image resolution. You can
select from High, High and Standard
NOTE: The total ips of all camera channels will be limited
to 60 ips when set to High resolution and 30 ips when
set to Very High resolution.
No. of cameras set to On and Very High r solut
0 1
─
30 ips
2 3 4
15 ips 10 ips 7.5 i s
