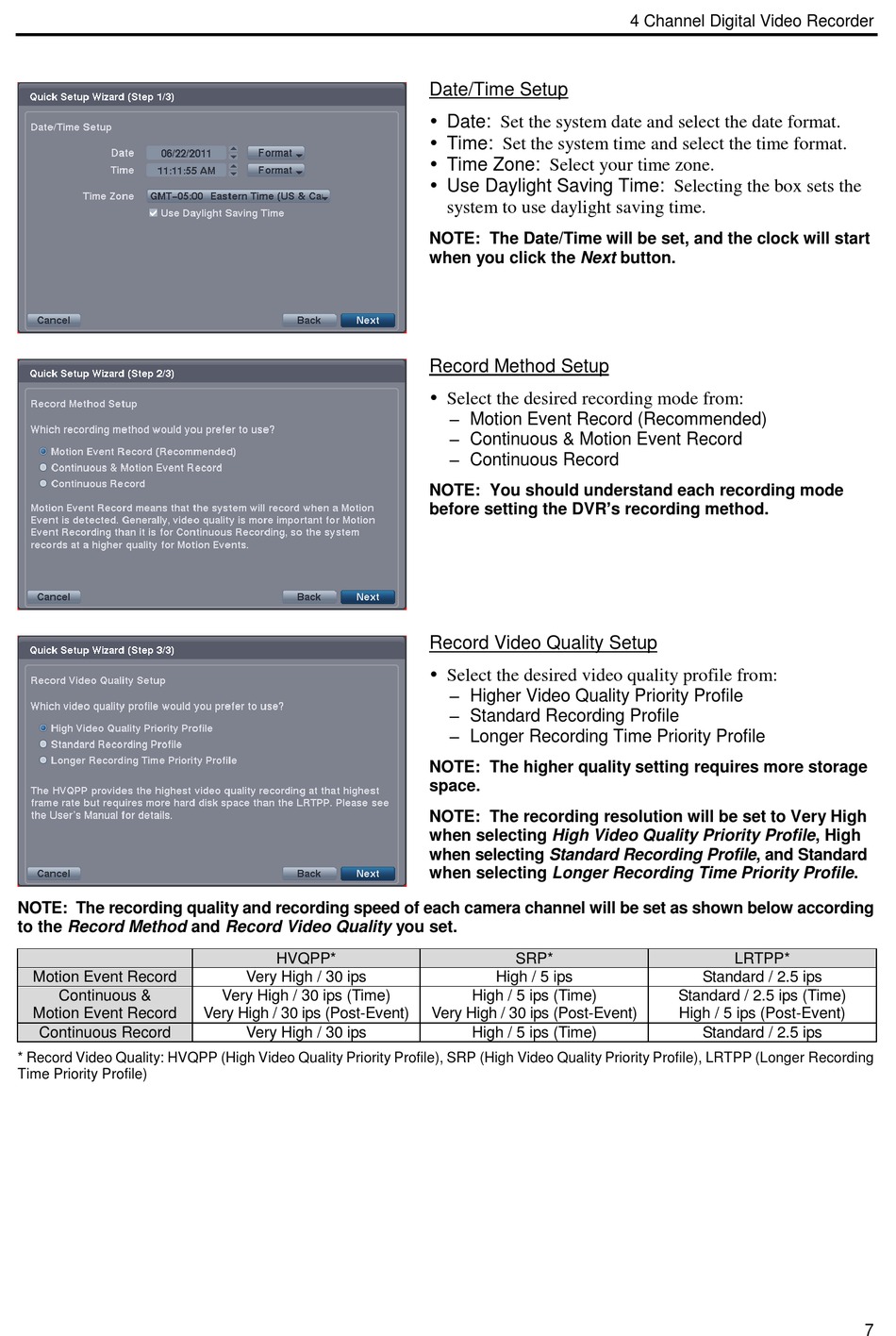

Revo 4 Channel Digital Video Recorder User Manual page 13

NOTE: The recording quality and recording speed of each camera channel will be set as shown below according
to the Record Method and Record Video Quality you set.
Motion Event Record
Continuous &
Motion Event Record
Continuous Record
* Record Video Quality: HVQPP (High Video Quality Priority Profile), SRP (High Video Quality Priority Profile), LRTPP (Longer Recording
Time Priority Profile)
HVQPP*
Very High / 30 ips
Very High / 30 ips (Time)
Very High / 30 ips (Post-Event)
Very High / 30 ips
Date/Time Setup
 Date: Set the system date and select the date format.
 Time: Set the system time and select the time format.
 Time Zone: Select your time zone.
 Use Daylight Saving Time: Selecting the box sets the
system to use daylight saving time.
NOTE: The Date/Time will be set, and the clock will start
when you click the Next button.
Record Method Setup
 Select the desired recording mode from:
– Motion Event Record (Recommended)
– Continuous & Motion Event Record
– Continuous Record
NOTE: You should understand each recording mode
before setting the DVR's recording method.
Record Video Quality Setup
 Select the desired video quality profile from:
– Higher Video Quality Priority Profile
– Standard Recording Profile
– Longer Recording Time Priority Profile
NOTE: The higher quality setting requires more storage
space.
NOTE: The recording resolution will be set to Very High
when selecting High Video Quality Priority Profile, High
when selecting Standard Recording Profile, and Standard
when selecting Longer Recording Time Priority Profile.
SRP*
High / 5 ips
High / 5 ips (Time)
Very High / 30 ips (Post-Event)
High / 5 ips (Time)
4 Channel Digital Video Recorder
LRTPP*
Standard / 2.5 ips
Standard / 2.5 ips (Time)
High / 5 ips (Post-Event)
Standard / 2.5 ips
7
