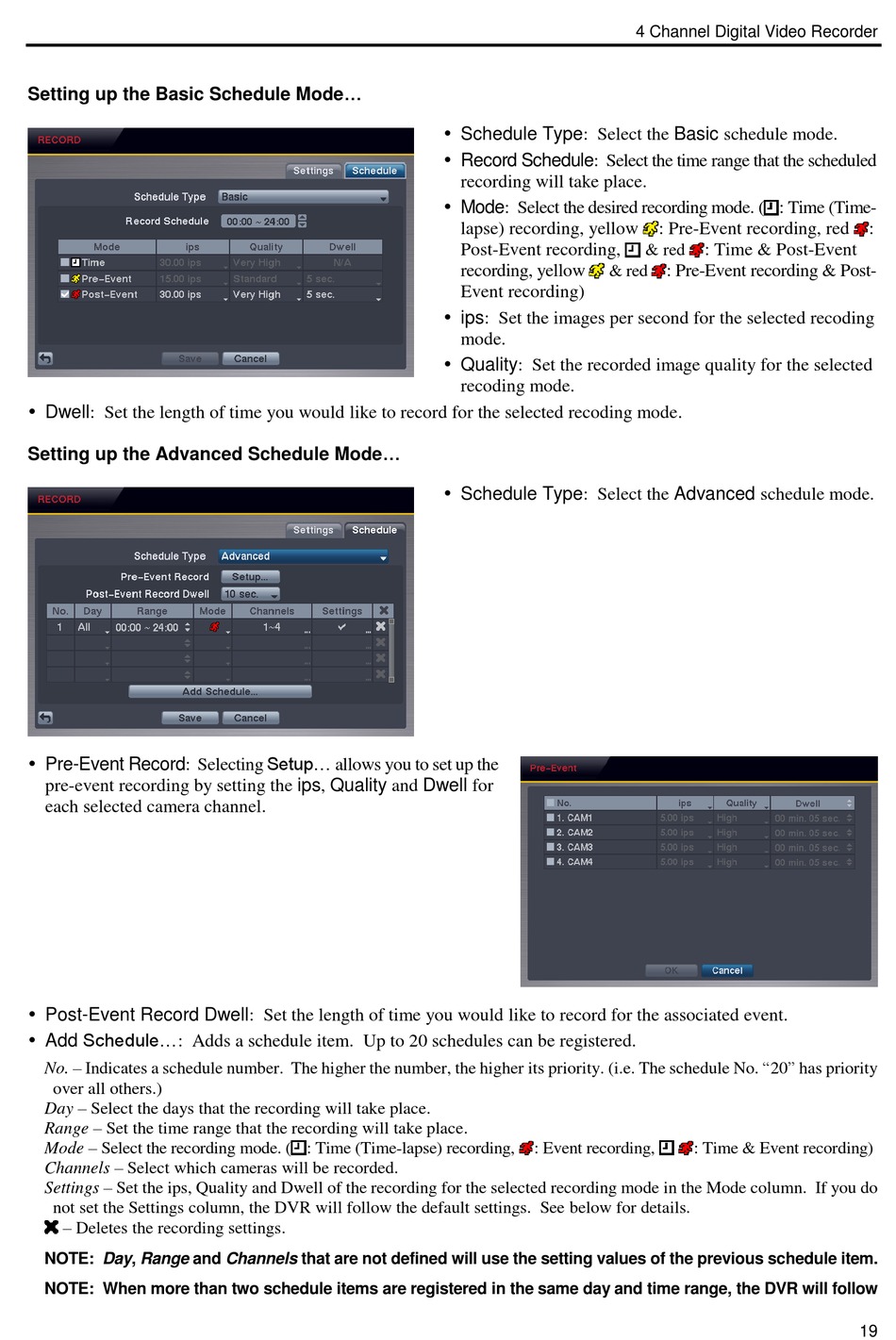

Setting up the Basic Schedule Mode...
 Dwell: Set the length of time you would like to record for the selected recoding mode.
Setting up the Advanced Schedule Mode...
 Pre-Event Record: Selecting Setup... allows you to set up the
pre-event recording by setting the ips, Quality and Dwell for
each selected camera channel.
 Post-Event Record Dwell: Set the length of time you would like to record for the associated event.
 Add Schedule...: Adds a schedule item. Up to 20 schedules can be registered.
No. – Indicates a schedule number. The higher the number, the higher its priority. (i.e. The schedule No. "20" has priority
over all others.)
Day – Select the days that the recording will take place.
Range – Set the time range that the recording will take place.
Mode – Select the recording mode. ( : Time (Time-lapse) recording,
Channels – Select which cameras will be recorded.
Settings – Set the ips, Quality and Dwell of the recording for the selected recording mode in the Mode column. If you do
not set the Settings column, the DVR will follow the default settings. See below for details.
– Deletes the recording settings.
NOTE: Day, Range and Channels that are not defined will use the setting values of the previous schedule item.
NOTE: When more than two schedule items are registered in the same day and time range, the DVR will follow
 Schedule Type: Select the Basic schedule mode.
 Record Schedule: Select the time range that the scheduled
recording will take place.
 Mode: Select the desired recording mode. ( : Time (Time-
lapse) recording, yellow
Post-Event recording,
recording, yellow & red
Event recording)
 ips: Set the images per second for the selected recoding
mode.
 Quality: Set the recorded image quality for the selected
recoding mode.
 Schedule Type: Select the Advanced schedule mode.
: Event recording,
4 Channel Digital Video Recorder
: Pre-Event recording, red
& red : Time & Post-Event
: Pre-Event recording & Post-
: Time & Event recording)
:
