Instruction Manual

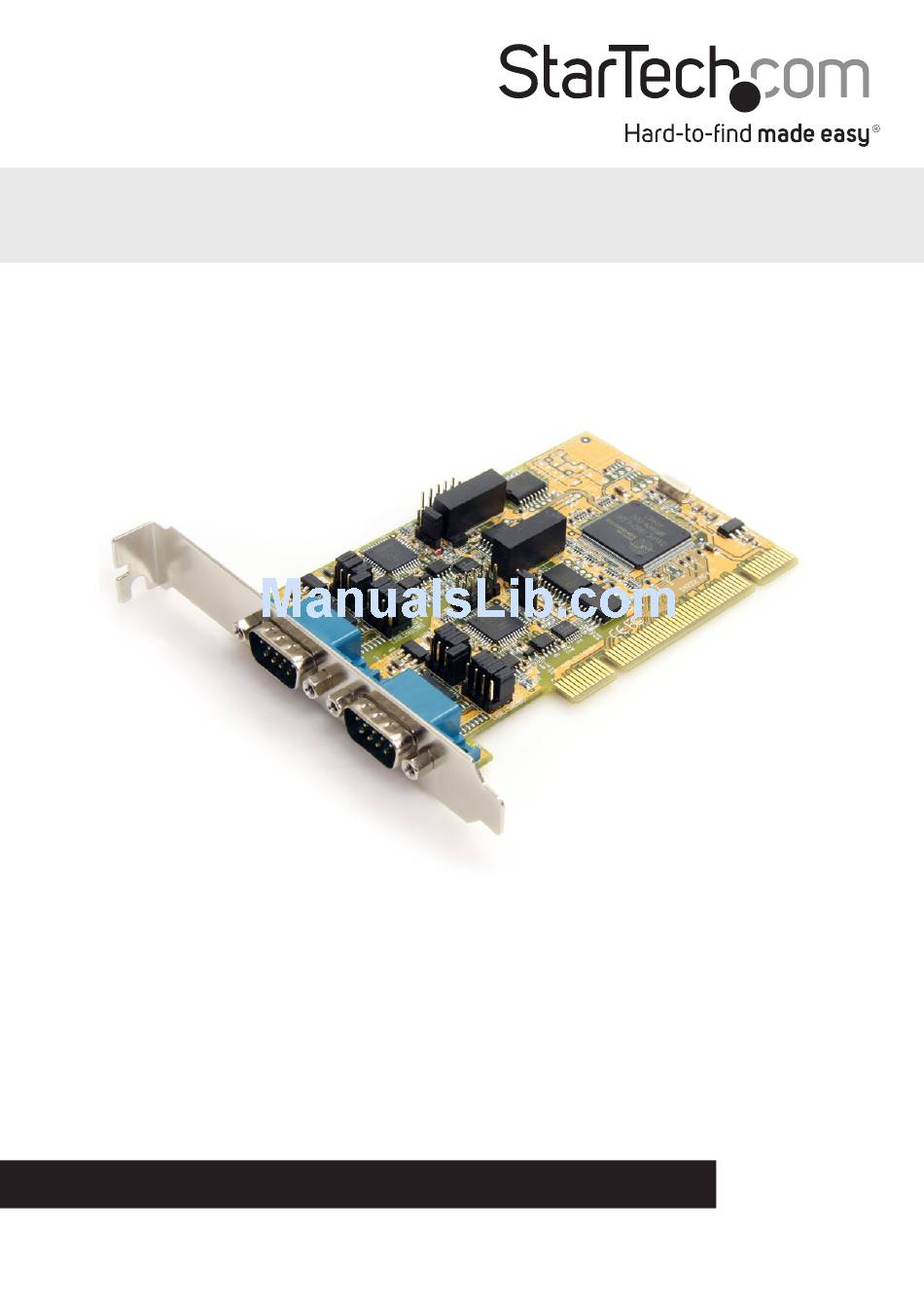

2 Port RS232/422/485 PCI Serial Adapter
Card ESD Protection
PCI2S232485I
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/08/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PCI2S232485I
Summary of Contents for StarTech.com PCI2S232485I
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/08/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................1 Hardware Installation ..........................1 Driver Installation ............................2 How to Use ....................3 Mode Settings ............................3 Transmission Echo ............................ 4 Termination Resistor ..........................5 Pinout Diagram ..................6 RS232 ................................ -
Page 4: Introduction
Introduction The StarTech.com PCI to RS232/422/485 Serial Adapter Card is a universal all-in-one PCI Serial adapter card that allows you to turn a PCI or PCI-X slot into 2 serial ports capable of communicating in RS-232, RS-422, or RS-485. Featuring 2,500Vrms Isolation and... -
Page 5: Driver Installation
4. Set the jumpers on the card to the desired configuration. See “How to Use” section for jumper descriptions. 5. Insert the card into the open PCI or PCI-X slot and fasten the card’s bracket to the rear of the case. 6. -
Page 6: How To Use
How to Use JP1, JP2 jumpers DB9 male connectors JP4, JP5 jumpers Mode Settings There are two jumpers for each port that are used to set its operation mode. JP1/JP2 for Port 1 (S1) and JP4/JP5 for Port 2 (S2). JP2 (for S1 port) / JP5 (for S2 port) JP1 (for S1 port) / JP4 (for S2 port) Description... -
Page 7: Transmission Echo
JP2 (for S1 port) / JP5 (for S2 port) JP1 (for S1 port) / JP4 (for S2 port) Description RS232 Transmission Echo This jumper determines if transmission data will be echoed back. The Echo mode is useful to detect if the RS485 bus has data collision. If the echoed data is not equal to the transmitted data, then there is collision. -
Page 8: Termination Resistor
Termination Resistor This jumper enables/disables the 120 Ohm termination resistor between DATA+ and DATA- of the RS485 transceiver: JP2 (for S1 port)/JP5 (for S2 port) Description Termination Resistor Disabled (Default) Termination Resistor Enabled NOTE: All other headers and jumpers on the card that are not documented, should not be altered/used. -
Page 9: Pinout Diagram
Pinout Diagram RS232 RS422(4-wire)/485 (4-wire/2-wire) Instruction Manual... -
Page 10: Specifications
Specifications PCI revision 2.2 Bus Interface (3.3/5V slot connector) Form Factor Full Profile Chipset ID Oxford OXuPCI952 Connectors 2 x DB9 male Supported Protocols RS232/422/485 Maximum Data Transfer Rate 921.6Kbps Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) Humidity 5 ~ 95% RH... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
