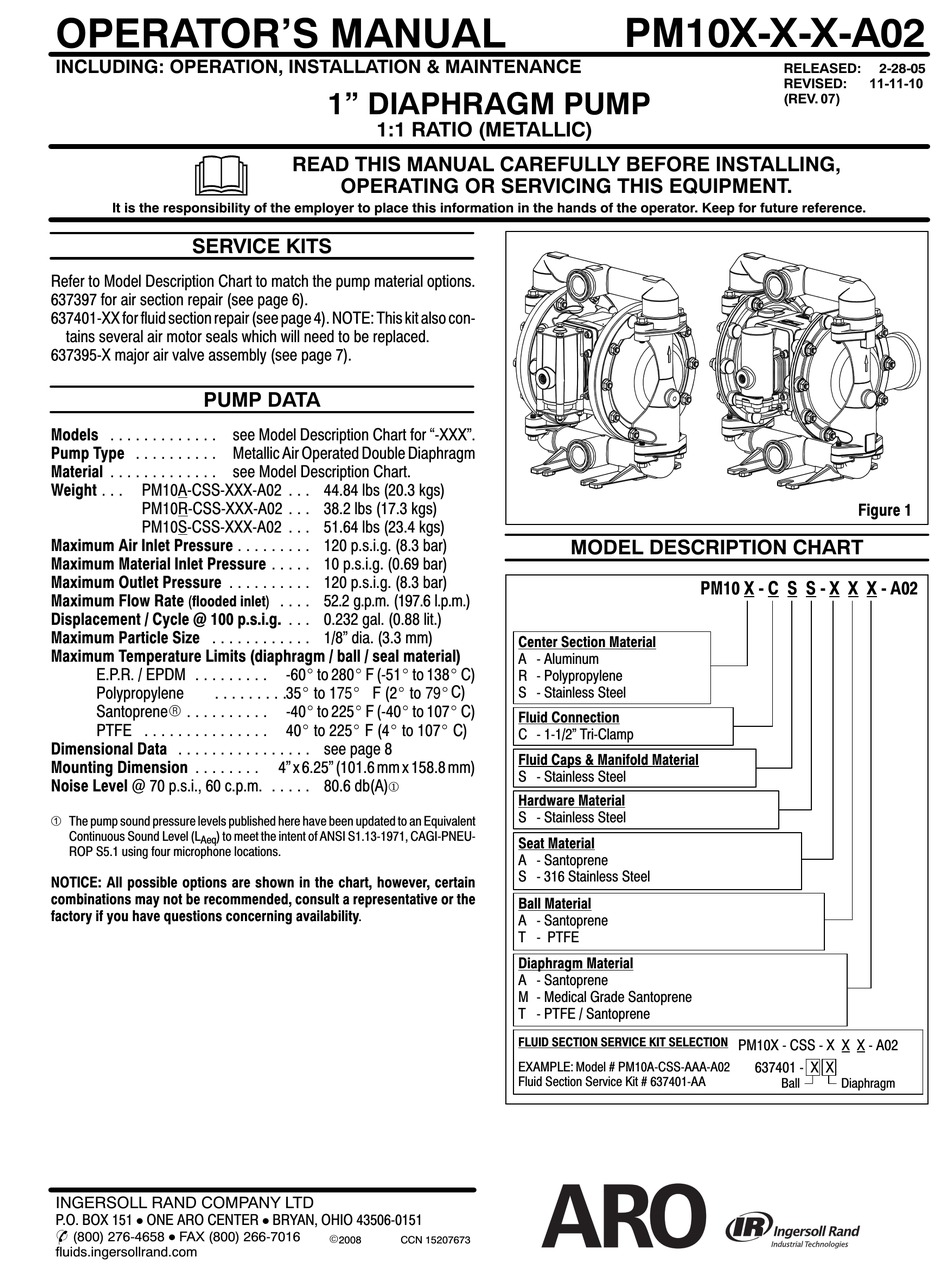

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637397 for air section repair (see page 6).
637401-XX for fluid section repair (see page 4). NOTE: This kit also con-
tains several air motor seals which will need to be replaced.
637395-X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . . .
Pump Type . . . . . . . . . .
Material . . . . . . . . . . . . .
Weight . . . PM10A-CSS-XXX-A02
PM10R-CSS-XXX-A02
PM10S-CSS-XXX-A02
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . .
Polypropylene . . . . . . . . .
SantopreneR . . . . . . . . . .
PTFE . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
P.O. BOX 151 D ONE ARO CENTER
D
(800) 276-4658 FAX (800) 266-7016
fluids.ingersollrand.com

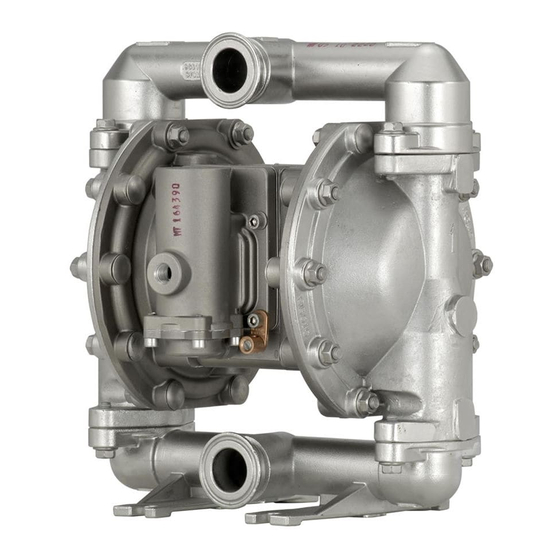

1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
see Model Description Chart for "-XXX".
Metallic Air Operated Double Diaphragm
see Model Description Chart.
. . . 44.84 lbs (20.3 kgs)
. . . 38.2 lbs (17.3 kgs)
. . . 51.64 lbs (23.4 kgs)
. . . . . . . . . 120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
. . . . 52.2 g.p.m. (197.6 l.p.m.)
. . . 0.232 gal. (0.88 lit.)
1/8" dia. (3.3 mm)
-60_ to 280_ F (-51_ to 138_ C)
35_ to 175_ F (2_ to 79_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
see page 8
4" x 6.25" (101.6 mm x 158.8 mm)
. . . . .
80.6 db(A)
D BRYAN, OHIO 43506-0151
E
2008 CCN 15207673
PM10X-X-X-A02
MODEL DESCRIPTION CHART
Center Section Material
A - Aluminum
R - Polypropylene
S - Stainless Steel
Fluid Connection
C - 1-1/2" Tri-Clamp
Fluid Caps & Manifold Material
S - Stainless Steel
Hardware Material
S - Stainless Steel
Seat Material
A - Santoprene
S - 316 Stainless Steel
Ball Material
A - Santoprene
T - PTFE
Diaphragm Material
A - Santoprene
M - Medical Grade Santoprene
T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PM10A-CSS-AAA-A02
Fluid Section Service Kit # 637401-AA
RELEASED: 2-28-05
11-11-10
REVISED: 5-19-10
07)
(REV. 06)
Figure 1
PM10 X - C S S - X X X - A02
PM10X - CSS - X X X - A02
637401 - X X
Ball Diaphragm
