OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637427-XX for fluid section repair (see page 5).
637428 for air section repair (see page 7).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . Air Operated Double Diaphragm
Material . . . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.40 lbs (6.53 kgs)
Maximum Air Inlet Pressure . . . . . 100 psig (6.9 bar)
Maximum Material Inlet Pressure 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . 100 psig(6.9 bar)
Air Consumption @ 40 psig . . . . . . . 1 cfm / gallon (approx.)
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig . 0.039 gal. (0.15 lit.)
Maximum Particle Size . . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits (Diaphragm / Ball / Seat
material)
E.P.R. / EPDM . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . . 32° to 175° F (0° to 79° C)
Santoprene® . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . see page 9
Noise Level @ 70 psig, 60 cpm . 75.0 dB(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
12.0 gpm (45.4 lpm)
) to meet the intent of ANSI
eq
© 2021
CCN 15282379
PM05R-XXX-XXX-BXX

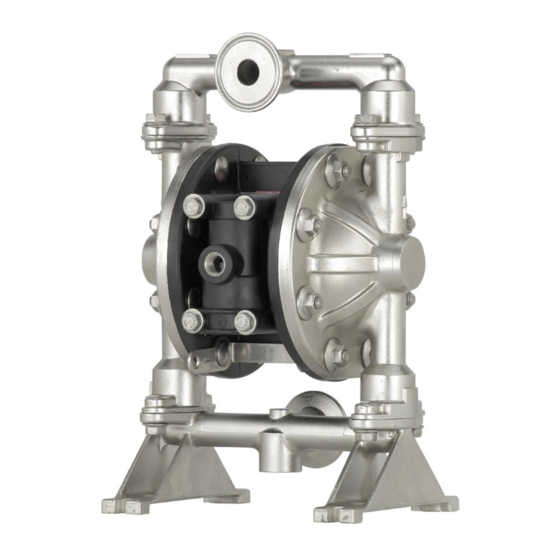

Figure 1
RELEASED:
9-20-07
REVISED:
7-23-21
(REV: L)
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand ARO PM05R-B Series
Summary of Contents for Ingersoll-Rand ARO PM05R-B Series

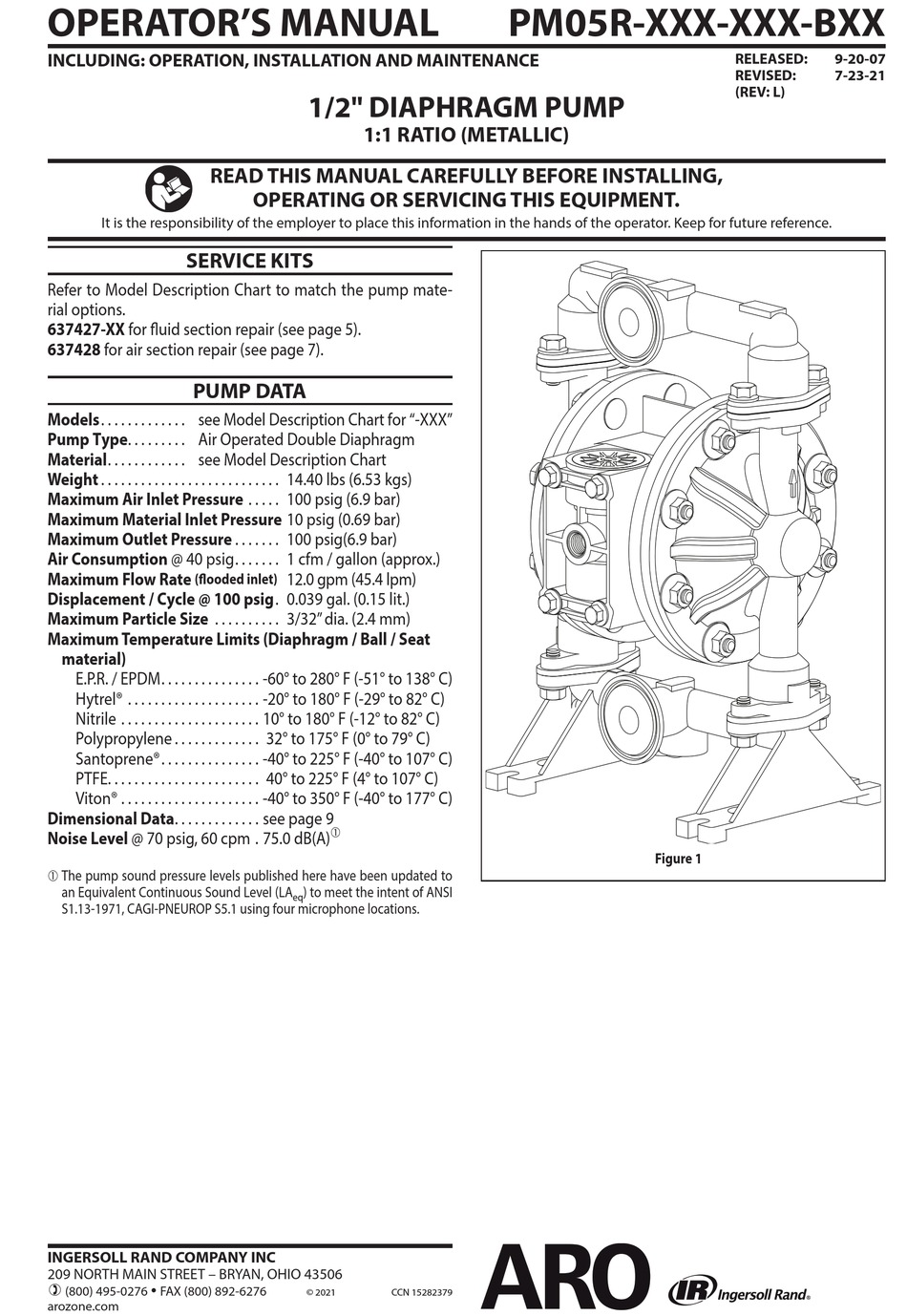

- Page 1 OPERATOR’S MANUAL PM05R-XXX-XXX-BXX INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 9-20-07 REVISED: 7-23-21 (REV: L) 1/2" DIAPHRAGM PUMP 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS Refer to Model Description Chart to match the pump mate- rial options.
-
Page 2: Model Description Chart
MODEL DESCRIPTION CHART Model Code Explanation PM05 Center Body Material R - Polypropylene Fluid Connection C- Sanitary Flange Fluid Caps and Manifold Material Stainless Steel Hardware Material Stainless Steel Seat Material Stainless Steel Ball Material M- Medical Grade Santoprene Stainless Steel PTFE Diaphragm Material Long Life PTFE... -
Page 3: Operating And Safety Precautions
OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. / or carefully and slowly loosening and removing out- EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS let hose or piping from pump. STATIC SPARK HAZARDOUS PRESSURE HAZARDOUS MATERIALS. -
Page 4: General Description
Loctite® and 242® are registered trademarks of Henkel Loctite Corporation y ARO® is a registered trademark of Ingersoll-Rand Company y y Santoprene® is a registered trademark of ExxonMobil y Lubriplate® is a registered trademark of Lubriplate Lubricants Company y... -
Page 5: Typical Cross Section
PARTS LIST / PM05R-XXX-XXX-BXX FLUID SECTION 637427-XX Fluid Section Service Kits include: Balls (see Ball Option, refer to -XX in chart below), Diaphragms (see Diaphragm Option, refer to -XX in chart below), and item 19 (listed below) plus items 144, 174 and 94276 Lubriplate® FML-2 grease (page 7). SEAT OPTIONS BALL OPTIONS PM05R-CSS-XXX-BXX... - Page 6 PARTS LIST / PM05R-XXX-XXX-BXX FLUID SECTION COLOR CODE FOR THE AIR MO- Diaphragm Ball TOR SECTION, SEE Material Color Color PAGES 7 AND 8. PTFE White White Santoprene Santoprene Green (Backup) 26 Torque Sequence 27 1 14 ...
- Page 7 PARTS LIST / PM05R-XXX-XXX-BXX AIR MOTOR SECTION Indicates parts included in 637428 air section repair kit. AIR MOTOR PARTS LIST Item Description (Qty) Part No. [Mtl] Item Description (Qty) Part No. [Mtl] (size) (size) 101 Center Body (1) 97006 [PPG] 140 Valve Insert (1) 93276...
-
Page 8: Major Valve Disassembly
PARTS LIST / PM05R-XXX-XXX-BXX AIR MOTOR SECTION PILOT VALVE PARTS 637438 (optional) 144 169 168 171 201 (optional) 123 103L 173 174 137 166 144 103R 134 123 ... -
Page 9: Troubleshooting
TROUBLESHOOTING Product discharged from air exhaust. Low output volume. Check for diaphragm rupture. Check air supply. Check tightness of (14) bolt. Check for plugged outlet hose. For the pump to prime itself, it must be mounted in the Air bubbles in product discharge. vertical position so that the balls will check by gravity. - Page 10 Page 10 of 12 PM05R-XXX-XXX-BXX (en)
- Page 11 PM05R-XXX-XXX-BXX (en) Page 11 of 12...
- Page 12 PN 97999-1255 Page 12 of 12 PM05R-XXX-XXX-BXX (en)
