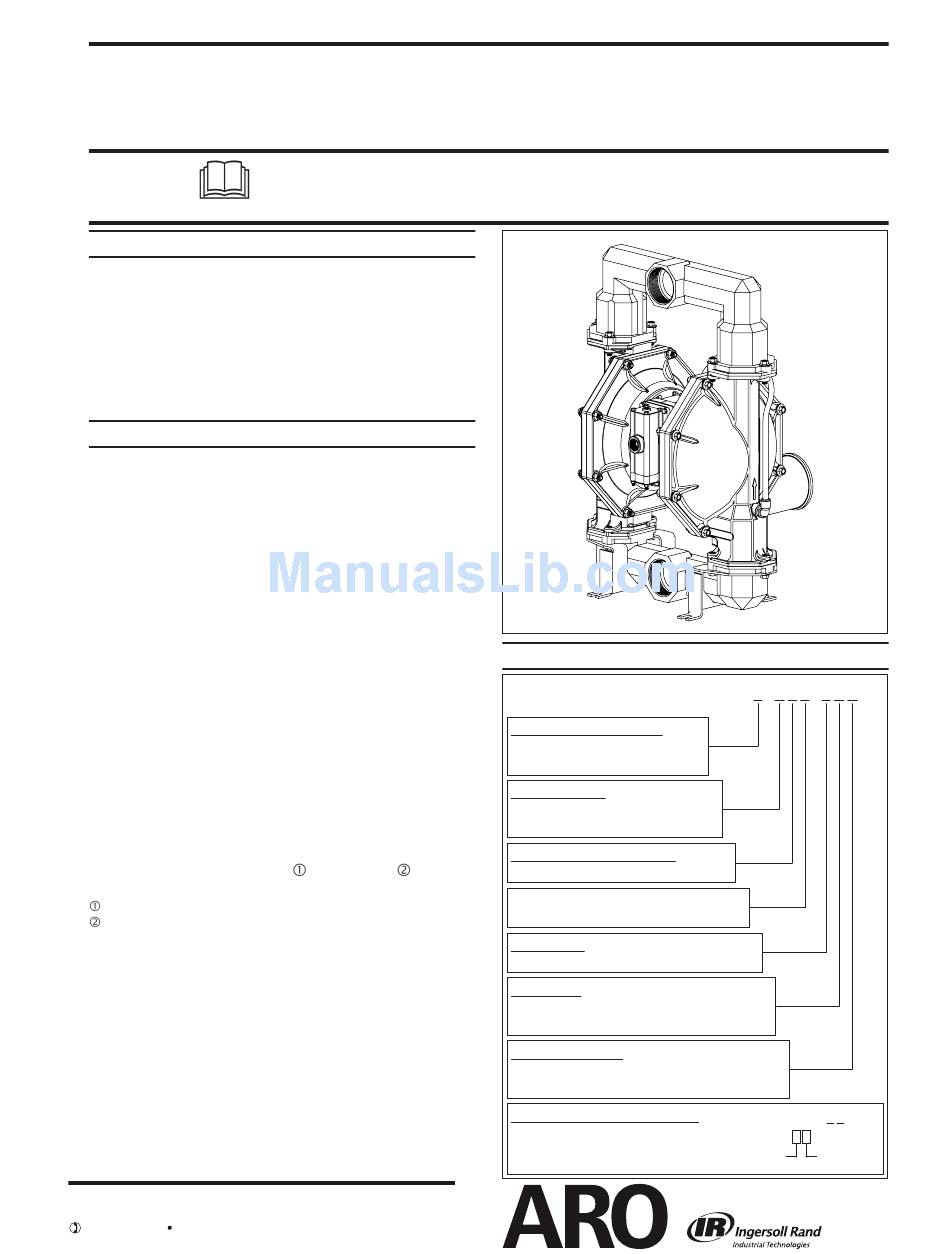

Ingersoll-Rand PH30F-XXX-XXX-C Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

SERVICE KITS

Refer to Model Description Chart to match the pump mate-
rial options.
637441-XX for fl uid section repair (see page 4). NOTE: This kit
also contains several air motor seals which will need to be
replaced.
637369 for air section repair (see page 6).
637374-6 major air valve assembly (see page 7).

PUMP DATA

Models . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . see Model Description Chart
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268 lbs (121.6 kgs)
Maximum Air Inlet Pressure . . . . . . . 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . 200 p.s.i.g. (13.8 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . 150 g.p.m. (567.8 l.p.m.)
fl ooded inlet . . . . . . . . . . . 160 g.p.m. (605.6 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. 1.4 gal. (5.3 lit.)
Maximum Particle Size . . . . . . . . . . . . 3/8" dia. (9.5 mm)
Maximum Temperature Limits (diaphragm / ball / seal
material)
E.P.R. / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Nitrile . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 50 c.p.m.
Tested with 67263 muffl er assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com
3" DIAPHRAGM PUMP
2:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . 83.0 db(A)
) to meet the intent of ANSI
Aeq
CCN 15307648
© 2010
PH30F-XXX-XXX-C
MODEL DESCRIPTION CHART
Air Motor / Air Cap Material
F - Conductive Polypropylene
/ Stainless Steel
Fluid Connection
A - 3 - 8 N.P.T.F. - 1
B - Rp 3 (3 - 11 BSP parallel)
Fluid Cap & Manifold Material
S - Stainless Steel
Hardware Material
P - Plated Steel
Seat Material
S - Stainless Steel
Ball Material
A - Santoprene T - PTFE
C - Hytrel V - Viton
Diaphragm Material
A - Santoprene T - PTFE / Santoprene
C - Hytrel
Fluid Section Service Kit Selection
EXAMPLE: Model #PH30F-ASP-SAA-C
Fluid Section Service Kit # 637441-AA
RELEASED: 5-28-08
REVISED: 10-19-11
(REV. 05)
Figure 1
PH30F - X S P - S X X - C
PH30F - ASP - S X X - C
637441 - X X
Ball Diaphragm
