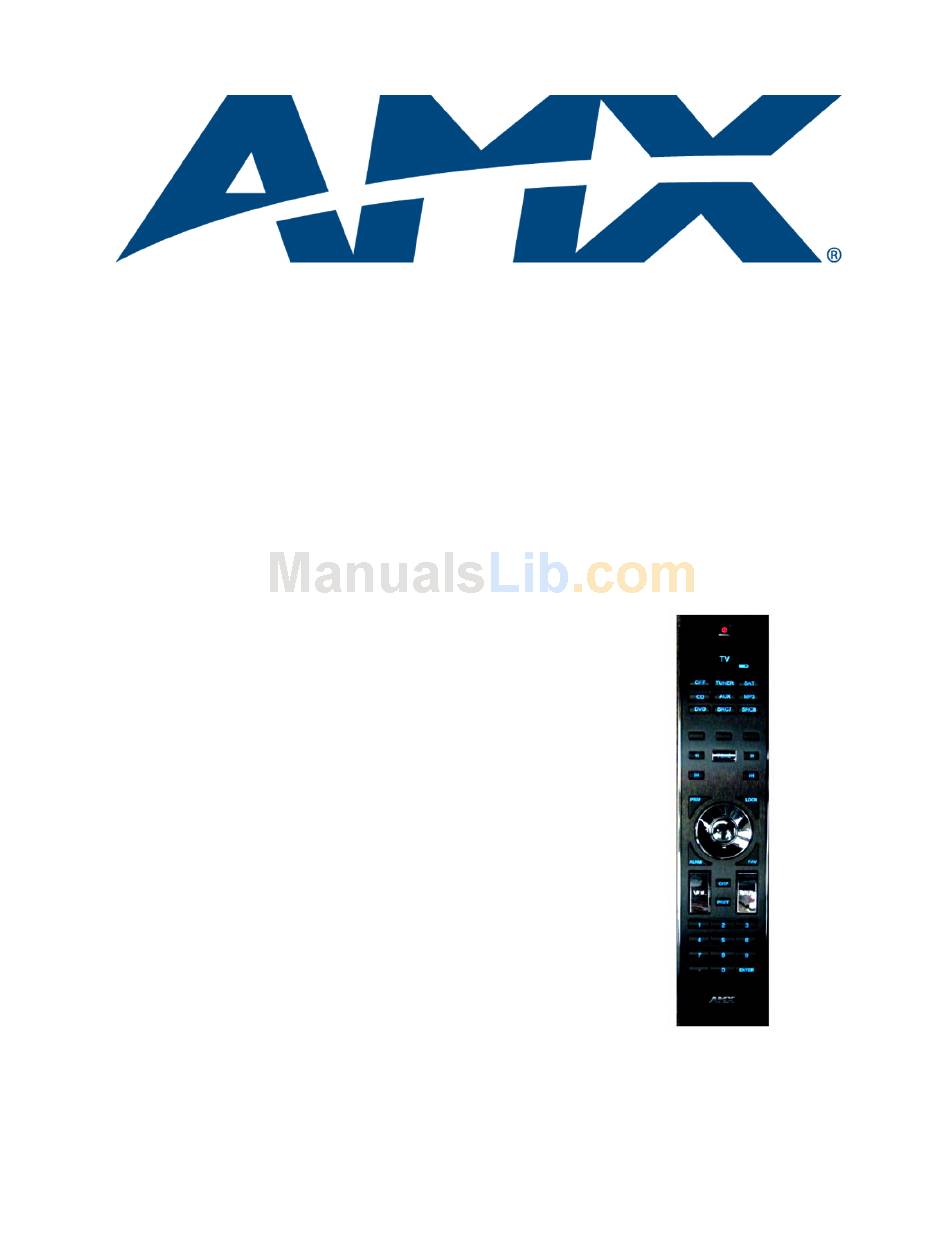

- Page 1 Operation/Reference Guide MIO R-1 AUDIO Tango Distributed Audio Remote Control D i s t r i b u t e d A u d i o I n i t i a l R e l e a s e : 2 / 1 9 / 2 0 0 8...
- Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.
-
Page 3: Table Of Contents
Table of Contents Overview ...1 Specifications... 2 Touch And Tilt Sensor... 2 MIO R-1 AUDIO Setup ...3 Installing Your Custom Buttons... 3 Inserting Batteries into the MIO R-1 AUDIO... 3 Battery Low Indicator ... 4 Programming The MIO R-1 AUDIO ...5 Using Connector Ports on The MIO R-1 AUDIO... - Page 4 Table of Contents Satellite and Other ... 17 Custom XM ... 18 Direct Numeric Access ... 18 Tuners... 18 CD Player / Changer... 18 Satellite Radio/video ... 18 Presets ... 19 Creating a Preset... 19 Recalling a Preset ... 19 Clearing All Presets ...
-
Page 5: Overview
Selecting a macro will run predefined events, which might not be associated with sources listed, then return the device to its previous mode. You will need KeypadBuilder to properly program this device. The application and documentation are available from www.amx.com. FIG. 1 MIO R-1 AUDIO remote controller... -
Page 6: Specifications
4 AAA Alkaline Batteries (included) - approx. 5 hours battery life AMX 38 KHz/455 KHz IR Note: The Metreau MET-6N keypads only support 38 KHz. When used with MET- 6N keypads, the MIO R-1 AUDIO must be set to 38 KHz. -
Page 7: Mio R-1 Audio Setup
MIO R-1 AUDIO Setup Installing Your Custom Buttons 1. Flip and turn the MIO R-1 AUDIO so that the buttons are facing away from you and the device is upside down. 2. Holding the device in both hands, place your thumbs on the battery door and push up to slide the battery door free. -
Page 8: Battery Low Indicator
MIO R-1 AUDIO Setup Battery Low Indicator When the battery charge level is too low to sustain continuous operation, the LCD flashes, "Battery Low" and the device shuts down. MIO R-1 AUDIO... -
Page 9: Programming The Mio R-1 Audio
2.5 mm stereo jack, you can order the programming cable (FG10- 817) from AMX if you do not currently possess one. While loading your configuration file make sure the device is situated as such that the batteries will not fall out. The load will fail if your batteries fall out during the process. -
Page 10: Ir Code Matrix
Programming The MIO R-1 AUDIO IR Code Matrix The IR Code emitted depends upon which of the 6 configurable modes is selected. Below is the list of codes for each button within each mode. IR Code Matrix Button Label Power Symbol GUIDE EXIT MENU... -
Page 11: Configuration Mode
IR Code Matrix (Cont.) Button Label S. REV Z PLAY A S. FWD Y REW E FWD D Configuration Mode The configuration mode allows you to set the following device features: IR Transmit Mode (38 KHz or 455 KHz) Timeout Adjustment Download Mode Debug Mode Battery Type... -
Page 12: Debug Mode
Programming The MIO R-1 AUDIO Debug Mode Pressing button "4" on the remote toggles development mode between ON and OFF. The display indicates the selected mode. In development mode, the display shows the IR code assigned to buttons when pressed. This mode is useful to the programmer when determining what IR codes are associated to each mode. -
Page 13: Updating Mio R-1 Audio Firmware
Updating MIO R-1 AUDIO Firmware Updating firmware in the MIO R-1 AUDIO is also done through the programming jack. To update the main firmware for the MIO R-1 AUDIO: 1. Connect the MIO R-1 AUDIO to your computer via the programming jack (FIG. 3). 2. -
Page 14: Persistent Serial Commands
Programming The MIO R-1 AUDIO Persistent Serial Commands There are a select number of persistent commands the MIO R-1 AUDIO recognizes. Establish a HyperTerminal session with your device to use the following commands: Serial Commands @BRT IRMODE # SLEEP-# Set Brightness level Syntax: "'BRIT-<awake brightness level>,<sleep brightness level>'"... -
Page 15: Mio Remote Charging Base
MIO Remote Charging Base The MIO remotes are complemented either with a MIO-RCC charging base (FG147-02) or the MIO-RCC rechargeable upgrade kit (FG147-03K). One charging base, a new back housing and a MIO-RBP rechargeable lithium ion battery (FG147-10) are included with the rechargeable upgrade kit. The charging base upgrade kit transforms the MIO R-1, R-2 and R-3 into a rechargeable device. -
Page 16: Installing The Rechargeable Battery
Dimensions (HWD) Weight Included Items: Other AMX Equipment: • MIO-RCC Charging Base (FG147-02) with Power Supply Installing The Rechargeable Battery 1. Flip and turn the MIO R-1 so that the buttons are facing away from you and the device is upside down. -
Page 17: Charging The Mio Remote With Charging Base
5. Remove the back housing. 6. Place the new housing on the device so that the rechargeable battery port connection is now accessible. See FIG. 8. 7. Replace the 6 screws. 8. Connect the terminal end of the Lithium-Ion battery to the port shown in FIG. 8. It may be necessary to use a thin, blunt object to fully seat the battery connector within its port. -
Page 18: Changing Battery Modes
MIO Remote Charging Base Changing Battery Modes Configuration Mode The Configuration mode allows you to set the battery type. To enter Configuration mode: 1. Press and hold the STOP button and the INPUT button simultaneously. The two buttons must be pressed within 0.1 seconds of each other and held down for 2 seconds. -
Page 19: Using The Mio R-1 Audio Remote
Using the MIO R-1 AUDIO Remote Tone Control & SRS Setting To access the Tone Control and SRS settings, press the TONE button (FIG. 1). This enables the Tone Control Mode with BASS as the first mode selected. FIG. 1 TONE button There are 3 Tone Control Modes available for adjustment, and 4 SRS options, as follows: BASS: Increase / Decrease from -10dB to +10dB (Up/Down NAV buttons) -
Page 20: Privacy Mode
Using the MIO R-1 AUDIO Remote Privacy Mode When the privacy feature is engaged, the room/zone cannot be paged, apart from this, the room/zone will function normally. To use the privacy feature in a specific zone, the keypad must be OFF (no sources selected) To engage Privacy mode, press the Privacy (PRIV) button. -
Page 21: Source Control
Pressing Source Buttons switches between sources and turns the Source On, but does not toggle between ON and OFF. Source Control NAV Up NAV Left NAV Down FIG. 5 NAV array Internal Tuner and Audio Server NAV Button NAV Up NAV Down NAV Left NAV Right... -
Page 22: Custom Xm
Using the MIO R-1 AUDIO Remote Custom XM Direct Numeric Access "Dot" button FIG. 6 Direct Numeric Access buttons Tuners Enter the station identification and press ENTER. Strings of 3 to 4 numbers are recognized. If a " • " (dot) is part of the string, then an FM station is assumed, otherwise an AM station is assumed. -
Page 23: Presets
Presets Preset (PSET) button FIG. 7 Preset (PSET) button Creating a Preset Select the source. Direct Tune to the station of choice (enter station ID + ENTER). Select the "PSET" button. Key in the preset number (1 - 10). Press & Hold ENTER. Example: Tune to 1050AM;... -
Page 24: Zone Grouping
Using the MIO R-1 AUDIO Remote Zone Grouping In this state, zones can be "grouped" together and controlled as a single zone. Press the "GRP" button to enter "Group Mode". Group (GRP) button FIG. 8 Group (GRP) button Adding a Zone To a Group Press the "GRP"... -
Page 25: Favorites
Favorites One "favorite" can be programmed for each Source, in each Zone. If a "favorite" is set for a specific source in a specific zone, when that source is turned on (after System has been OFF), the favorite will begin playing in that zone. FIG. -
Page 26: Alarm
Using the MIO R-1 AUDIO Remote Alarm When the alarm time is reached, the source selected will turn ON and the volume will ramp up to the set volume and begin playing. At this point the source will behave normally. FIG. -
Page 27: Keypad Lockout
Keypad Lockout FIG. 11 Lockout (LOCK) button Locking A Specific Keypad Press "LOCK" button. Enter the room/zone # to lock. Press ENTER. Unlocking A Specific Keypad Press "LOCK" button. Enter the room/zone # to UNLOCK. Press & Hold ENTER. Examples: Press "LOCK"... - Page 28 Using the MIO R-1 AUDIO Remote MIO R-1 AUDIO...
- Page 29 Using the MIO R-1 AUDIO Remote MIO R-1 AUDIO...
- Page 30 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
