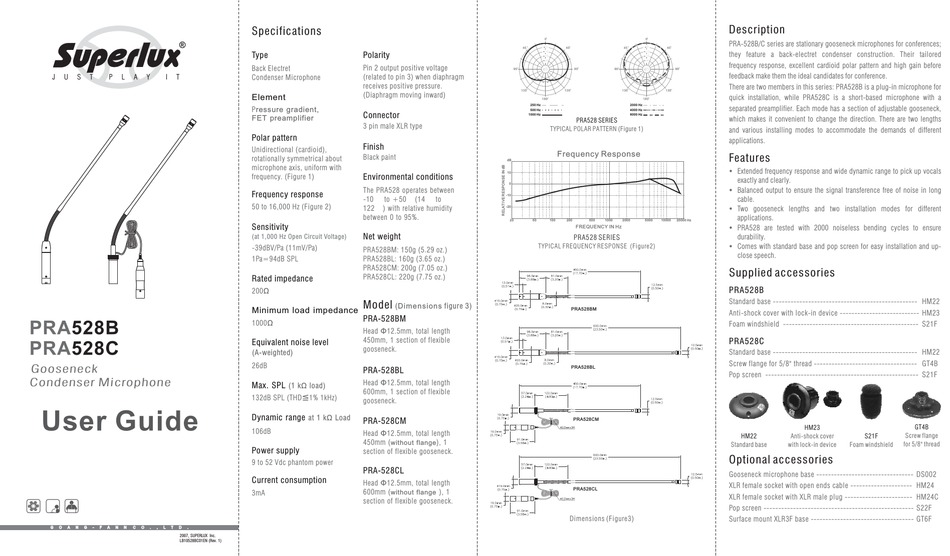

Superlux PRA528B User Manual

J U S T P L A Y I T
PRA528B
PRA528 C
Gooseneck
Condenser Microphone

User Guide

G O A N G - F A N N C O . , L T D .
2007, SUPERLUX I
LB10528BC01EN (Rev. 1)
Specifications
Type Polarity
Pin 2 output positive voltage
Back Electret
(related to pin 3) when diaphragm
Condenser Microphone
receives positive pressure.
(Diaphragm moving inward)
Element
Pressure gradient,
Connector
FET preamplifier
3 pin male XLR type
Polar pattern
Finish
Unidirectional (cardioid),
Black paint
rotationally symmetrical about
microphone axis, uniform with
frequency. (Figure 1) Environmental conditions
The PRA528 operates between
Frequency response
-10 to +50
50 to 16,000 Hz (Figure 2)
122 ) with relative humidity
between 0 to 95%.
Sensitivity
(at 1,000 Hz Open Circuit Voltage) Net weight
-39dBV/Pa (11mV/Pa)
PRA528BM: 150g (5.29 oz.)
PRA528BL: 160g (3.65 oz.)
1Pa=94dB SPL
PRA528CM: 200g (7.05 oz.)
PRA528CL: 220g (7.75 oz.)
Rated impedance
200Ω
Model
Minimum load impedance
PRA-528BM
1000Ω
Head 12.5mm, total length
Φ
450mm, 1 section of flexible
Equivalent noise level
gooseneck.
(A-weighted)
26dB
PRA-528BL
Head Φ 12.5mm, total length
Max. SPL
(1 k Ω load)
600mm, 1 section of flexible
≦
132dB SPL (THD 1% 1kHz)
gooseneck.
Dynamic range
at 1 k Ω Load
PRA-528CM
106dB
Head Φ 12.5mm, total length
450mm (
Power supply
section of flexible gooseneck.
9 to 52 Vdc phantom power
PRA-528CL
Current consumption
Head 12.5mm, total length
Φ
600mm (
3mA
section of flexible gooseneck.
nc.
250 Hz
500 Hz
1000 Hz
TYPICAL POLAR PATTERN (Figure 1)
Frequency Response
dB
10
0
-10
(14 to
-20
20 50 100 200
TYPICAL FREQUENCY RESPONSE (Figure2)
( figure 3)
Dimensions
PRA528BM
PRA528BL
), 1
without flange
), 1
without flange
Dimensions (Figure3)
Description

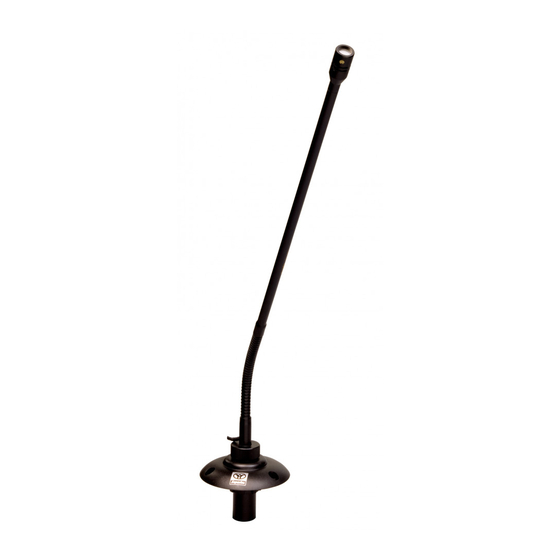

PRA-528B/C series are stationary gooseneck microphones for conferences;
they feature a back-electret condenser construction. Their tailored
frequency response, excellent cardioid polar pattern and high gain before
feedback make them the ideal candidates for conference.
There are two members in this series: PRA528B is a plug-in microphone for
quick installation, while PRA528C is a short-based microphone with a
2000 Hz
separated preamplifier. Each mode has a section of adjustable gooseneck,
4000 Hz
8000 Hz
which makes it convenient to change the direction. There are two lengths
PRA528 SERIES
and various installing modes to accommodate the demands of different
applications.
Features
?
Extended frequency response and wide dynamic range to pick up vocals
exactly and clearly.
?
Balanced output to ensure the signal transference free of noise in long
cable.
?
Two gooseneck lengths and two installation modes for different
applications.
500 1000 2000 5000 10000 20000 Hz
?
FREQUENCY IN Hz PRA528 are tested with 2000 noiseless bending cycles to ensure
durability.
PRA528 SERIES
?
Comes with standard base and pop screen for easy installation and up-
close speech.
Supplied accessories
PRA528B
Standard base --------
Anti-shock cover with lock-in device ------ ------------------- HM23
Foam windshield ------------
PRA528C
Standard base --------
Screw flange for 5/8" thread ------
P op screen
PRA528CM
HM22
Standard base
Optional accessories
Gooseneck microphone base --------------------------------- DS002
XLR female socket with open ends cable --------
PRA528CL
XLR female socket with XLR male plug ------------ --------- HM24C
Pop screen --------------------------------------------------- S22F
Surface mount XLR3F base ---------------- ------------------ GT6F
------------------------------ ----------- HM22
--
------------------------------ ---- S21F
------------------------------ ----------- HM22
-------------- --------------- GT4B
--------- --------------------------------------- ---- S21F
GT4B
HM23
Anti-shock cover S21F Screw flange
with lock-in device Foam windshield for 5/8" thread
------ ------- HM24
--
-
