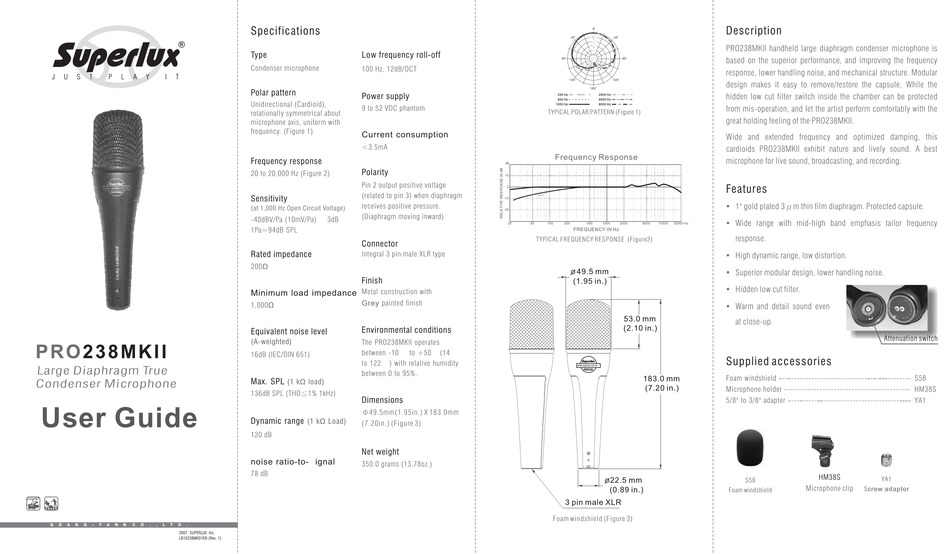

Superlux PRO238MKII User Manual

J U S T P L A Y I T
P R O 2 3 8 M K I I
Large Diaphragm True
Condenser Microphone
User Guide
G O A N G - F A N N C O . , L T D .
2007, SUPERLUX I nc.
LB10238MK01EN (Rev. 1)
Specifications
Type Low frequency roll-off
Condenser microphone
100 Hz, 12dB/OCT
Polar pattern
Power supply
Unidirectional (Cardioid),
9 to 52 VDC phantom
rotationally symmetrical about
microphone axis, uniform with
frequency. (Figure 1)
Current consumption
<3.5mA
Frequency response
Polarity
20 to 20,000 Hz (Figure 2)
Pin 2 output positive voltage
(related to pin 3) when diaphragm
Sensitivity
receives positive pressure.
(at 1,000 Hz Open Circuit Voltage)
(Diaphragm moving inward)
-40dBV/Pa (10mV/Pa) 3dB
1Pa=94dB SPL
Connector
Rated impedance
Integral 3 pin male XLR type
200Ω
Finish
Metal construction with
Minimum load impedance
Grey painted finish
1,000Ω
Environmental conditions
Equivalent noise level
(A-weighted)
The PRO238MKII operates
between -10 to +50
16dB (IEC/DIN 651)
to 122 ) with relative humidity
between 0 to 95%.
Max. SPL (1 k load)
Ω
≦
136dB SPL (THD 1% 1kHz)
Dimensions
Φ49.5mm(1.95in.) X 183.0mm
Dynamic range
(1 k Ω Load)
(7.20in.) (Figure 3)
120 dB
Net weight
noise ratio-to- ignal
350.0 grams (13.78oz.)
78 dB
250 Hz 2000 Hz
500 Hz 4000 Hz
1000 Hz 8000 Hz
TYPICAL POLAR PATTERN (Figure 1)
Frequency Response
dB
10
0
-10
-20
20 50 100 200 500 1000
FREQUENCY IN Hz
TYPICAL FREQUENCY RESPONSE (Figure2)
49.5 mm
O
(1.95 in.)
(14
22.5 mm
O
(0.89 in.)
3 pin male XLR
Foam windshield (Figure 3)
Description

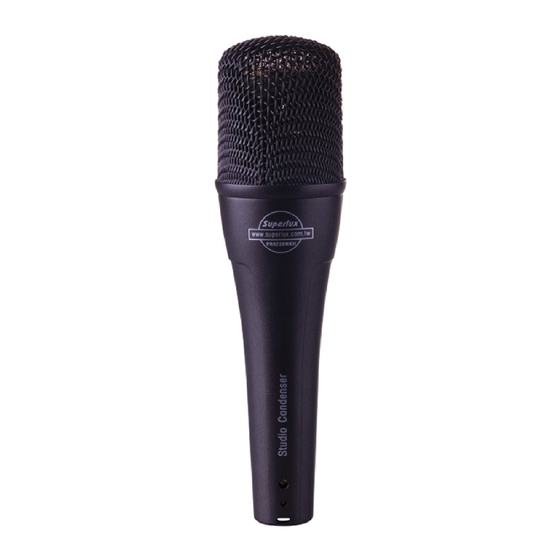

PRO238MKII handheld large diaphragm condenser microphone is
based on the superior performance, and improving the frequency
response, lower handling noise, and mechanical structure. Modular
design makes it easy to remove/restore the capsule. While the
hidden low cut filter switch inside the chamber can be protected
from mis-operation, and let the artist perform comfortably with the
great holding feeling of the PRO238MKII.
Wide and extended frequency and optimized damping, this
cardioids PRO238MKII exhibit nature and lively sound. A best
microphone for live sound, broadcasting, and recording.
Features
? μ
1" gold plated 3 m thin film diaphragm. Protected capsule.
?
Wide range with mid-high band emphasis tailor frequency
2000 5000 10000 20000 Hz
response.
?
High dynamic range, low distortion.
?
Superior modular design, lower handling noise.
?
Hidden low cut filter.
?
Warm and detail sound even
53.0 mm
at close-up.
(2.10 in.)
Supplied accessories
Foam windshield -- ----------------- - -
183.0 mm
(7.20 in.)
Microphone holder ---- --------------------------------- ---- HM38S
5/8" to 3/8" adapter - --- ----
S58
Foam windshield
Attenuation switch
-------- - - - - - --- -------- S58
--
- - -- ----- -------- ------ ----- -- ---- YA1
HM38S
YA1
Microphone clip
Screw adaptor
